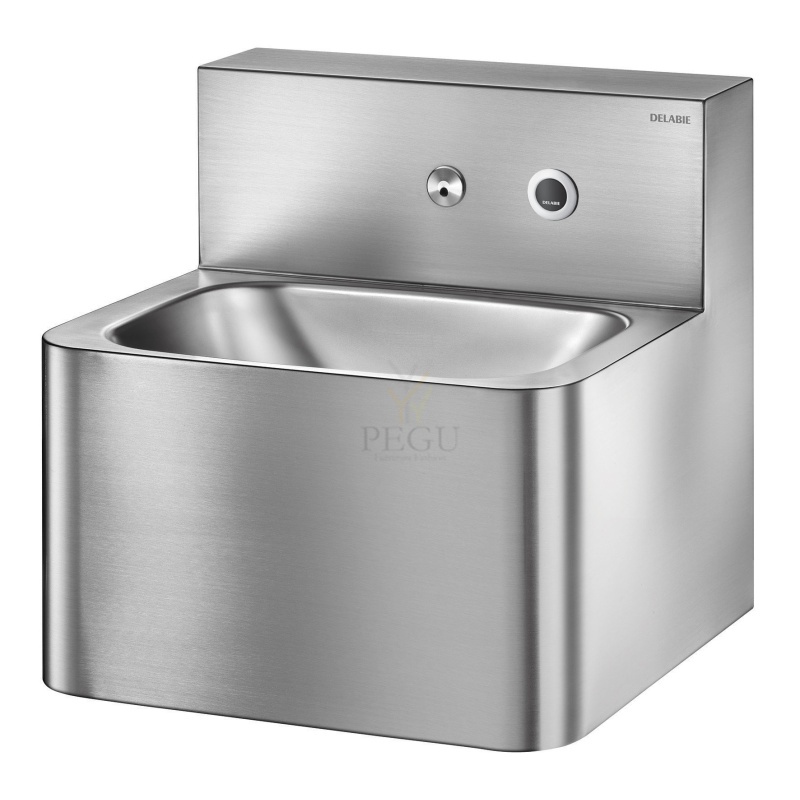

Delabie антивандальная раковина TEK нержавеющая сталь с электронным IR краном

Артикул: DE-161440
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
2069,00 €
Kuumakse alates: 175,87 €
Кол-во: - +
   - или -

TEK washbasin
Ref. 161440

Wall-mounted washbasin.
Bacteriostatic 304 stainless steel.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
Vandal-resistant: shrouded basin, concealed trap.
Supplied with 1 electronic tap: flow rate pre-set at 3 lpm, infrared presence detection, adjustable duty flush, 230/12V mains supply.
Recessed horizontal waste outlet Ø 32mm.
Flat perforated waste, without screws: easy to clean and vandal-resistant.
Without overflow.
Supplied with trap.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 8.3kg.

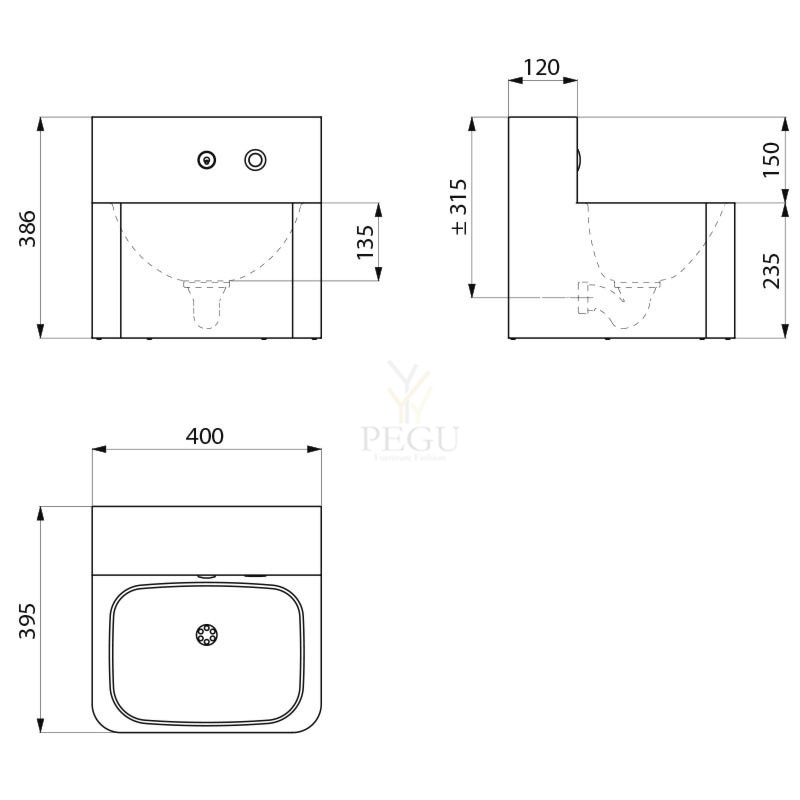

TECHNICAL FEATURES

TEK washbasin
Ref. 161440

Height 385mm
Length 395mm
Width 400mm
Thickness 1.2mm
Finish Polished satin 304 stainless steel

Файлы

Схожие продукты
WC рама с бачком и сливной системой , антивандальная с пластиной из Н/Р стали


BSAZ 5

Wall module construction for WC with vandal-resistant st.steel cover






BSAZ 5 is a wall module for wall mounted toilets equipped with anti-vandal stainless steel cover – with resistant stainless safety buttons. The cover is screwed by security bolts therefore it cannot be dismounted without special tools. The system is suitable for spaces where toilet flushing from a cistern is required but where, on the other hand, there is a threat of damaging of usual plastic covers. The robust anti-vandal stainless cover contains stainless control buttons resistant to damage (unlike the usual plastic buttons).



The cover of BSAZ 5 is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).








Version types
BSAZ 5 - Wall module construction for WC with vandal-resistant st.steel cover


Basic technical information
Dimensions of wall module: (1000–1200) × 510 × (160–200) mm
Dimensions of st.steel cover: 510 × 230 × 30 mm
Water inlet: G 1/2"
Outlet: DN 100


Requirements for setting up the construction
  1. Space for mounting the wall module
  2. Water inlet G 1/2"
  3. Waste pipe for outlet connection (DN 100)


Complete delivery
  • wall module with cistern
  • st.steel cover with vandal-proof buttons

Артикул: AZP-BSAZ 5 ,   Время доставки: 3-4 недели
1055,00 €

CANAL wall-mounted wash trough
Ref. 120260

Wall-mounted wash trough for 2-3 posts - L. 1,400mm
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1mm for the bowl, 1.5mm for surroundand fixing brackets.
Easy to install: no joint concealers to install, light wash trough.
Drainage on the right.
With no tap hole.
Supplied with 1 ½" waste.
Without overflow.
Supplied with brackets and fixing elements.
CE marked. Complies with European standard EN 14296.
Weight: 10kg.
Possible to add a bacteriostatic 304 stainless steel splashback (ref. 0011800003).

Артикул: DE-120260 ,   Время доставки: 14-21 день
898,00 €

DUO S TC L washbasin
Ref. 160370

Wall-mounted washbasin with through-the-wallinstallation for service ducts.
Integrated countertop.
Left hand basin.
Basin internal diameter: 310mm. Polished satin finish. Bacteriostatic 304 stainless steel.
Stainless steel thickness: 1.2mm
Rounded edges prevent injury.
Vandal-resistant: shrouded basin.
200mm threaded rod can be cut to size (other lengths are available on request).
Recessed horizontal waste outlet Ø 1".
Flat perforated waste, without screws:
easy cleaning and vandal-resistant.
Without overflow. Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 8.5kg.

Артикул: DE-160370 ,   Время доставки: 14-21 день
921,00 €

TEK TC washbasin
Ref. 160340

Wall-mounted washbasin, cross wall installation for service ducts.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
Vandal-resistant: shrouded basin.
200mm threaded rod can be cut to size (other lengths available on request.
Supplied with 1 time flow tap: stainless steel tamperproof push-button and anti-blocking, 7 seconds time flow.
Recessed horizontal waste outlet Ø 32mm.
Flat, perforated waste, without screws: easy to clean and vandal-resistant.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 9kg.

Артикул: DE-160340 ,   Время доставки: 14-21 день
1519,00 €
  • Mirror in robust, germ-reducing and easy-care stainless steel mirror sheet metal (AISI 304).
  • Mounting: With four Torx® locking screws.
  • Delivery includes fixing material.
  • Other dimensions available upon request.
  • Weight (in kg): 2,9
Артикул: WAG-WP601 ,   Время доставки: 14-21 день
202,83 € (5%)
213,50 €
