Delabie utiliseerimise põranda valamu Vidoir XL P R/V teras AISI304 182070 Zoom

Delabie утилизационная раковина напольная Vidoir XL P Н/Р сталь AISI304

Артикул: DE-182070
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
2182,20 €
Kuumakse alates: 185,49 €
Кол-во: - +

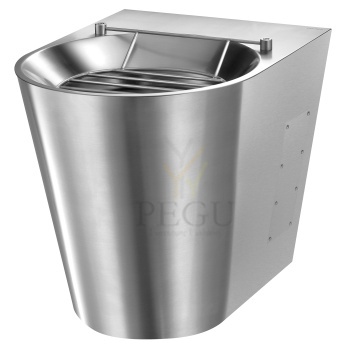

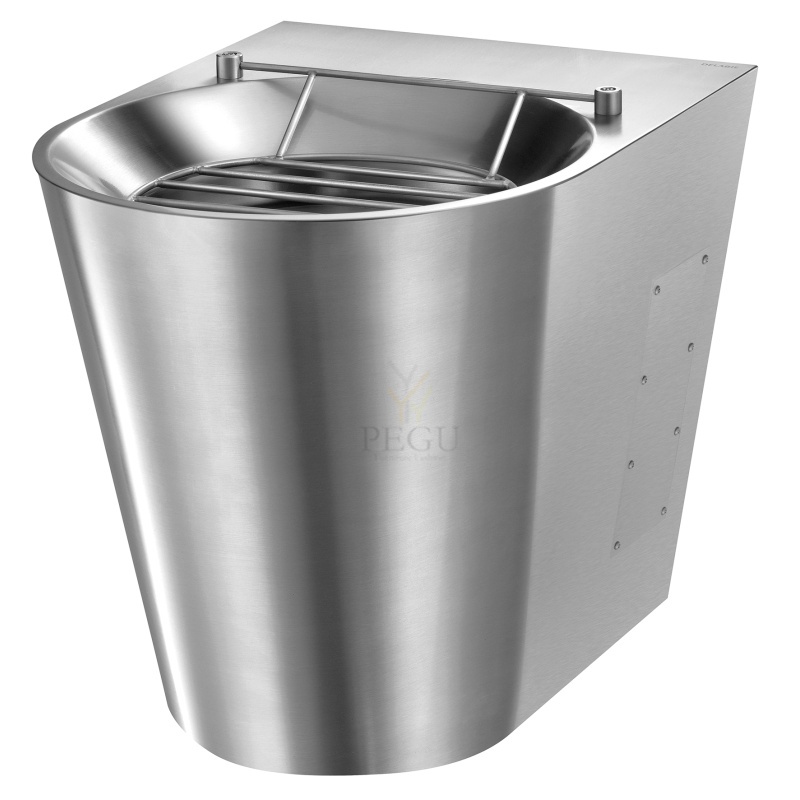

Floor-standing XL P disposal sink
Ref. 182070

Floor-standing disposal sink.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm.
Smooth surface is easy to clean.
Concealed perimetral flushing system.
Horizontal or vertical water inlet: Ø 55mm.
Horizontal or vertical water outlet: Ø 100mm.
Supplied with PVC pipe.
Concealed drainage: shrouded sink.
Quick and easy to install: 2 access panels
with theft prevention TORX security screws.
Hinged stainless steel bucket grid.
Weight: 16kg.

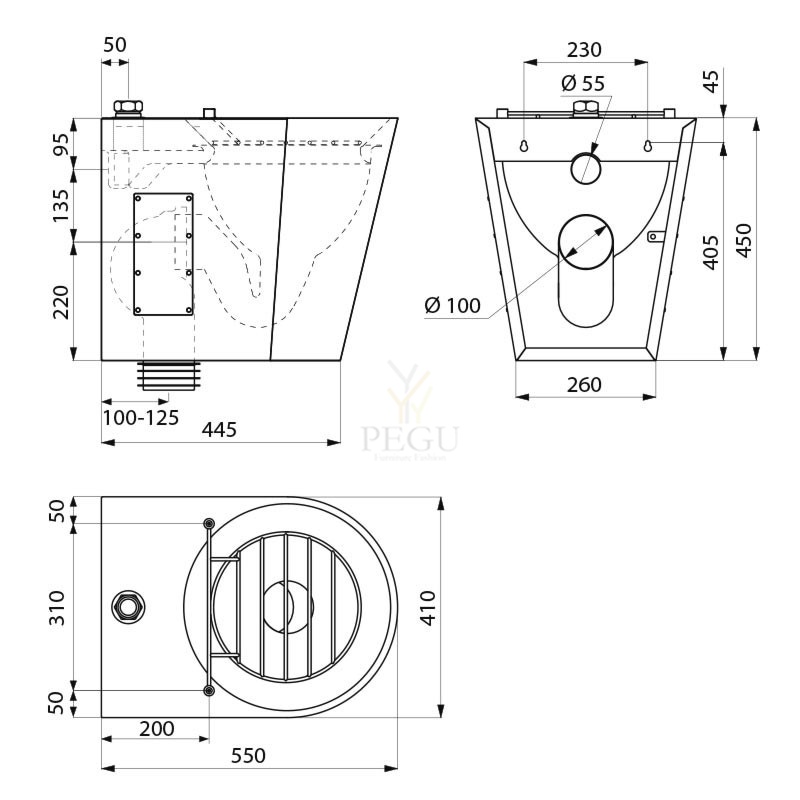

TECHNICAL FEATURES

Floor-standing XL P disposal sink
Ref. 182070

Height 450mm
Length 445mm
Width 410mm
Thickness 1.5mm
Finish 304 polished satin stainless steel
