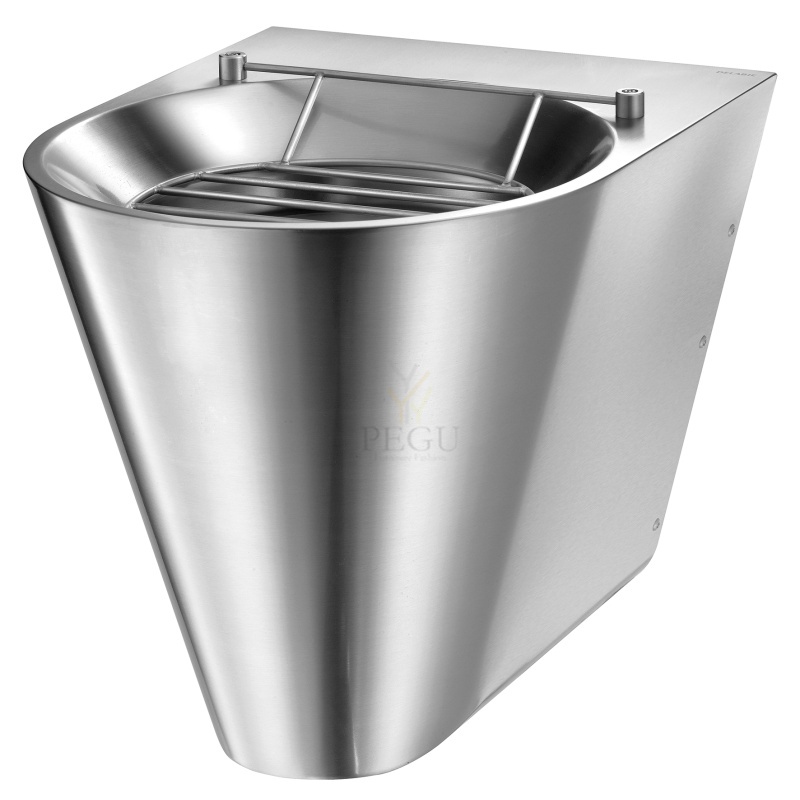

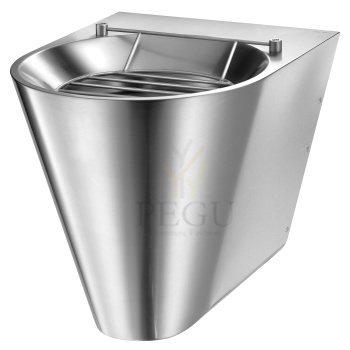

Delabie утилизационная раковина настенная Vidoir XL S Н/Р сталь AISI304

Артикул: DE-182160
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
2055,70 €
Kuumakse alates: 176,86 €
Кол-во: - +

Wall-mounted XL S disposal sink
Ref. 182160

Wall-mounted disposal sink.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm
Smooth surface for easy cleaning.
Concealed perimetral flushing system.
Horizontal water inlet: Ø 55mm.
Recessed horizontal waste outlet: Ø 100mm.
Concealed drainage: shrouded sink.
Quick and easy to install from the front thanksto a stainless steel mounting frame.
Hinged stainless steel bucket grid.
Supplied with fixing elements.
Weight: 15kg.

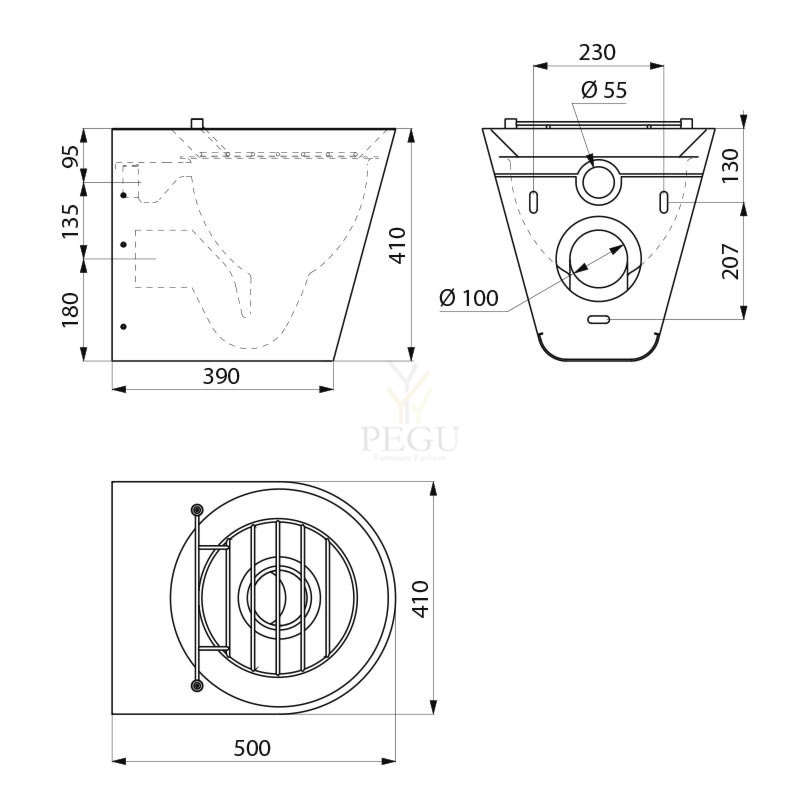

TECHNICAL FEATURES

Wall-mounted XL S disposal sink
Ref. 182160

Height 410mm
Length 500mm
Width 410mm
Thickness 1.5mm
Finish 304 polished satin stainless steel
