Delabie utiliseerimise valamu seinale Vidor R/V teras AISI304 180170 Zoom

Delabie утилизационная раковина настенная Vidor Н/Р сталь AISI304 180170

Артикул: DE-180170
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
651,00 €
Kuumakse alates: 55,34 €
Кол-во: - +

Delabie утилизационная раковина настенная Vidor Н/Р сталь AISI304 180170

Wall-mounted disposal sink
Ref. 180170

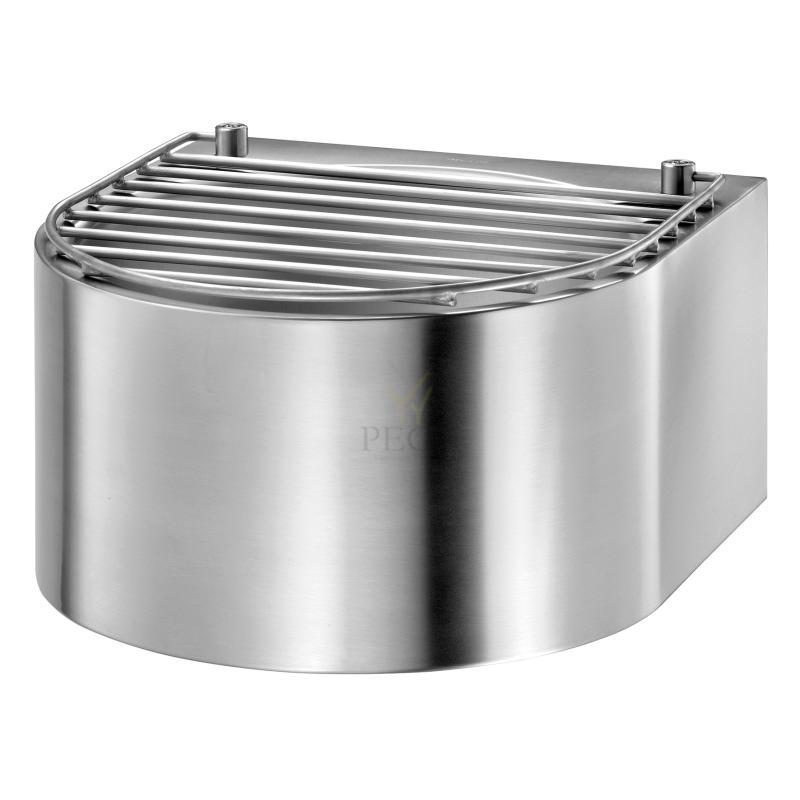

Wall-mounted disposal sink.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm
Smooth surface for easy cleaning.
Waste outlet 1 ¼". Waste not included.
Hinged stainless steel bucket grid.
Without overflow.
Supplied with fixing elements.
Weight: 5.1kg.

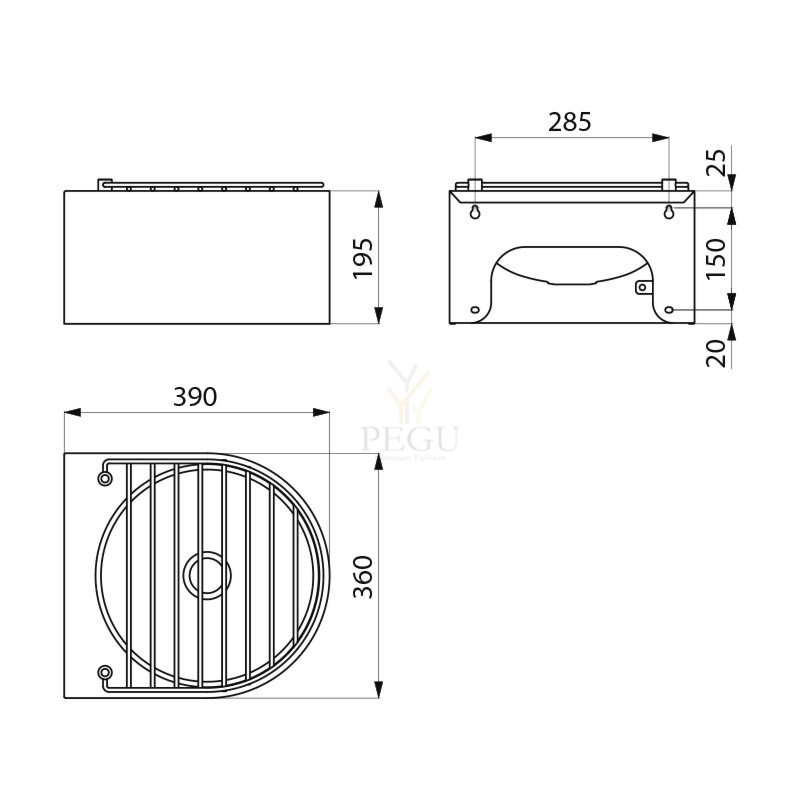

TECHNICAL FEATURES

Wall-mounted disposal sink
Ref. 180170

Height 195mm
Length 390mm
Width 360mm
Thickness 1.2mm
Finish 304 polished satin stainless steel

Файлы

Схожие продукты
SPECIFICATIONS
Temperature range: 0-80°C
Standard colour: black (other colours available on request )
Net weight: 0.5 kg
Dimensions: IN: 1½” BSP
OUT: 40mm (metric)
Height adjustable: telescopic bottle trap
Injection moulded from polypropylene copolymer resin, this anti-siphon bottle trap come with inlet of 1½” BSP, with black bowl.
PP BOTTLE TRAP
PRODUCT NUMBER 97B0040
PRODUCT NUMBER 97B0023
SPECIFICATIONS
Temperature range: 0-80°C
Standard colour: black (other colours available on request )
Net weight: 0.5 kg
Dimensions: IN: 1½” BSP
OUT: 40mm (metric)
Injection moulded
Артикул: B-97B0040 ,   Время доставки: 2-3 nädalad ,   Viimistlus:
63,02 €

Portinox WC подвесной INS-535-OVC + сидение махагон

Нержавеющая сталь

Артикул: PINS-535-OVC+PWC-Wood-mahagon ,   Время доставки: 8 недель ,   Viimistlus:
1824,43 €
Антивандалльная душевая пьезо кнопка Н/Р сталь, для смешанной воды,  без адаптора



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Артикул: AZP-AUS 11 ,   Время доставки: 3-4 недели ,   Viimistlus:
381,15 €



ZAC 1/20, ZAC 1/50, ZAC 1/36L

power supply






ZAC is a safe source of voltage supply intended to power automatic sanitary equipment made by AZP Brno, Ltd.

The source of power supply consists of a safety transformer produced in accordance with ČSN IEC 742+A1 standards. All kinds of sensors can be connected to these sources in random combinations, as can other devices with a supply voltage of 12 V, 50 Hz (total power requirement either 20 VA, 50 VA or 36 VA).

ZAC 1/20 and ZAC 1/50 are independent sources, 1/36L ZAC is the source for the location on the DIN-rail (4 modules).




Version types
ZAC 1/20 - source of power supply with output 20 VA
ZAC 1/50 - source of power supply with output 50 VA
ZAC 1/36L - source of power supply with output 36 VA

Source of power supply can be placed at a maximum distance of 30 m from the connected appliance.

Basic technical information
Input voltage: 230 V, 50 Hz
Output voltage: 12 V, 50 Hz
Power requirement: 20 VA (ZAC 1/20)
  50 VA (ZAC 1/50)
  36 VA (ZAC 1/36L)
Electricity protection: IP 55 (ZAC 1/20, ZAC 1/50)
  IP 20 (ZAC 1/36L)
Weight: 0,8 kg (ZAC 1/20, ZAC 1/36L)
  1,2 kg (ZAC 1/50)


Requirements for setting up the construction
ZAC 1/20, ZAC 1/50
  1. Set-up supply of electricity 230 V,50 Hz – cable CYKY 3Cx1,5
  2. Set-up niche for flush mounting – size as per installed source
  3. Distribution to each device is carried out by cable CYKY 2Ax1,5
ZAC 1/36 L
  1. It is installed on the DIN-rail - width of 4 modules


Figure
ZAC 1/20

ZAC 1/50





Product title
ZAC 1/20 -
power supply for up to 3 devices - 230V, 50Hz
ZAC 1/50 -
power supply for up to 8 devices - 230V, 50Hz
ZAC 1/36L -
power supply for up to 6 devices - 230V, 50Hz
Артикул: AZP-ZAC 1-20 ,   Время доставки: 3-4 недели ,   Viimistlus:
106,72 €

Дозатор для дезинтификанта Н/Р сталь матовый 1,5L Mediclinics DJS0033CS

Surface push-button soap dispenser. Foam soap



Foam soap dispenser of 1.5 L capacity, manufactured in stainless steel AISI 304, to be installed directly on the wall and hand-operated through a push-button made in stainless steel.

Available in three finishes (white, bright and satin) these soap dispenser models have a functional, robust and trendy design that matches the new range of Mediclinics bathroom accessories. This allows this soap dispenser to blend into any space perfectly.

With a net weight of 1.25 Kg and manufactured in stainless steel AISI 304, 0.8 mm thick, these soap dispensers have an inner plastic tank that prevents oxidation and that can be easily removed for cleaning and disinfection purposes.

This entire range of soap dispensers is  equipped with an anti-drip corrosion resistant valve that dispenses 1.0 ml of soap per service. This anti-drip valve, which dispenses foam soap, is easily interchangeable with the valves of the other soap dispensers of the same line that dispense liquid soap (DJ0031, DJ0031C and DJ0031CS) or spray soap (DJS0033, DJS0033C and DJS0033CS), so you can easily turn this liquid soap dispenser into a foam or spray soap dispenser.

In addition, these soap dispensers have a soap content level display in the front part that constantly indicates the level of soap available inside the soap dispenser.

It is recommended to use foam soaps with a density between 0.95 and 1.05 kg/dm3.




Артикул: MDJS0033CS ,   Время доставки: 7-14 дней ,   Viimistlus:
119,70 € (10%)
133,00 €
