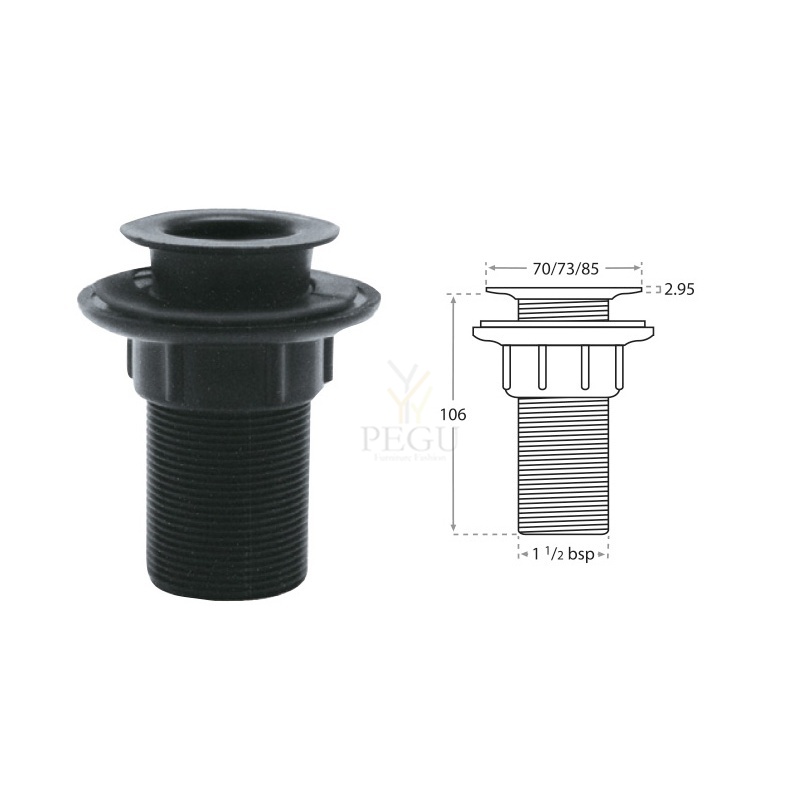

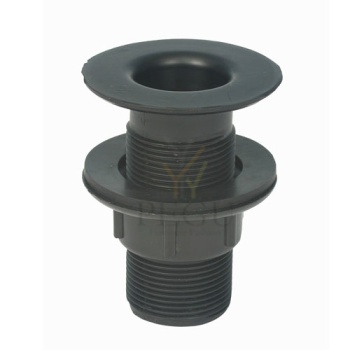

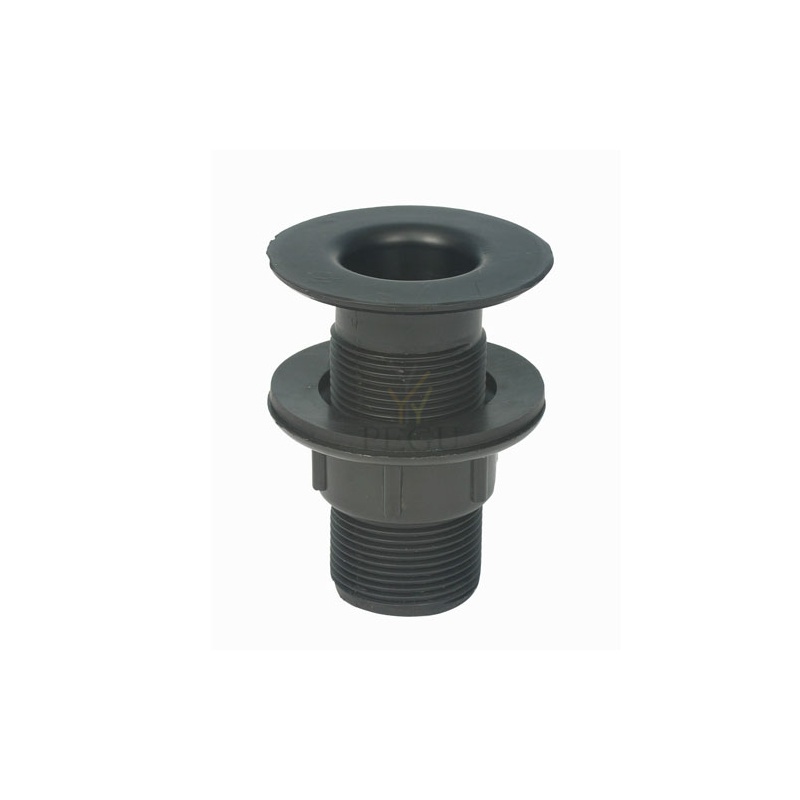

Донный вентиль 1 1/2" BSP x 70mm
Коды и спецификации доступны по запросу для проектов и точного подбора.
Мы рекомендуем делиться ссылкой на товар, а не только кодом — это исключает ошибки.
Обратитесь напрямую: info@pegu.ee
Единица: шт
Время доставки: 2-3 nädalad
Продавец: PEGU OÜ
Takmonterad kroppsdusch inkl. takfläns. Alla delar är ytbehandlade med BROEN-LABs POLYCOAT som inte bara gör att förstahjälpen utrustningen syns väldigt bra, den står även emot de flesta kemikalier, UV blekning och värme.
• Kroppsdusch med effektiv spolbild
• POLYCOAT står emot de flesta kemikalier
• 3-sidig efterlysande skylt monterad på dragstång, dekal & testkort
• Vikt: ca. 2kg
• Flöde 60l/min., vid 1,5 bar (Rör dimensioner anpassas för detta flöde)
• Anslutning: inv. DN15
Artikelnummer: 17 080 009
RSK nummer: 755 96 54
Min. working pressure: 1.5 bar for all Eye Showers
Eye wash and safety shower combination
Ref. 9203
Free-standing eye wash and safety shower combination with manual or foot control includes:
Frost-free system as standard.
304 stainless steel basin Ø 250mm with green finish.
Eye wash spray heads fitted with protective caps in shock-resistant green ABS; will eject automatically when activated.
Flow rate 20 lpm at 3 bar, aerators have stainless steel double filters.
Circular shower head Ø 250mm in green, shock-resistant ABS.
Flow rate 70 lpm at 1 bar dynamic pressure (120 lpm at 3 bar dynamic pressure).
Water supply F1".
Pipework made from galvanised steel, grey powder-coated finish. Triangular pull handle in green powder-coated brass. Hand and foot controls in green powder-coated galvanised steel.
Fixed to the floor by a brass base plate (screws not included).
Supplied with identification signs for first aid equipment: "Safety Shower" and "Eye Wash".
Operation:
1/4-turn, nickel plated brass valves open and close quickly.
Simultaneous Eye Wash and Shower:
Water flows simply by pulling on the triangular handle.
The flow will continue even when the handle is released.
The flow will stop when the handle is returned to its original position.
Eye Wash only:
Water flow is operated by the foot pedal or the hand control. The eye wash will continue to flow when the pedal or hand control is released.
The water flow will stop when the hand control is pulled towards the user or the foot pedal is raised.
10-year warranty.
The water does not shut off automatically, allowing the injured person to have both hands free (to remove their clothing, keep their eyes open, etc.).
TECHNICAL FEATURES
Eye wash and safety shower combination
Ref. 9203
| Supply | F1" |
|---|---|
| Height | 2207mm |
| Length | 660mm |
| Drop height | 2115mm |
| Flow rate | 120 lpm at 3 bar dynamic pressure |
Wall-mounted safety shower
Ref. 9108
Wall-mounted safety shower with manual control includes:
Frost-free system as standard.
Circular shower head Ø 250mm in green, shock-resistant ABS.
1/4-turn, nickel-plated brass valve opens and closes quickly.
Water flows simply by pulling on the triangular handle.
The flow will continue even when the handle is released.
The flow will stop when the handle is returned to its original position.
Flow rate 70 lpm at 1 bar dynamic pressure (120 lpm at 3 bar dynamic pressure).
Water supply F1".
Pipework made from galvanised steel, grey powder-coated finish. Triangular pull handle in green powder-coated brass.
Supplied with identification sign for first aid equipment: "Safety Shower".
For cross wall installation, with recessed supply, or for mounting on a false ceiling (we recommend a 1" mounting bracket).
TECHNICAL FEATURES
Wall-mounted safety shower
Ref. 9108
| Supply | F1" |
|---|---|
| Height | 450mm |
| Length | 625mm |
| Flow rate | 120 lpm at 3 bar dynamic pressure |
| Finish | Epoxy |
