298 x 385 x 135 mm
ca. 500 paper towels

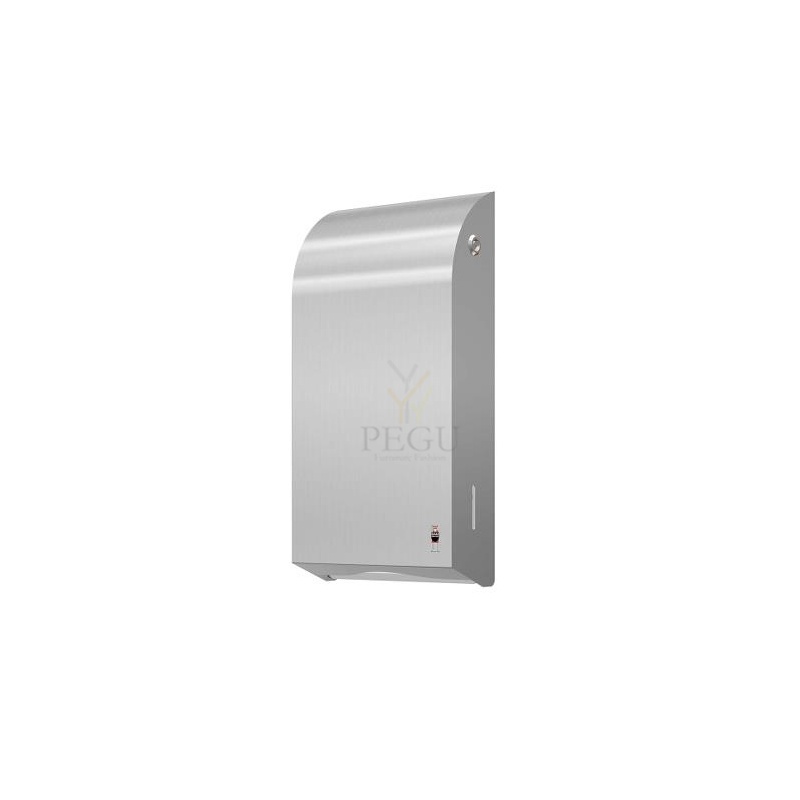

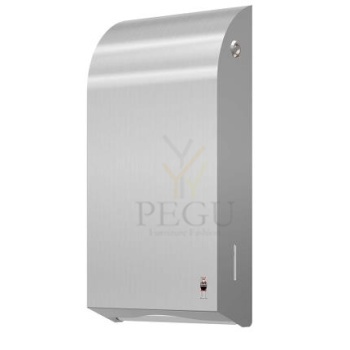

• Paper towel dispenser in robust, germ-reducing and easy-care stainless steel (AISI 304).
• For mounting behind fixed mirror on site.
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
• With deep-drawn paper removal opening for easy paper removal.
• Designed for approx. 500 standard paper towels in zigzag fold.
  Paper size (folded): 240-250 mm x 100-115 mm. Accessible for refilling from the front through lockable drawer that can be pulled out downwards.
• Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
• Wear parts can be replaced as modules.
• Mounting: With four screws.
  Depth of substructure installation: min. 140 mm.
  Height above vanity unit: min. 285 mm.
• Delivery includes fixing material, self-adhesive information label „Paper“ and one pack of paper towels.

• Weight (in kg): 5,3

600 x 600 x 130 mm
400 ml foam soap concentrate, ca. 750 paper towels

• Mirror cupboard with integrated foam soap dispenser and paper towel dispenser in robust, germ-reducing and easy-care stainless steel (AISI 304).
• All-stainless steel housing; visible surfaces satin finished and brushed.
• Crystal mirror with all round 2 mm chamfer and frosted window for optional lighting set.
• Foam soap dispenser with one-hand operated and non-drip foam soap pump.
• Designed for standard 400 ml foam soap concentrate.
• Paper towel dispenser with deep-drawn paper removal opening for easy paper removal.
• Designed for approx. 750 standard paper towels in zigzag fold.
  Paper size (folded): 240-250 mm x 100-115 mm.
• Accessible for refilling through lockable door.
• Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
• Wear parts can be replaced as modules.
• Lighting set available as an option.
• Mounting: With four screws through key holes and one optional anti-theft hole in the back wall.
• Delivery includes fixing material, first fill with foam soap concentrate and one pack of paper towels.

• Weight (in kg): 18,9

298 x 1348 x 120 mm
ca. 250 paper towels / sensor with 950 ml soap bottle / 11 l

• Combination consisting of a sensor liquid soap dispenser, a paper towel dispenser and a waste bin in robust, germ-reducing and easy-care stainless steel (AISI 304).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
  Further available surfaces: see below.
• Sensor liquid soap dispenser with EWAR® eModule touch-free operated soap pump.
• Designed for standard 950 ml disposable bottles of liquid soap or hand lotion.
• Also refillable with large container using the plug-in tank as an option.
• Paper towel dispenser with deep-drawn paper removal opening for easy paper removal.
• Designed for approx. 250 standard paper towels in zigzag fold.
  Paper size (folded): 240-250 mm x 100-115 mm.
• Inspection slots to indicate fill level.
• Accessible for refilling through lockable front flap with fall protection.
• Waste bin equipped with removable mesh basket. Capacity approx. 11 l. Accessible through lockable door with self-closing, flame-retardant disposal flap.
• Keyed alike cylinder locks in corrosion-resistant zinc die-casting.
• eModule battery-powered with two 1.5 V Baby/LR14 batteries.
  Power supply available as an option.
• Wear parts can be replaced as modules.
• Mounting: With eight screws through key holes and one optional anti-theft hole in the back wall.
• Delivery includes fixing material, batteries, first fill with soap and one pack of paper towels.

• Weight (in kg): 15,8
