Душ безопасности для глаз Broen 1 головка 45" с настенным креплением
Коды и спецификации доступны по запросу для проектов и точного подбора.
Мы рекомендуем делиться ссылкой на товар, а не только кодом — это исключает ошибки.
Обратитесь напрямую: info@pegu.ee

Единица: шт
Время доставки: 14-21 день
✅ На PEGU.ee мы выбираем то, что действительно приятно иметь дома.
Умные решения, красивый дизайн, проверенное качество.
Покупая у нас, вы выбираете уверенность и спокойствие.
Душ безопасности для глаз Broen 1 головка 45" с настенным креплением
Silmadush hädaabidušš Broen 1-e silmale 45" seinakinnitusega

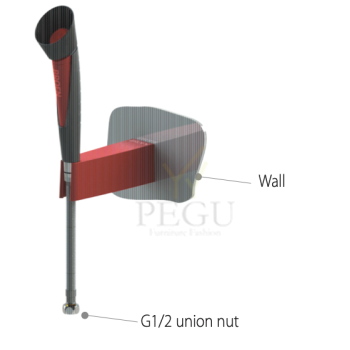

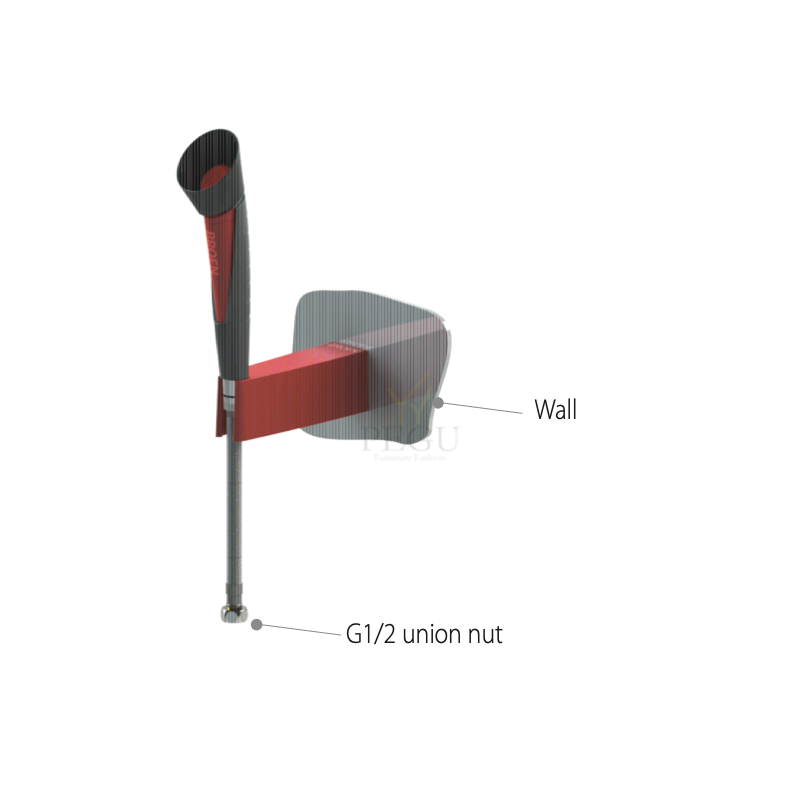

Wall mounted eye wash
Wall mounted eye shower with a one 45° angled heads, incl. 1.5m inlet hose.
Trigger operated including a built-in check valve and FLOWFIX for regulation of water flow (14 l/min).
Description
Wall Mount one Eye Wash
SAFETY
Improved trigger lock
Improved activation of the shower
OPERATION
Stay-open dust cap
Light weight
Well-balanced construction
Better spray pattern
RELIABILITY
Easy-to-clean spray head
Anti-limescale design and material choice
Improved functionality
Longer lifetime
Видео
S P E C I F I C AT I O N S
Handle: Metal, BROEN-LAB POLYCOAT powder coated
with media indication according to EN13792
Hose nozzle: Removable/external G3/4 thread, metalHeadwork: Diaphragm type
Opening/closing function: 1 1/2 x 360°Temperature range: 0-90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 0.9 kg
MATERIALS WITH MEDIA CONTACT
Metals: Stainless Steel, AISI 316Diaphragm: PTFE
Rubber: EPDM
ORDERING INFORMATION
For standard configuration please refer to the item numbers below.
Kombinerad kropps- & ögon/ansiktsdusch för väggmontage (Utan skål)
Utrustad med självdränerande duschsil och ögondusch för minskad bakterietillväxt. Den röda POLYCOAT-lackerade rörstommen gör inte bra att första hjälpenutrustningen syns väldigt bra, den står även emot de flesta kemikalier, UV- blekning och värme.
• Kroppsdusch med effektiv spolbild, självdränerande duschsil
• Självdränerande ögon/ansiktsdusch med FLOWFIX 26 lit/min
• POLYCOAT-lackerad rörstomme
• 3-sidig efterlysande skylt monterad på dragstång, dekal & testkort
• Vikt: ca. 8 kg
• Anslutning: inv. DN25 i toppen eller botten
Artikelnummer: 17 555 009
Eye wash and safety shower combination
Ref. 9203
Free-standing eye wash and safety shower combination with manual or foot control includes:
Frost-free system as standard.
304 stainless steel basin Ø 250mm with green finish.
Eye wash spray heads fitted with protective caps in shock-resistant green ABS; will eject automatically when activated.
Flow rate 20 lpm at 3 bar, aerators have stainless steel double filters.
Circular shower head Ø 250mm in green, shock-resistant ABS.
Flow rate 70 lpm at 1 bar dynamic pressure (120 lpm at 3 bar dynamic pressure).
Water supply F1".
Pipework made from galvanised steel, grey powder-coated finish. Triangular pull handle in green powder-coated brass. Hand and foot controls in green powder-coated galvanised steel.
Fixed to the floor by a brass base plate (screws not included).
Supplied with identification signs for first aid equipment: "Safety Shower" and "Eye Wash".
Operation:
1/4-turn, nickel plated brass valves open and close quickly.
Simultaneous Eye Wash and Shower:
Water flows simply by pulling on the triangular handle.
The flow will continue even when the handle is released.
The flow will stop when the handle is returned to its original position.
Eye Wash only:
Water flow is operated by the foot pedal or the hand control. The eye wash will continue to flow when the pedal or hand control is released.
The water flow will stop when the hand control is pulled towards the user or the foot pedal is raised.
10-year warranty.
The water does not shut off automatically, allowing the injured person to have both hands free (to remove their clothing, keep their eyes open, etc.).
TECHNICAL FEATURES
Eye wash and safety shower combination
Ref. 9203
Supply | F1" |
---|---|
Height | 2207mm |
Length | 660mm |
Drop height | 2115mm |
Flow rate | 120 lpm at 3 bar dynamic pressure |
Laborikraan Broen-Lab Sensoriga tööpinnale. S=200mm.220V
Pöördepiiraja 110 kraadi. Valge (RAL0008500)
Broen-LAB
Specifications
Aerator, with flow limitation 5 L/min
Sensor operated opening and closing function with bi-stabile technology
110° limited swivel spout
Temperatur range: 5-65° (41°F - 149°F) Max. working pressure: 10 bar/145 psi
Surface
Chemical resistant Polyester Based Surface treatment, UV-resistent.
BROEN-LAB colour: 2700 (RAL colour: 0008500)
Material with media contact
Brass
Rubber, EPDM
Silicone based lubricant PPSU
SS
PA
SPX Hose
Electrical connection
Adaptor: 100-240 V AC 50/60 Hz Battery: 6 V Lithium
Hose
Supplied with hoses.
Hose (1) on the picture is mandatory and included. Hose (2) on the picture is optional. See in the table below which options you have for hose (2)*.
For further options contact BROEN-LAB
