Душевая панель Delabie SECURITHERM с термомтатом электронная 6V ALU
Коды и спецификации доступны по запросу для проектов и точного подбора.
Мы рекомендуем делиться ссылкой на товар, а не только кодом — это исключает ошибки.
Обратитесь напрямую: info@pegu.ee
Единица: шт
Время доставки: 14-21 день
Продавец: PEGU OÜ

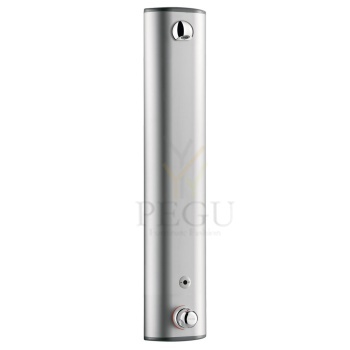

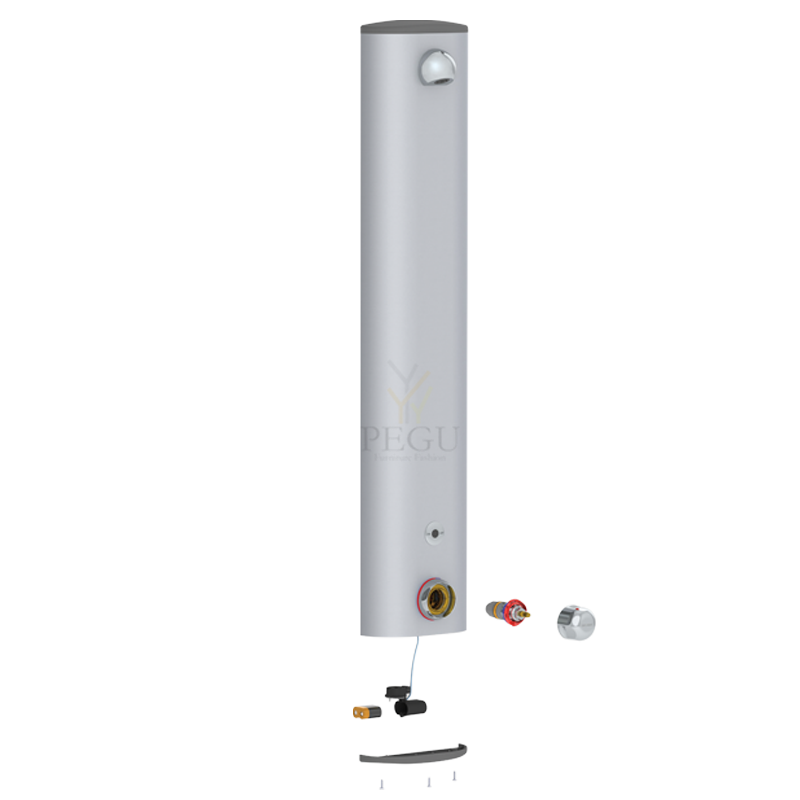

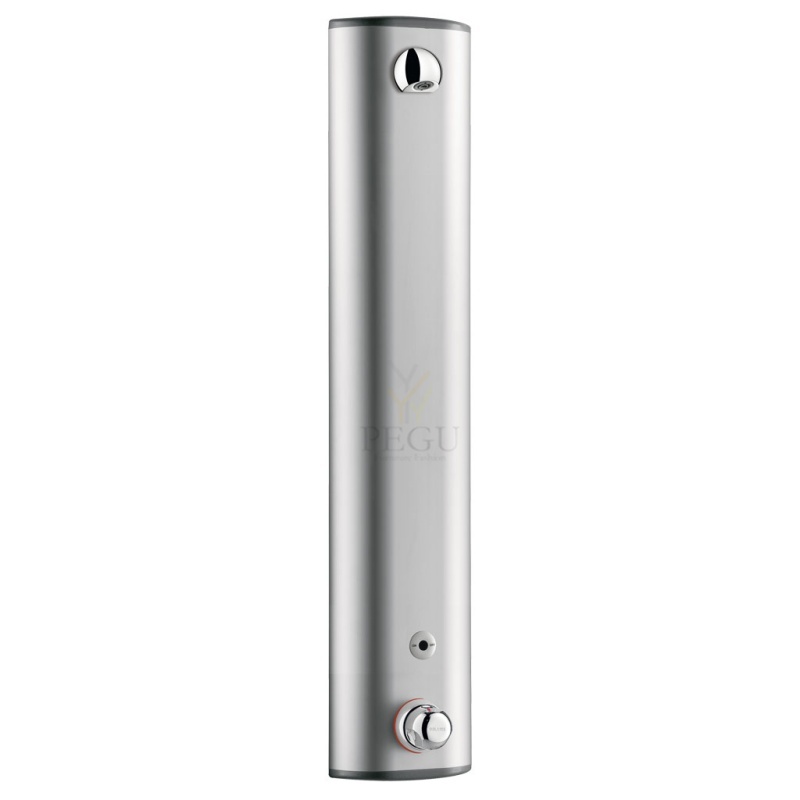

SECURITHERM shower panel
Ref. 792410
Electronic thermostatic shower panel:
Anodised aluminium shower panel for wall-mounted, exposed installation.
With concealed inlet via flexibles, M1/2".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding safety: automatic shut-off if cold or hot water supply fails.
Thermal shocks are possible.
Battery-operated with 223 6V Lithium battery.
Infrared presence detection. Shower starts when hand is 4cmfrom the sensor.
Shuts off on demand or automatically after ~60 seconds.
Duty flush (~60 seconds every 24 hours after the last use).
Flow rate set at 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
Concealed fixings.
Filters and non-return valves.
Файлы
Technical features
SECURITHERM shower panel
Ref. 792410
| Supply | 6V battery |
|---|---|
| Connector | M1/2" |
| Technology | Electronic |
| Height | 1050mm |
| Depth | 65mm |
| Width | 210mm |
| Flow rate | 6 lpm |
| Temperature limiter | Thermostatic |
| Finish | Aluminium |
Бесконтактный водяной кран+дозатор для мыла MWS bent
Multifunctional touchless faucet, water and soap in one unit, countertop integration.
Simple Touchless operation, the untouchable™ makes use of an elegant infrared interface, operated through a simple process: select above, receive under. By swiping above the untouchable™ - in any direction - the dispenser cycles through the available liquids. When a desired liquid is selected, the hand is simply placed under the faucet. Compatible with 1,000 ml standard Euro bottles, suitable for low-viscosity soaps and lotions, refillable using bottles with wide neck, dosage (depending on viscosity): soap approx. 2 ml, value can be changed on request before delivery
| Stainless steel, ground | ||
| Water | ||
| Refillable | ||
| 1000 ml | ||
| Liquid soaps | ||
| Touchless |
Душевая панель со смесителем PRESTOTEM2 ALPA, самозапорный - 30 sek рабочий цикл
> Working pressure : 1 to 5 bar
TEMPOMIX shower kit
Ref. 790912
Recessed time flow shower kit:
Standard recessing housing. Recessing depth can be adjusted.
Chrome-plated wall plate Ø 195mm.Recessing depth can be adjusted from 28 - 43mm.
TEMPOMIX 3/4" single control mixer.
Ligature-resistant collar.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by the installer).
Time flow ~30 seconds, soft-touch operation.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof TONIC JET shower head with scale-resistant nozzle and automatic flow rate regulation.
M1/2" connectors for copper tubes Ø 14mm.
Integrated non-return valves and filters.
Chrome-plated metal control.
10-year warranty.
This model does not have a waterproof recessing box. The installer must ensure that the recessing area is waterproof and any leaks or condensates can drain away (see installation guide).
TECHNICAL FEATURES
TEMPOMIX shower kit
Ref. 790912
| Connector | 1/2" |
|---|---|
| Technology | Time flow |
| Flow rate | 6 lpm |
Новый товар 790219+790BOX
DESCRIPTION
TEMPOMIX 3 shower kit
Ref. 794BOX1-794219
Recessed time flow shower mixer with soft-touch operation:
Tamperproof chrome-plated metal wall plate 160 x 160mm.
Waterproof recessing housing:
- Collar with waterproof seal.
- Hydraulic connection from the exterior and maintenance from the front.
- Top inlet.
- Adjusts to all types of installation (rails, solid walls, panels).
- Compatible with wall finishes 10 - 120mm (while maintaining the minimum recessing depth of 93mm).
- Suitable for standard pipe supply or "pipe in pipe".
- Stopcocks and flow rate adjustment, filters, non-return valves and cartridge are integrated and can be accessed from the front.
- TEMPOMIX 3 single control mixer F½".
-Supplied in 2 kits: secure system flush without sensitive elements.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by installer).
Time flow ~30 seconds, can be adjusted.
Soft-touch operation.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
PREMIX SECURITY
Ref. 731053
Group thermostatic mixing valve for hot water circulating loops adjustable from 44°C to 58°C:
Anti-scalding safety.
Regulates temperature variations.
Non-return valves and filters accessible from the exterior without having to remove the mechanism.
Thermal cartridge with no specific lever needed (push-button on the control knob).
Interchangeable cartridge with thermostatic cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C mini.
Pressure differences at the entrance: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 to 10 bar (1 to 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring) for bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
15% energy savings: optimised heat loss (comparison between a circulating loop at 55°C and a non-circulating system at 70°C).
Safety and prolongation of system life span (Hot water at >65°C leads to premature aging within the system).
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
90 lpm - M1".
