Душевая панель Delabie SECURITHERM с термостатом сенсорная ALU
Коды и спецификации доступны по запросу для проектов и точного подбора.
Мы рекомендуем делиться ссылкой на товар, а не только кодом — это исключает ошибки.
Обратитесь напрямую: info@pegu.ee
Единица: шт
Время доставки: 14-21 день
Продавец: PEGU OÜ
SECURITHERM shower panel
Ref. 792400
Thermostatic electronic shower panel:
Anodised aluminium shower panel for wall-mounted, exposed installation.
With top inlet, via in-line stopcocks M1/2".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding safety: automatic shut-off if cold or hot water supply fails.
Thermal shocks are possible.
Battery-operated with 223 6V Lithium battery.
Infrared presence detection. Shower starts when hand is 4cm from the sensor.
Shuts off on demand or automatically after ~60 seconds.
Duty flush (~60sec. every 24hr after the last use).
Flow rate set at 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
Concealed fixings.
Filters and non-return valves.
Файлы

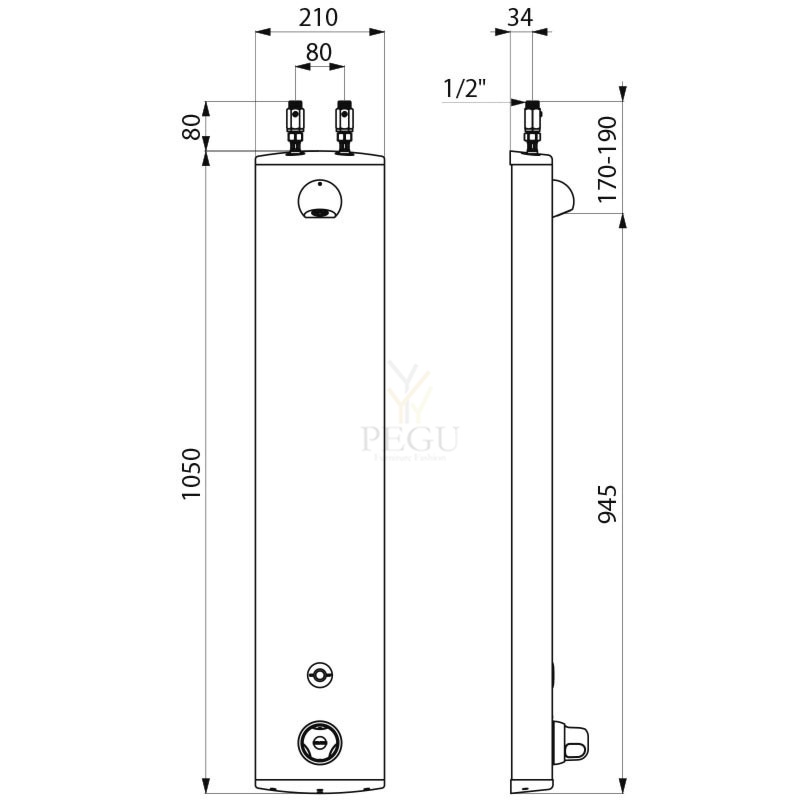

TECHNICAL FEATURES
SECURITHERM shower panel
Ref. 792400
| Supply | 6V battery |
|---|---|
| Connector | M1/2" |
| Technology | Electronic |
| Height | 1050mm |
| Depth | 65mm |
| Width | 210mm |
| Flow rate | 6 lpm |
| Temperature limiter | Thermostatic |
| Finish | Aluminium |
-Ülekiire kuivatusaeg
-Minimaalne energiatarve
-minimaalset CO2 heitmeid
-Madalama müratasemega oma kategoorias
-Mootori kiirus on reguleeritav potentsiomeetriga
-Tõhus õhufilter H13HEPA
-Mikroobivaste Biocote kaitsekiht
-Kergesti hooldatav
-ADA-ühindav
-Green Speci nimekirjas
Kuivatuseaeg on 8-15 sek!
Mora Cera Duo
Energia kokkuhoiu süsteem
Pehmeltsulguv , keraamiline sisu
Muudetuv voolutegevus ja temperatuuri piiraja
ECO funktsioon (energiat ja vett säästev õhusti 9l/min)
Pööratav jooksutoru,60.85, 110, või 360 kraadi ülatuses
Aegreleega loputus üleujutamise vältimiseks
Madal voolutarve, kõrge eluga
IP-klassi andur , IP67
Душевой комплект SPORT самовыключающийся с регулятором температуры KSA32/36 15sek
Душевой комплект
хром
15 sek рабочий цикл
> Working pressure :
1 to 5 bar
> Flow :
10 l/min with integrated flow limiter
Hand-held shower on rail with chrome plated slide
> Hydraulic supply :
G 1/2" (15x21), top or rear water inlet. For rear water inlet, we recommend to use the adaptation kit under the reference 91026. On single control mixer tap with ceramic disks
> Material :
Anodised aluminium extruded section (2.5mm thickness) Aluminium removable valve plate, peinted RAL 7005 colour High resistance RAL 7005 coloured ABS covers
> Functioning:
Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate
> Thermal resistance :
Resistant to a temperature of 75°C for 30-minute-thermal-shocks
> Security :
Adjustable tamper-proof temperature limiter to prevent scalding
> Delivered with :
1/2" hoses with revolving nuts
MM 1/2" (15x21) straight stop valves and 250 micron filters Fastening screws and instruction manual
> Standards & approvals :
Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
> Working pressure :
1 to 5 bar
> Flow :
6 l/min with integrated flow limiter Anti-water-hammering device
Fixed shower head with anti-limescale spikes
> Flow time :
30 seconds (± 5 sec.)
> Hydraulic supply :
G 1/2" (15x21), top or rear water inlet. For rear water inlet, we recommend to add the adaptation kit under the reference 91026 On P 50 tap NF II with cold water or pre-mixed water
> Material :
Anodised aluminium extruded section (2.5mm thickness) Aluminum removable valve plate, peinted RAL 7005 colour High resistance RAL 7005 coloured ABS covers
> Functioning:
Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate
> Thermal resistance :
Resistant to a temperature of 75°C for 30-minute-thermal-shocks
> Security :
Non turnable push button Non-removable, wear-proof red marker
> Delivered with :
1/2" hoses with revolving nuts
MM 1/2" (15x21) straight stop valves and 250 micron filters Fastening screws and instruction manual
> Standards & approvals :
Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540
200-hour neutral salt spray resistant (NSS) in concordance with ISO 9227
