Душевая панель Delabie TEMPOMATIC электронная смешанная вода 6V ALU

Артикул: DE-452310
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
890,60 €
Kuumakse alates: 76,53 €
Кол-во: - +

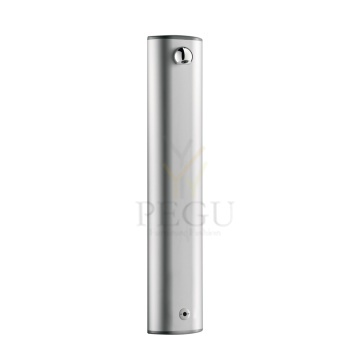

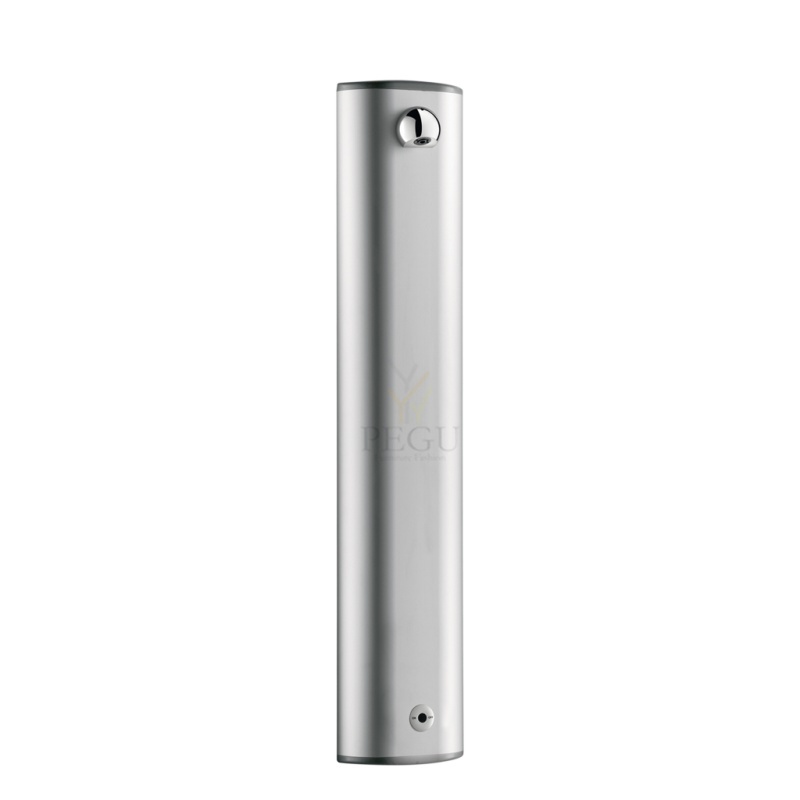

TEMPOMATIC shower panel
Ref. 452310

Electronic thermostatic shower panel:
Anodised aluminium shower panel for wall-mounted, exposed installation.
With concealed inlet via flexible, M1/2".
TEMPOMATIC electronic mixer for mixed water supply.
Battery-operated with 223 6V Lithium battery.
Infrared presence detection. Shower starts when hand is at 4cmfrom the sensor.
Shuts off on demand or automatically after ~60 seconds.
Duty flush (~60 seconds every 24 hours after the last use).
Flow rate set at 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
Concealed fixings.
Filter.

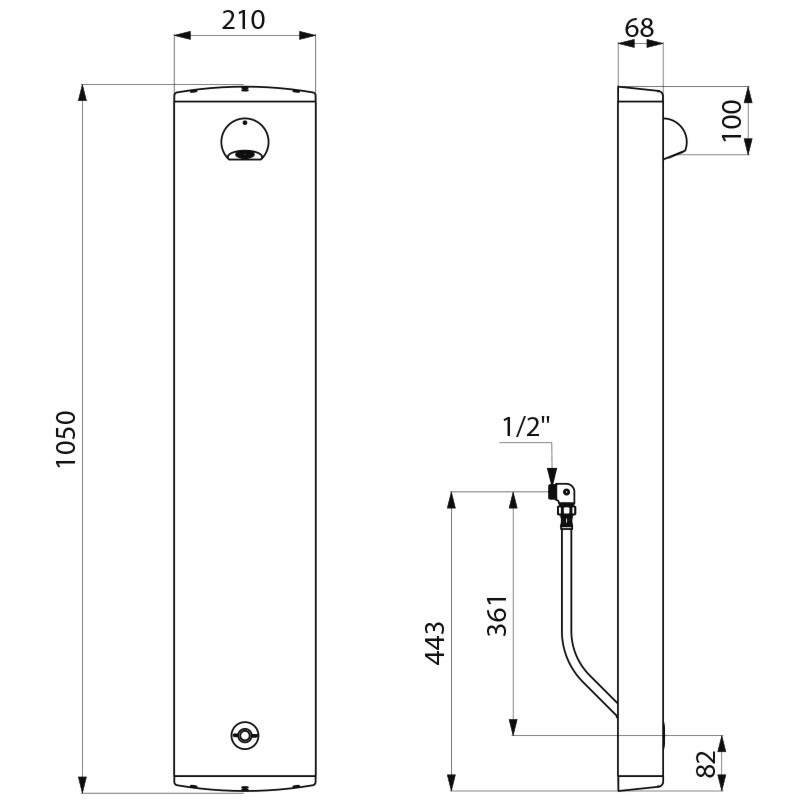

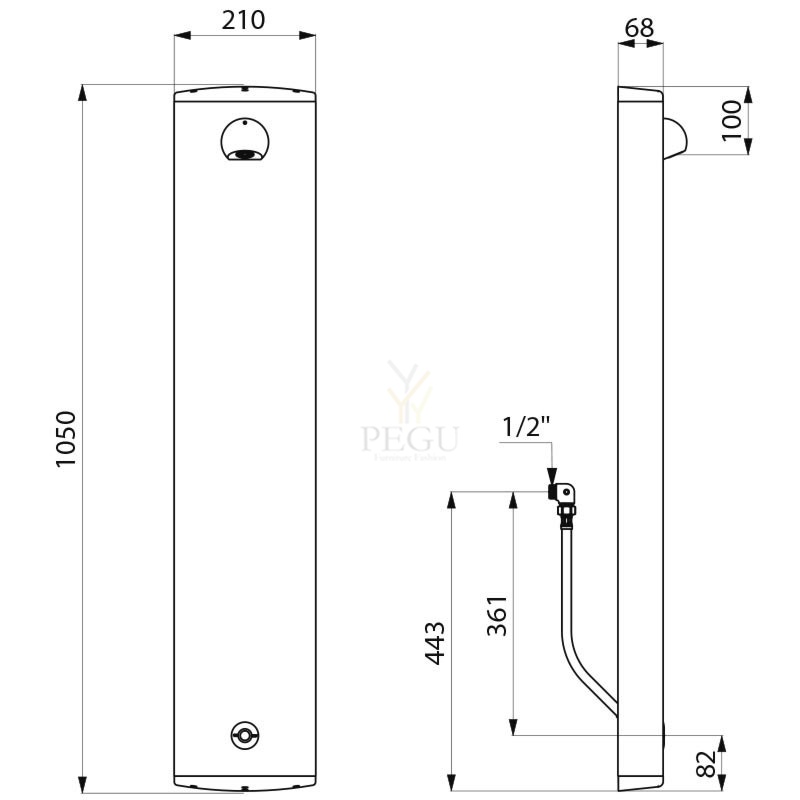

TECHNICAL FEATURES

TEMPOMATIC shower panel
Ref. 452310

Supply 6V battery
Connector M1/2"
Technology Electronic
Height 1050mm
Depth 65mm
Width 210mm
Flow rate 6 lpm
Finish Aluminium
Схожие продукты

Vajutava nupuga dušši segisti

ALPA

Presto

kroom

30 sek. töötsükkel 3 bar



Артикул: P35816 ,   Время доставки: 14-21 день
640,50 €

Dušhikraan, eelsegatud veele 30 sek töötsükkel

Артикул: P38222 ,   Время доставки: 7-14 дней
201,30 €
Антивандалльная душевая пьезо кнопка Н/Р сталь, для смешанной воды,  без адаптора



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Артикул: AZP-AUS 11 ,   Время доставки: 3-4 недели
375,00 €

1/2" наружняя резьба

Артикул: P29301 ,   Время доставки: 7-14 дней
141,32 €

> Working pressure :

1 to 5 bar

> Flow :

6 l/min with integrated flow limiter Anti-water-hammering device
Fixed shower head with anti-limescale spikes

> Flow time :

30 seconds (± 5 sec.)

> Hydraulic supply :

G 1/2" (15x21), top or rear water inlet. For rear water inlet, we recommend to add the adaptation kit under the reference 91026 On P 50 tap NF II and thermostatic mixer tap EN 1111 (NF check valves)

> Material :

Anodised aluminium extruded section (2.5mm thickness) Aluminium removable valve plate, peinted RAL 7005 colour High resistance RAL 7005 coloured ABS casings

> Functioning:

Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate

> Thermal resistance :

Resistant to a temperature of 75°C for 30-minute-thermal-shocks

> Security :

"Legionella" version: pre-equipped for PRESTO solutions
Anti-scald system: flow is immediately stopped if the cold water is cut off Maximum delivered temperature : pre-fixed at 38°

> Delivered with :

1/2" hoses with revolving nuts
MM 1/2" (15x21) straight stop valve and 250 micron filters Fastening screws and instruction manual

> Standards & approvals :

Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540

Артикул: P88804 ,   Время доставки: 14-21 день
1329,80 €
