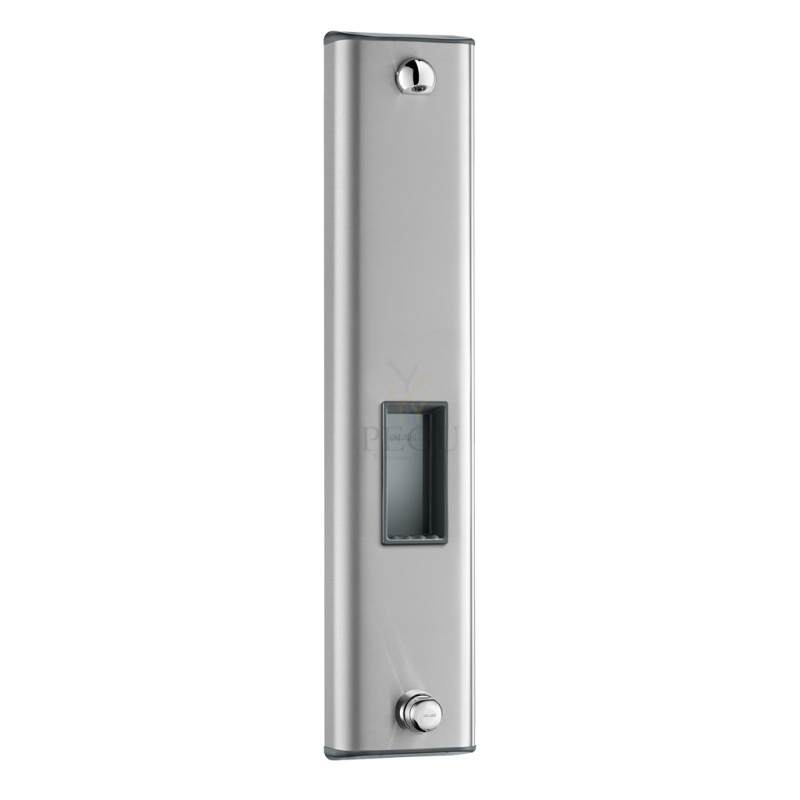

Душевая панель Delabie TEMPOMIX самовыключающаяся 30 sek Н/Р сталь

Артикул: DE-790204
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
1409,00 €
Kuumakse alates: 119,77 €
Кол-во: - +
   - или -

TEMPOMIX shower panel
Ref. 790204

Time flow shower panel with fixed shower head:
Large model stainless steel panel for wall-mounted, exposed installation.
With top inlet via in-line stopcocks M1/2".
TEMPOMIX mixer with adjustable maximum temperature limiter.
Soft-touch operation.
Time flow ~30 seconds.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
Integrated soap dish.
M1/2" connections.
Concealed fixings.
Filters and non-return valves.

Файлы

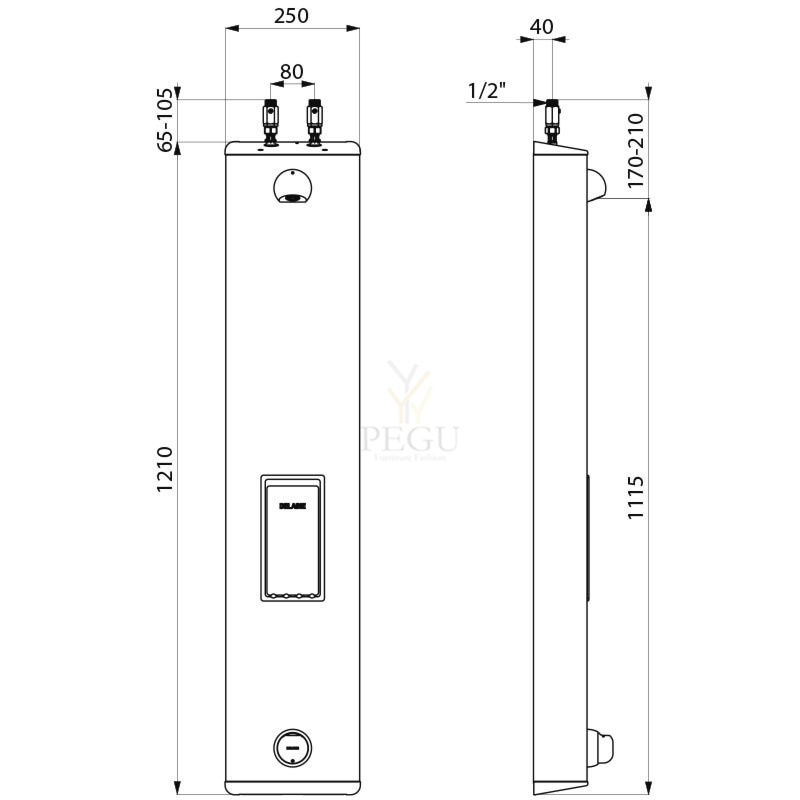

TECHNICAL FEATURES

TEMPOMIX shower panel
Ref. 790204

Connector M1/2"
Technology Time flow
Height 1220mm
Depth 100mm
Width 250mm
Flow rate 6 lpm
Finish Stainless steel
