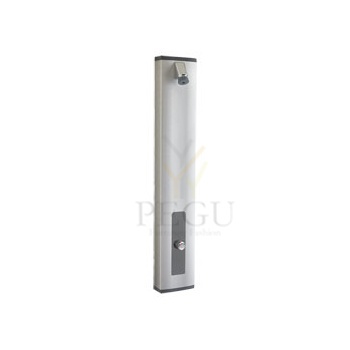

Душевая панель PRESTOTEM2 ALPA S® самозапорный - 30 sek рабочий цикл, система антиблок

Артикул: P88812
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена: 1142,00 €
1084,90 €
Kuumakse alates: 92,18 €
Кол-во: - +
   - или -

> Working pressure :

1 to 5 bar

> Flow :

6 l/min with integrated flow limiter Anti-water-hammering device
Rotating shower head with anti-limescale spikes

> Flow time :

30 seconds (± 5 sec.)

> Hydraulic supply :

G 1/2" (15x21), top or rear water inlet. For rear water inlet, we recommend to use the adaptation kit under the reference 91026. On ALPA S® NF IB mixer tap with NF check valves

> Material :

Anodised aluminium extruded section (2.5mm thickness) Aluminium removable valve plate, peinted RAL 7005 colour High resistance RAL 7005 coloured ABS covers

> Functioning:

Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate

> Thermal resistance :

Resistant to a temperature of 75°C for 30-minute-thermal-shocks

> Security :

Adjustable tamper-proof temperature limiter to prevent scalding
Patented anti-blocking "S" system preventing the water flows continuously

> Delivered with :

1/2" hoses with revolving nuts
MM 1/2" (15x21) straight stop valves and 250 micron filters Fastening screws and instruction manual

> Standards & approvals :

Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227

Видео



Файлы

Схожие продукты

Душевая панель PRESTO DL400SE на смешанную/холодную воду, 30 sek 3bar, алюминий стоп кран 1/2"

Vajutava nupuga duššipaneel

DL400SE

eelsegatud vesi

Presto

30 sek. töötsükkel 3 bar

Range: Timed flow single tap for shower

Ref: 27400 - PRESTO DL 400 SE® single tap with straight stop valve





> Working pressure :

1 to 5 bar

> Flow :

8 l/min at 3 bar with integrated flow limiter (+ additional 6l/mn limiter) Anti-water-hammering design
Fixed shower head with anti-limescale spikes

> Flow time :

30 seconds (± 5 sec.)

> Hydraulic supply :

G 1/2" (15x21) Top water inlet with straight stop valve For cold or premixed water

> Material and colour finish :

Injected molded metal body and cover
Extruded cover in aluminium (magnesium-silicon alloy 6060)

> Thermal resistance :

Resistant to a temperature of 75°C for 30-minute-thermal-shocks

> Security :

Patented anti-blocking "S" system to avoid the water to flow continuously

> Delivered with :

VBA screws and nylon plugs Additional 6l/mn limiter
M G 1/2" - FG3/4" stop valve and filter Instruction manual

> Standards & approvals :

Acoustic class I
Molded chrome-plated body in accordance with EN 12540
200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227

Артикул: P27400 ,   Время доставки: 7-14 дней
327,75 € (5%)
345,00 €



ZAC 1/20, ZAC 1/50, ZAC 1/36L

power supply






ZAC is a safe source of voltage supply intended to power automatic sanitary equipment made by AZP Brno, Ltd.

The source of power supply consists of a safety transformer produced in accordance with ČSN IEC 742+A1 standards. All kinds of sensors can be connected to these sources in random combinations, as can other devices with a supply voltage of 12 V, 50 Hz (total power requirement either 20 VA, 50 VA or 36 VA).

ZAC 1/20 and ZAC 1/50 are independent sources, 1/36L ZAC is the source for the location on the DIN-rail (4 modules).




Version types
ZAC 1/20 - source of power supply with output 20 VA
ZAC 1/50 - source of power supply with output 50 VA
ZAC 1/36L - source of power supply with output 36 VA

Source of power supply can be placed at a maximum distance of 30 m from the connected appliance.

Basic technical information
Input voltage: 230 V, 50 Hz
Output voltage: 12 V, 50 Hz
Power requirement: 20 VA (ZAC 1/20)
  50 VA (ZAC 1/50)
  36 VA (ZAC 1/36L)
Electricity protection: IP 55 (ZAC 1/20, ZAC 1/50)
  IP 20 (ZAC 1/36L)
Weight: 0,8 kg (ZAC 1/20, ZAC 1/36L)
  1,2 kg (ZAC 1/50)


Requirements for setting up the construction
ZAC 1/20, ZAC 1/50
  1. Set-up supply of electricity 230 V,50 Hz – cable CYKY 3Cx1,5
  2. Set-up niche for flush mounting – size as per installed source
  3. Distribution to each device is carried out by cable CYKY 2Ax1,5
ZAC 1/36 L
  1. It is installed on the DIN-rail - width of 4 modules


Figure
ZAC 1/20

ZAC 1/50





Product title
ZAC 1/20 -
power supply for up to 3 devices - 230V, 50Hz
ZAC 1/50 -
power supply for up to 8 devices - 230V, 50Hz
ZAC 1/36L -
power supply for up to 6 devices - 230V, 50Hz
Артикул: AZP-ZAC 1-20 ,   Время доставки: 3-4 недели
105,00 €

> Working pressure: 1 to 5 bar

> Flow: 3 l/min at 3 bars - 4-position setting Anti water-hammer system

> Flow time: 7 seconds

> Hydraulic supply: G 1/2" x 15 - cold water

> Dimensions : 150mm projection

> Thermal resistance: This tap can withstand a thermal shock of 75°C for 30 minutes as part of a thermal shock programme

> Safety: With S® antiblocking system to prevent blocking in continuous flow Interchangeable head and non-turnable push button to avoid premature wear Non-removable blue circled marker

> Delivered with: 1 Installation manual

> Standards / Approvals: Stainless steel body (304 L) Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227

Артикул: P66225 ,   Время доставки: 14 дней
218,50 € (5%)
230,00 €

Dushiotsik antivandaalne ülemine paigaldus, 1/2" F

D40x40mm

Артикул: P29296 ,   Время доставки: 14-21 дней
89,30 € (5%)
94,00 €

Complete assembling kit including single pedal mixer and spout

Technical features



It includes: single pedal mixer art. 02070, spout art. 02026, water connections with flexible tubes, check valves with filter




Артикул: IDR-KFL70/26 ,   Время доставки: 14-21 день
378,90 € (10%)
421,00 €
