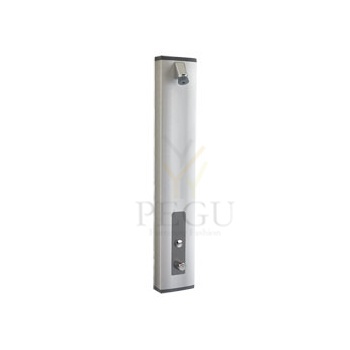

Душевая панель PRESTOTEM2 P50 TM 30 sek рабочий цикл, с термостатом

Артикул: P88800
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
883,00 €
Кол-во: - +
   - или -

> Working pressure : 1 to 5 bar


> Flow : 6 l/min with integrated flow limiter Anti-water-hammering device Fixed shower head with anti-limescale spikes

> Flow time : 30 seconds (± 5 sec.)

> Hydraulic supply : G 1/2" (15x21), top or rear water inlet. For rear water inlet, we recommend to add the adaptation kit under the reference 91026 On P 50 tap NF II and thermostatic mixer tap EN 1111 (NF check valves)

 > Material : Anodised aluminium extruded section (2.5mm thickness) Aluminium removable valve plate, peinted RAL 7005 High resistance RAL 7005 coloured ABS covers

> Functioning: Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate

> Thermal resistance : Resistant to a temperature of 75°C for 30-minute-thermal-shocks

> Security : Anti-scald system: flow is immediately stopped if the cold water is cut off Maximum delivered temperature : pre-fixed at 38°

> Delivered with : 1/2" hoses with revolving nuts MM 1/2" (15x21) straight stop valve and 250 micron filters Fastening screw and instruction manual

> Standards & approvals : Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in concordance with ISO 9227

Видео



Файлы

Схожие продукты

Dušhikraan, eelsegatud veele 30 sek töötsükkel

Артикул: P38222 ,   Время доставки: 7-14 дней
146,00 €



ZAC 1/20, ZAC 1/50, ZAC 1/36L

power supply






ZAC is a safe source of voltage supply intended to power automatic sanitary equipment made by AZP Brno, Ltd.

The source of power supply consists of a safety transformer produced in accordance with ČSN IEC 742+A1 standards. All kinds of sensors can be connected to these sources in random combinations, as can other devices with a supply voltage of 12 V, 50 Hz (total power requirement either 20 VA, 50 VA or 36 VA).

ZAC 1/20 and ZAC 1/50 are independent sources, 1/36L ZAC is the source for the location on the DIN-rail (4 modules).




Version types
ZAC 1/20 - source of power supply with output 20 VA
ZAC 1/50 - source of power supply with output 50 VA
ZAC 1/36L - source of power supply with output 36 VA

Source of power supply can be placed at a maximum distance of 30 m from the connected appliance.

Basic technical information
Input voltage: 230 V, 50 Hz
Output voltage: 12 V, 50 Hz
Power requirement: 20 VA (ZAC 1/20)
  50 VA (ZAC 1/50)
  36 VA (ZAC 1/36L)
Electricity protection: IP 55 (ZAC 1/20, ZAC 1/50)
  IP 20 (ZAC 1/36L)
Weight: 0,8 kg (ZAC 1/20, ZAC 1/36L)
  1,2 kg (ZAC 1/50)


Requirements for setting up the construction
ZAC 1/20, ZAC 1/50
  1. Set-up supply of electricity 230 V,50 Hz – cable CYKY 3Cx1,5
  2. Set-up niche for flush mounting – size as per installed source
  3. Distribution to each device is carried out by cable CYKY 2Ax1,5
ZAC 1/36 L
  1. It is installed on the DIN-rail - width of 4 modules


Figure
ZAC 1/20

ZAC 1/50





Product title
ZAC 1/20 -
power supply for up to 3 devices - 230V, 50Hz
ZAC 1/50 -
power supply for up to 8 devices - 230V, 50Hz
ZAC 1/36L -
power supply for up to 6 devices - 230V, 50Hz
Артикул: AZP-ZAC 1-20 ,   Время доставки: 3-4 недели
70,75 €

PREMIX COMFORT
Ref. 731300

Group thermostatic mixing valve for mixed water distribution from 32° to 42°C:
Anti-scalding safety.
Regulation of temperature variations.
Non-return valves and filters accessible from the exterior without having to remove the mechanism.
Thermal cartridge with no specific lever needed (push-button on the control knob).
Interchangeable cartridge with automotive cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C mini.
Pressure differences at the entrance: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 to 10 bar (1 to 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring).
For bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
90 lpm - M1".

Артикул: DE-731300 ,   Время доставки: 14-21 день
1056,00 €

SECURITHERM shower panel
Ref. 792413

SECURITHERM electronic thermostatic shower panel:
Large stainless steel panel for wall-mounted, exposed installation.
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding safety: automatic shut-off if cold or hot water supply fails.
Thermal shocks are possible.
Battery-operated with 223 6V Lithium battery.
Shower starts when hand is 4cm from the infrared sensor.
Shuts off on demand or automatically after ~60 seconds.
Duty flush (~60 seconds every 24 hours after the last use).
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
Concealed fixings.
Filters and non-return valves.
M1/2" stopcocks.

Артикул: DE-792413 ,   Время доставки: 14-21 день
1456,00 €

SECURITHERM shower panel
Ref. 792514

Electronic thermostatic shower panel:
Large stainless steel panel for wall-mounted, exposed installation.
Concealed inlet via flexibles M½".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding safety: automatic shut-off if cold or hot water supply fails.
Thermal shocks are possible.
Mains supply 230/6V.
Shower starts when electronic push-button is pressed.
Shuts off voluntarily or automatically after ~60 seconds.
Duty flush (~60 seconds every 24 hours after the last use).
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
Integrated soap dish.
Filters and non-return valves.
Stopcocks M1/2".
Concealed fixings.

Артикул: DE-792514 ,   Время доставки: 14-21 день
1243,00 €
