448 x 1348 x 220 mm
1 paper roll / 48 l

• Combination consisting of a sensor paper roll dispenser (mains-operated) and a waste bin in robust, germ-reducing and easy-care stainless steel (AISI 304).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
  Further available surfaces: see below.
• Paper roll dispenser with touch-free operated, capacitive sensor technology, sensor distance approx. 3.5 cm. Paper length and idle time adjustable.
  Mains-operated 230 V / 50 Hz; power rating 7 Watt; mains cable on site. TÜV/GS-tested and certified.
• Designed for one paper roll with dimensions:
  Width 215 mm, outer diameter max. 180 mm, inner diameter 50 mm.
• Inspection slot to indicate fill level, residual roll function allows a reserve roll to be inserted before residual roll is completely used up.
• Waste bin equipped with removable mesh basket.
  Capacity approx. 48 l.
• Accessible through lockable doors.
• Keyed alike cylinder locks in corrosion-resistant zinc die-casting.
• Wear parts can be replaced as modules.
• Mounting: With six screws through key holes and one optional anti-theft hole in the back wall.
• Delivery includes fixing material and first fill with one paper roll.

• Weight (in kg): 25,8

148 x 148 x 120 mm
1000 ml soap tank

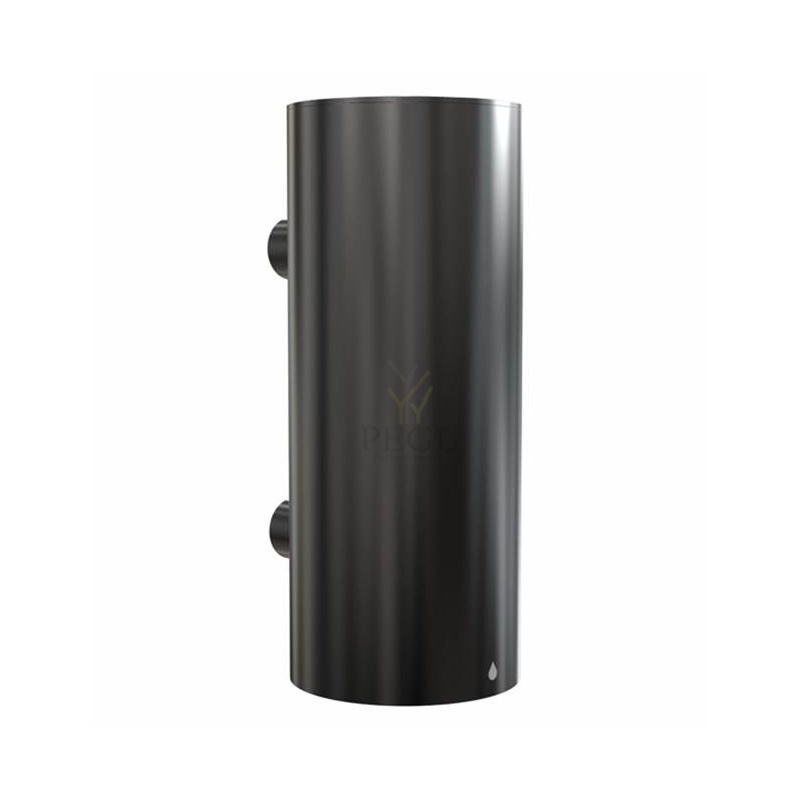

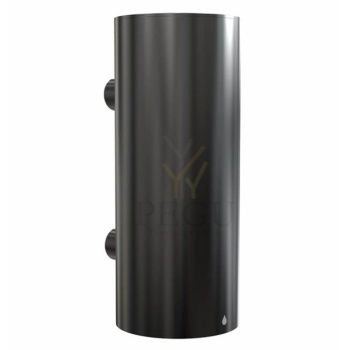

• Liquid soap dispenser in robust, germ-reducing and easy-care stainless steel (AISI 316L).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
  Further available surfaces: see below.
• One-hand operated and non-drip soap pump with 1000 ml tank and pressure valve in brass.
• Tank with large, lockable refill opening.
• Designed for standard liquid soaps.
• Accessible for refilling through lockable, removable front panel with fall protection.
• Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
• Wear parts can be replaced as modules.
• Mounting: With four screws through key holes and one optional anti-theft hole in the back wall.
• Delivery includes fixing material.

• Weight (in kg): 2,0

Be-Line® wall-mounted toilet brush set with lid
Ref. 4051C

WP 500 COVERING FRAME 768648

for 298 x 1348 mm
