Продавец: PEGU OÜ

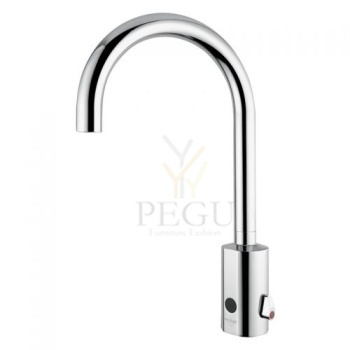

Mechanical mixing with side lever

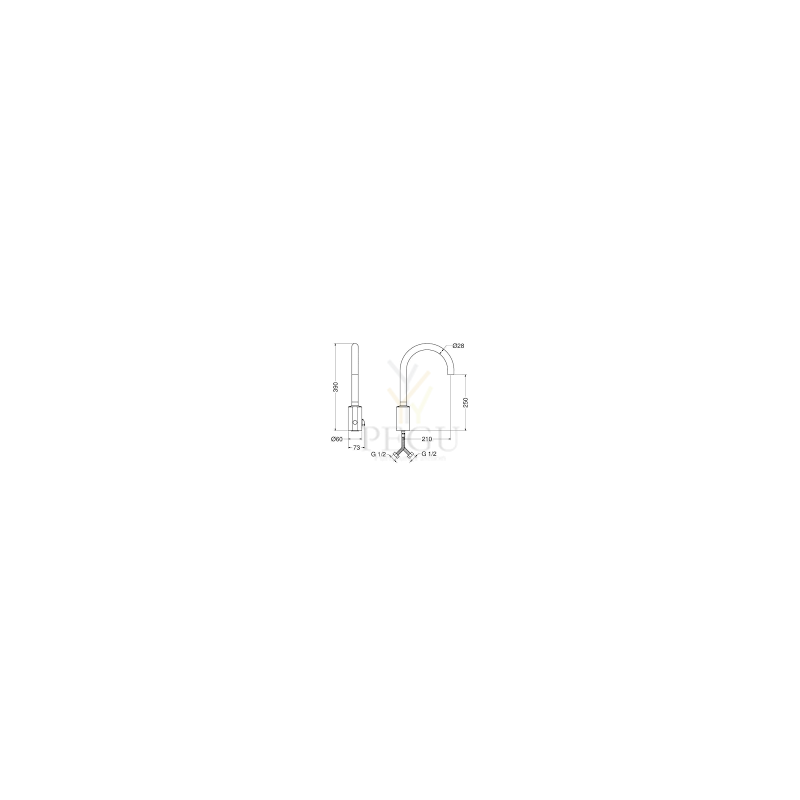

Swivel spout H=250 mm, projection 200 mm
Infrared sensor with ON/OFF mode
Vandal proof stop after 1 min of continuous flow
Automatic anti-legionella water flow every 24h after last use
Long-life 6V lithium battery (220,000 cycles)
Sealed battery box for installation under basin
Sensoriga valamusegisti
kroom
VOLTA
Presto
kroom
• Winner of a Red Dot Design Award!
• Holds approx. 9,5 dl liquid soap (= 800-950 doses).
• Battery-operated. Connection to power supply via a transformer.
• An intelligent sensor automatically sets the best sensor range.
• LED light indicates when dispenser is in use.
• Comes in trendy matt black and classic white as standard.
• Also available in all RAL colours and coated with different prints.
• Top plate in 6 optional standard designs.
• 2-year warranty.
| SPECIFICATIONS | |
|---|---|
| Product number: | 3056 / EAN no. 5-709818-030562 |
| Technical data: |
Touch-free soap dispenser for liquid soap/disinfectant. Matt black steel housing (RAL 9005, gloss 3). Equipped with top plate. Capacity: 9,5 dl. Battery-operated.
|
| Dimensions | H: 330 mm, W: 139 mm, D: 127 mm |
| Net Weight: | 2.3 kg |
AFO 01.Y is st. stainless wall hung drinking fountain controlled by sensor. Water runs after disrupting the scanning zone.
Fountain is made by welding all components together.
Fountain is suppplied with safety power 12 V, 50 Hz from power supply ZAC (AFO 01.Y) or with 4x AA battery (AFO 01.YB).
Material is standardly st. steel AISI 304 or can be AISI 316 (AFO 01.Y.CL or AFO 01.YB.CL).
St. steel driking fountain AFO 01.Y is based on favourite model AFO 01 with manual control.
The sensor, located on the right side of the fountain, is reacting on the approach of the user. Water starts to run from the nozzle, located in the middle of the fountain bowl, and runs over the time when the user´s head is in the scanning zone (max. 30 sec.) + preset time (max. 4 sec.) to clean the nozzle.
| water inlet | G 1/2" |
| water pressure | 1 - 10 Bar (AFO 01.Y; AFO 01.Y.CL) |
| 2 - 8 Bar (AFO 01.YB; AFO 01.YB.CL) | |
| outlet | d = 40 mm |
| bowl inner dimension | d = 245 mm |
| weigth | 4 kg |
| suppply | 12 V, 50 Hz (AFO 01.Y; AFO 01.Y.CL) |
| 6 V - 4 x AA battery (AFO 01.YB; AFO 01.YB.CL) | |
| power supply | ZAC 1/20 (max. 3 x AFO 01.Y ; AFO 01.Y.CL) |
> Working pressure : 1 to 5 bar
> Flow : 3 l/min with integrated flow limiter High quality anti-limescale aerator Anti-water-hammering design
> Hydraulic supply : G 3/8" (12x17)
> Power supply : Integrated 6V CRP2 lithium battery
> Material and colour finish : Injected molded metal body and cover Chrome finishing
> Thermal resistance : Resistant to a temperature of 75°C for 30 minute thermal shocks
> Security : Temperature limiting system to avoid any risk of scalding Anti-overflow security time is set to 30 seconds Anti-blocking system preventing the water to flow continuously
> Delivered with : 1 Brass clamping nut 1 Gasket and 1 Washer 2 PEX Hoses with revolving nuts and NF check valves 2 MM G 3/8" (12x17) Stop valves 2 Filter gaskets 1 Self-adhesive sticker Instruction manual
> Standards & approvals : Molded chrome-plated body in accordance with EN 12540 Brass in accordance with NF EN1982, EN12164, EN12165 200-hour neutral salt spray resistant (NSS) in accordance with NF ISO 9227
> Working pressure : 1 to 5 bar
> Flow : 1.9 l/min with integrated flow limiter High quality anti-limescale aerator Anti-water-hammering design
> Hydraulic supply : G 3/8" (12x17)
> Power supply : Integrated 6V CRP2 lithium battery
> Material and colour finish : Injected molded metal body and cover Chrome finishing
> Thermal resistance : Resistant to a temperature of 75°C for 30 minute thermal shocks
> Security : Temperature limiting system to avoid any risk of scalding Anti-overflow security time is set to 30 seconds Anti-blocking system preventing the water to flow continuously
> Delivered with : 1 Brass clamping nut 1 Gasket and 1 Washer 2 PEX Hoses with revolving nuts and NF check valves 2 MM G 3/8" (12x17) Stop valves 2 Filter gaskets 1 Self-adhesive sticker Instruction manual
> Standards & approvals : Molded chrome-plated body in accordance with EN 12540 Brass in accordance with NF EN1982, EN12164, EN12165 200-hour neutral salt spray resistant (NSS) in accordance with NF ISO 9227
