Idral комплект с педальным краном, напольный
Бренд:
Единица: шт
Время доставки: 14-21 день
Попробуй промокод PEGU-KEVAD! Выбери товар по полной цене, добавь в корзину, и введи код купона при покупке! Время работы промокода ограничено!

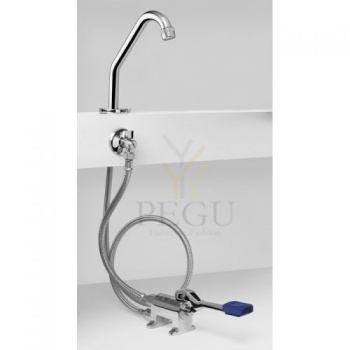

Complete assembling kit including pedal tap and spout

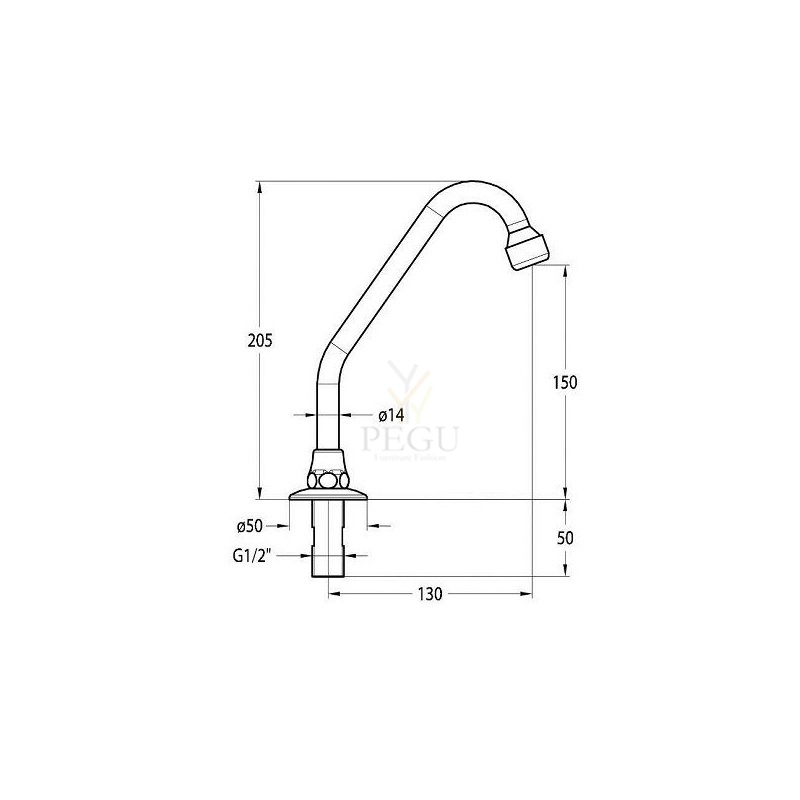

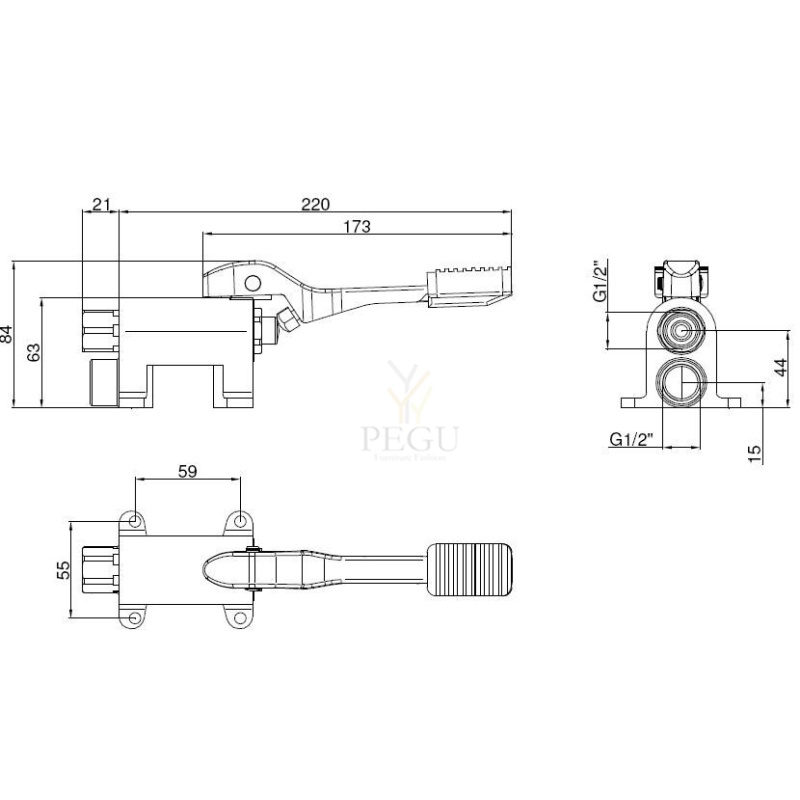

It includes: pedal tap art. 02061, spout art. 02024, water connections with flexibles, check valves with filter
Файлы
Питьевой фонтан с системой охлаждения, возможность набора воды в бутылку, пол/стена пьезо кнопка, Н/Р сталь AISI304 230V/50Hz
AFO 01.SCL
drinking fountain with cooling and spout for filling bottles designed to stand and to be attached to wall
AFO 01.SCL is a drinking fountain with cooling and spout for filling bottles designed to stand and to be attached to wall. User can select between uncooled water and water running through a flow cooler. Uncooled water is used for bottle filling as a standard – can be changed. Start/stop control by piezo-buttons – resistant solution. Facility keeper can set a time period after which the water flow automatically stops.
The product contains a flow cooler. It is not a design with cooled tank only where – after the pre-cooled amount of water is pumped out – the user has to wait for the next charge to be cooled.
Water supply is provided by a flexible hose, trap comprises an elastic flexible couple. Flexible design of water supply and outflow allows variable and easy connection of the drinking fountain as well as its dismounting.
Automatic drinking fountain (with a sensor) can be supplied per order.
AFO 01.SCL is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).
Package contents
- Stainless housing with cone
- Electronics and control piezo-buttons
- Water supply and electromagnetic valves
- Flow cooler
- Flexible hose outflow
- Fixing and connecting material
| dimensions | 330 x 900 x 365 mm |
| water outlet | d = 40 mm |
| water inlet | G 1/2" |
| water pressure | 0,2 – 0,6 MPa, recommended 0,3 MPa |
| power supply | 230 V, 50 Hz |
| power input | 830 W |
| weight | 25 kg |
- Set up water outlet d = 40 mm
- Set up water inlet G 1/2"
- Electric socket 230 V, or set up electric cable CYKY 3C x 1,5
> Working pressure : 1 to 5 bar
> Flow : 6 l/min at 3 bar - 4-position flow adjustment device Anti-water-hammering design
> Flow time : 15 seconds (± 5 sec.)
> Hydraulic supply : In-line water inlet M G 1/2" Inlet and outlet Cold water
> Thermal resistance : Resistant to a temperature of 75°C for 30 minute thermal shock
> Security : Patented anti-blocking "S" system to avoid the water to flow continuously
> Delivered with : 1 Cross-partition control (1 to 200 mm thick) 1 Short wall spout (Non-rotating fixing) 87 mm 1 Closing tap with S anti-blocking system 1 stop valve M 1/2" (15x21) / M 1/2" (15x21) with quick couplings (12x14 mm) Instruction manual
> Standards & approvals : Brass body in accordance with EN 1982, EN 12164, EN 12156 Molded chrome-plated body in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 922
PREMIX SECURITY
Ref. 731055
Group thermostatic mixing valve for hot water circulating loops adjustable from 44°C to 58°C:
Anti-scalding safety.
Regulates temperature variations.
Non-return valves and filters accessible from the exterior without having to remove the mechanism.
Thermal cartridge with no specific lever needed (push-button on the control knob).
Interchangeable cartridge with thermostatic cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C mini.
Pressure differences at the entrance: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 to 10 bar (1 to 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring) for bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
15% energy savings: optimised heat loss (comparison between a circulating loop at 55°C and a non-circulating system at 70°C).
Safety and prolongation of system life span (Hot water at >65°C leads to premature aging within the system).
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
190 lpm - M1 1/2".
PREMIX COMFORT
Ref. 731004
Group thermostatic mixing valve for mixed water distribution from 32° to 42°C:
Anti-scalding safety.
Regulation of temperature variations.
Non-return valves and filters accessible from the exterior without having to remove the mechanism.
Thermal cartridge with no specific lever needed (push-button on the control knob).
Interchangeable cartridge with automotive cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C mini.
Pressure differences at the entrance: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 to 10 bar (1 to 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring).
For bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
140 lpm - M1 ¼".
PREMIX NANO thermostatic mixing valve
Ref. 732012
Hot water thermostatic mixing valve for mixed water distribution from 34 - 60°C:
For 1 to 2 taps or 1 shower.
Anti-scalding safety: automatic water shut-off in case of hot or cold water supply failure.
Temperature pre-set at 38°C, can be adjusted by the installer from 34 - 60°C.
Non-return valves and filters.
Minimum flow rate for operation: 3 lpm.
Thermal shocks are possible.
Nickel-plated body, inlets F3/8" and outlet M3/8".
