General description

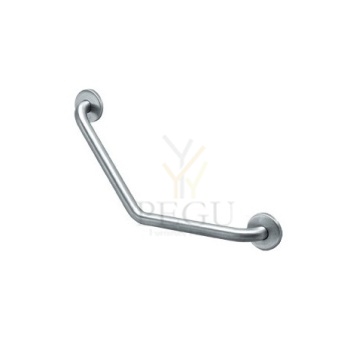

•   Wall-mounted steel white grab bar with three support points, made of diameter 32 mm tube, designed for ensuring the safety in the wash basin area, preventing falls throughout this place.

•   With white Polypropylene snap flange covers to conceal the screws, designed to snap on easily for a snug fit. They protect the flange surfaces from damage, dust, moisture and foreign particles and help to achieve a beautiful and sleek look, at the same time.

•   Suitable for domestic and commercial places to design barrier-free accessibility, enabling access and assisting mobility of people with disabilities, or special needs, helping make their lives easier.

•   Optionally, these bars can be electrically isolated by installing the electrical isolation Kit code KA0010.

•   Fixing screws for brick walls included.

  Components and materials

•   BFD600: grab bar right hand, made of diameter 32 mm AISI 304 stainless steel tube, white finish.

•   BFI600: grab bar left hand, made of diameter 32 mm AISI 304 stainless steel tube, white finish.

•   TUBING: made of 32 mm diameter tube, seamless construction. The bending process guarantees the uniformity of the diameter along

  the bends.

•   CONCEALED MOUNTING FLANGE: three units made of steel, 3 mm thick. Incorporates three Ø 6.5 mm screws holes for wall

  mounting.

•   SNAP FLANGE COVER: three units made of Polypropylene, 1.5 mm thick and Ø 85 mm. Each cover snaps over mounting flange to
