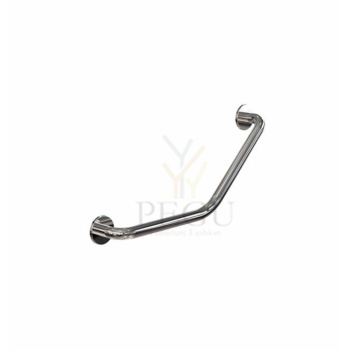

Инвалидная ручка Frost Grab rail 1 Н/Р сталь полированная
Бренд:
Единица: шт
Время доставки: 14-21 день
Попробуй промокод PEGU-KEVAD! Выбери товар по полной цене, добавь в корзину, и введи код купона при покупке! Время работы промокода ограничено!
Duššiiste seinale
183,00 €
The supporting armrest provides assistance to those with limited strength and mobility.
Technical specifications
Dimensions 825 x 807 x 100 mm
Bar and leg diameter Wall plate thickness Ø 32 mm 3,0 mm
Paper roll dispenser diameter Ø 10 mm
201,00 €
-
Components y materials
-
FOLDING BAR: folded in a trapezoidal shape and manufactured with a 32 mm diameter AISI 304 stainless steel tube satin finish. Both bar ends are welded to the vertical column, made of a 32 mm diameter stainless steel AISI 304 tube. The grip zones of the bar have a safety anti-slip finish to improve the user safety. It incorporates a paper roll holder 120 mm length, made of a 6 mm diameter AISI 304 stainless steel rod.
-
WALL MOUNTING PLATE: made of an AISI 304 stainless steel satin finish rectangular plate of 125 x 100 mm and 10 mm thick. It incorporates four Ø 8 mm countersunk holes, to fix the bar to the wall.
-
FLOOR MOUNTING PLATE: made of an AISI 304 stainless steel satin finish circular plate of Ø 75 mm and 5 mm thick. It incorporates three Ø 7 mm countersunk holes to fix the bar on the floor.
-
UNLOCK HANDLE: made of black thermoplastic.
BG0089CS Satin finish
Technical specifications
Dimensions
Grab bar and column diameter Wall mounting plate thickness Floor mounting plate thickness Paper roll holder diameter
700 x 835 x 100 mm
Ø 32 mm 10.0 mm 5.0 mmØ 6.0 mm
542,00 €
Description
Be-line® matte white angled grab bar 135°, 220 x 220mm
Ref. 511983W
Be-line® angled grab bar 135°, Ø 35mm, for people with reduced mobility.
For use as a handrail (horizontal part) or as a grab rail (135° part), for WCs, showers or baths.
Universal for either left or right side.
Aluminium tube thickness 3mm. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte white powder-coated aluminium; provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
3 fixing points prevent the hand from getting trapped and simplify installation.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 220 x 220mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Technical features
Be-line® matte white angled grab bar 135°, 220 x 220mm
Ref. 511983W
| Height | 220mm |
|---|---|
| Length | 220mm |
| Width to the wall | 38mm |
| Thickness | 3mm |
| Finish | Matte white powder-coated aluminium |
