7130.jpg Zoom

Kavika ванна на ножках

Артикул: KAV7130
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
1075,00 €
Kuumakse alates: 91,38 €
Кол-во: - +
   - или -

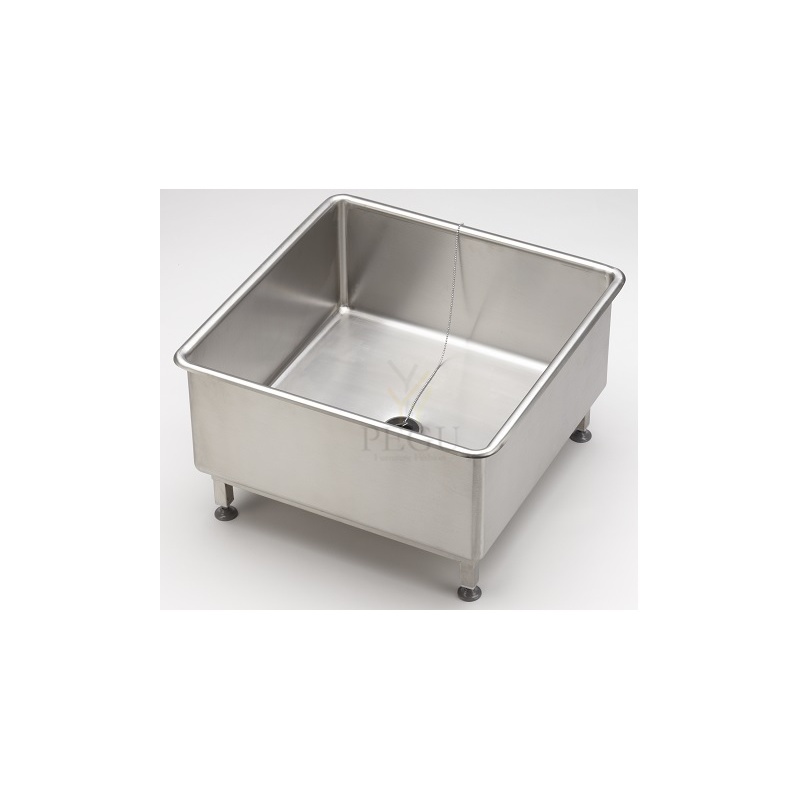

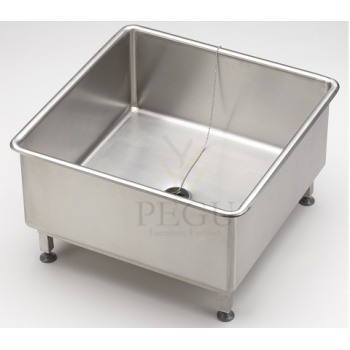

Saappaidenpesuallas 7130

Saappaidenpesuallas 7130 on omilla jaloilla seisova allas, joka on suunniteltu käytettäväksi esim. päiväkodeissa kumisaappaiden ja kuravaatteiden huuhteluun sekä teollisuudessa hätäsuihkualtaaksi.

Tuote on kotimainen ruostumattomasta teräksestä valmistettu monikäyttöinen allas. Altaan reunat on pyöristetty turvallisiksi.

Altaan ulkomitat ovat 600x600x350 mm, sisämitat 550x550x250 mm. Allasta valmistetaan myös erikoismitoin.

Altaan mukana toimitetaan pohjaventtiili sekä pohjatulppa helmiketjulla. Altaan jaloissa on säätötassut, joilla se on helppo asentaa suoraan.

Схожие продукты

Aasia WC, R/V teras AISI 304

Артикул: PPT ,   Время доставки: 7-21 дней
549,00 €
Водяной трап Н/Р сталь, D75 mm вертикальный, 150x150mm

On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Артикул: AZP-PV 01.D.75.P ,   Время доставки: 3-4 недели
423,00 €

Splashback 2400mm for CANAL wash trough
Ref. 100300

Splashback for CANAL wash trough.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Length: 2,400mm.



TECHNICAL FEATURES

Splashback 2400mm for CANAL wash trough
Ref. 100300

Height 300mm
Length 2400mm
Width 1.5mm
Thickness 1.2mm
Finish 304 polished satin stainless steel
Артикул: DE-100300 ,   Время доставки: 14-21 день
474,00 €

DRINKING SYSTEM

  • Frost-free drinking system for cattle and horses
  • Fresh and clean water for the animals all year round
  • Without wiring or electricity
  • A minimum of maintenance
  • No concern about filling the drinking vessels
  • No concern about cleaning the drinking vessels

Automaatjootjad sobivad kasutamiseks nii karjamaal kui ka tallides ning nende läheduses asuvates joogikohtades.
Jootjaid on lihtne kasutada ning hobused saavad kiiresti aru, et mugavam on vee juurdevoolu avamiseks vajutada klapile
mitte nina otsaga vaid selle ülaosaga. Kui koon (mokad) on joomiseks vabad, joobki hobune loomulikul viisil vee pindmiselt
kihilt. Seetõttu olemegi valinud jooginõuks lai ja sügav kauss, et tekiks joomiseks mugav veepind.

Töötamise põhimõte
Tõusutoru on varustatud isetühjeneva 3-tee
ventiiliga, mis on paigaldatud kaevu, mis omakorda
on süvistatud pinnasesse.
Kui jootjat ei kasutata on veest tühi nii ventiil kui
ka tõustoru, milles olev vesi võiks muidu külmuda.
Nii jootja ventiil ja tõusutoru on külmumiskindlad nii
kaua kuni on külmumiskindel ka vee toitetorustik.


Артикул: FL-A342 ,   Время доставки: 14-21 день
1004,67 € (10%)
1116,30 €

Питьевой фонтан AFO04 настенный механический Н/Р сталь AISI304

AFO 04

suspension drinking fountain

AFO 04 is a stainless-steel drinking fountain of a modern design. It is manufactured with a double surface finish: matt bowl (blasted with ballotini) and brushed casing. Thanks to its interesting appearance, it particularly suits public spaces, such as sports facilities, parks, squares, business centres, fitness and wellness centres, but also schools and kindergartens.

Similarly to AFO 01, the drinking fountain is operated with a push valve. Water is flowing while the valve is pushed and for a preset time after its release, in which way the nozzle is rinsed.

The water inlet is through a flexible hose; siphon trap is made of a flexible coupling. The flexible design of the water inlet and outlet enables variable and trouble-free connection of the fountain as well as its simple dismounting.

The AFO 04 drinking fountain is made from stainless steel of the AISI 304 class; the AFO 04.CL drinking fountain is made from steel of the AISI 316 class.

Package contents

  • stainless steel casing
  • press valve
  • corner valve with filter
  • fixing bar
  • siphon
  • connecting hose
  • anchoring material
Water inlet G 1/2"
Water pressure 2 - 6 Bar (recommended 3 Bar)
Outlet d = 40 mm
Inner dimension of the fountain d = 245 mm
Weight 4 kg
  • Set-up water inlet - pipe G1/2“.
  • Set-up drainage d = 40 mm.




Артикул: AZP-AFO04 ,   Время доставки: 3-4 недели
921,00 €
