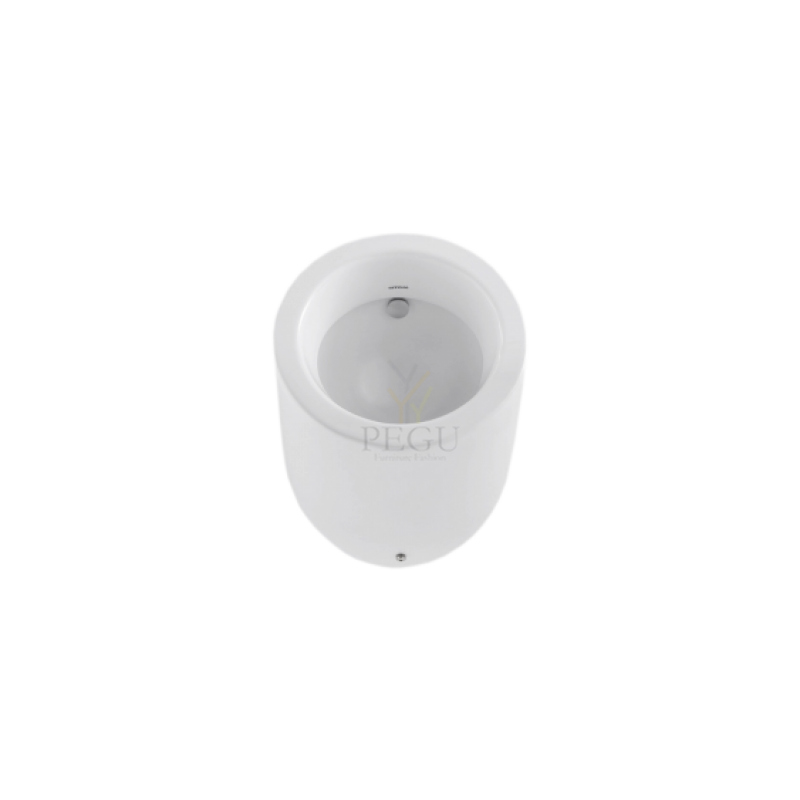

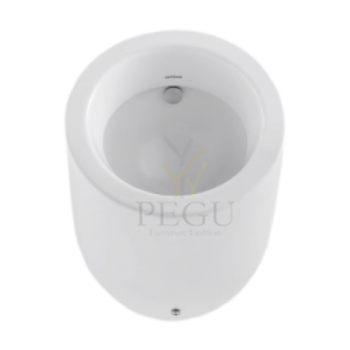

Керамический писсуар WCA с радаром Sanela, с встроенным источником питания 230V/ AC

Артикул: SA-SLP82RZ
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
1244,40 €
Kuumakse alates: 105,77 €
Кол-во: - +

Керамический писсуар WCA с радаром Sanela,  с встроенным источником питания 230V/ AC

SLP 82RZ



Urinal WCA with radar flushing unit, 230 V AC



Characteristics

  • economy flushing by 1 liter of water
  • easy installation by the help of paper drill template
  • whole flushing unit is placed behind the urinal
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
  • automatic flushing after each 6 hours non-use
  • possibility to regulate a water flow by the angle valve
  • radar flushing unit recharges a water to the siphon after each flushing
Code SLP 82RZ
Order number 01822


Supply specification

SLP 82RZ - Supply No. 01822 - ceramic urinal with the radar flushing unit, electromagnetic valve, connecting hoses, angle valve, inlet fitting, siphon, paper drill template, mounting set, power supply

Technical information

Operating voltage: 230 V AC/50 Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting

Видео



Файлы

Схожие продукты

Коллективный писсуар 1800 mm нержавеющая сталь

Артикул: PURM-1800 ,   Время доставки: 3-4 недели
1715,00 €

automatic washing system for wellingtons with jets - 12V, 50Hz


Radius of sensor 0 – 0,4 m
Water inlet G 1/2“
Water pressure 0,3 – 1,0 MPa
Outlet d = 32 mm
Inner dimensions of the trough 250 x 400 x 280 mm
Electricity protection IP 55
Power supply 12 V, 50 Hz
Power requirement 10 VA
Source of power supply ZAC 1/20 (max. 2 x AMO 01)
  ZAC 1/50 (max. 5 x AMO 01)
Weight 18 kg
  • Set up water inlet as per picture
  • Set up outlet d = 32 mm
  • Set up cable for power supply – 12 V, 50 Hz from source of power supply ZAC
Артикул: AZP-RMO 02 ,   Время доставки: 3-5 недель
16293,00 €

Surface automatic foam soap dispenser



Automatic wall-mounted foam soap dispenser of 1 L capacity, manufactured in stainless steel AISI 304, 0.8 mm thick.

Available in four finishes (white, black, bright and satin) these soap dispenser models have a functional, robust and trendy design that matches the new range of Mediclinics bathroom accessories. This allows this soap dispenser to blend into any space perfectly.

Suitable for high traffic facilities and for public use.

Dispenses liquid soaps with neutral pH, chlorine free and density between 0.9 and 1.35 kg/dm3. Surgical soaps and soaps with solid abrasive particles are not supported.

Артикул: MDJF0038A ,   Время доставки: 7-14 дней
199,50 € (5%)
210,00 €

Писсуар Vila без крышки, с радарным устройством смыва, с встроенным источником питания, 230 В/ 50 Гц

SLP 12RZ

Писсуар Vila без крышки, с радарным устройством смыва, с встроенным источником питания, 230 В/ 50 Гц



Характеристики

  • экономичный смыв одним литром воды
  • простая установка
  • всё устройство смыва расположенно за писсуаром
  • реагирует только на пользование писсуаром (анализирует изменения, которые возникают внутри писсуара при протекании жидкости)
  • прoдoлжительнoсть смыва мoжнo настрoить 0,5 - 15,5 сек.
  • настройка параметров при помощи пульта дистанционного управления SLD 04 без демонтажа писсуара (акустическая индикация настройки)
  • самодействующий смыв после 6 часов от последнего смыва
  • возможность регулировки расхода воды шарoвым вентилем
  • после смыва устройство дополнит сифон водой
Арт. № 01125
Название SLP 12RZ


Спецификация поставки

SLP 12RZ - арт. № 01125 - керамический писсуар с радарным устрoйствoм смыва, мoнтажная пластмассoвая кoрoбка с латунным резьбoвым сoединением, электрoмагнитным клапанoм и шарoвым вентилем, выпускной патрубок с уплотнением, сифон, крепежный комплект, источник питания

Технические данные

Размер мoнтажней кoрoбки: 140 x 140 x 75 мм
Питающее напряжение: 230 В
Рабочее давление: 0,1 - 0,6 MПа
Расход воды: 18 л/мин. (инф. пар.)
Подача воды: наруж. резьба G 3/4“
Выход воды: выпускной патрубок c уплотнением
Артикул: SA-SLP12RZ ,   Время доставки: 14-21 день
1256,00 €

Керамический писсуар Antero с радаром Sanela,  интегрированный источник питания 240V/ AC

SLP 20RZ



Urinal Antero with a radar flushing unit and integrated power supply, 230 V AC



Characteristics

  • easy installation
  • whole flushing unit is placed behind the urinal
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
  • automatic flushing after each 6 hours non-use
  • possibility to regulate a water flow by the angle valve
  • radar flushing unit recharges a water to the siphon after each flushing
Order number 01205
Code SLP 20RZ


Supply specification

SLP 20RZ - Supply No. 01205 - ceramic urinal with radar flushing unit, electromagnetic valve, connecting hoses, angle valve with a filter and check valve, inlet fitting with a rubber sealing, mounting set, power supply

Technical information

Operating voltage: 230 V AC/50 Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber seal
Артикул: SA-SLP20RZ ,   Время доставки: 14-21 день
2589,00 €
