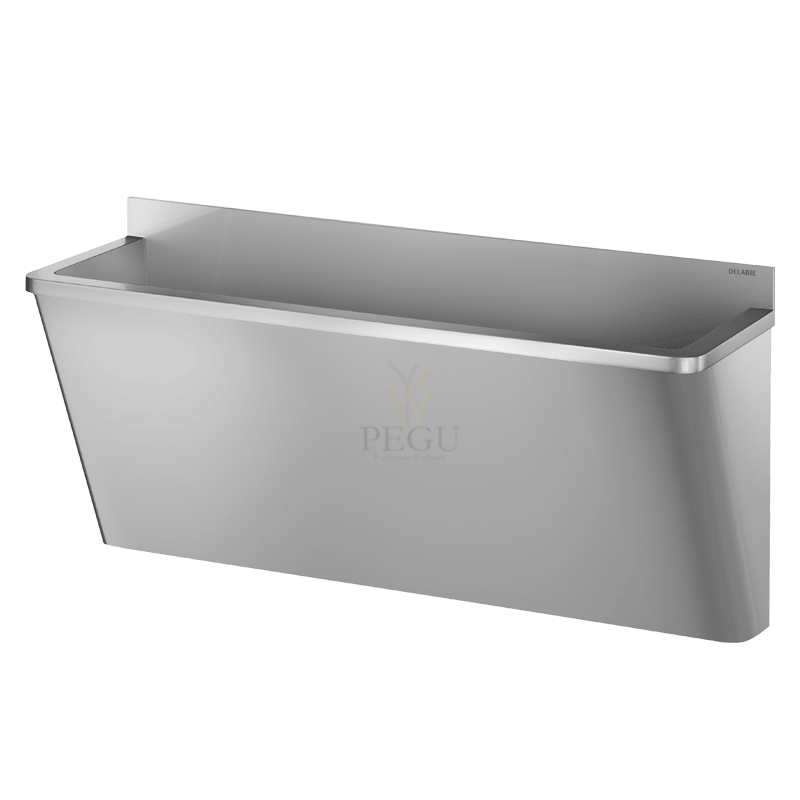

Коллективная хирургическая раковина "Hygiene+" 2 места 1400mm нержавеющая сталь сатин AISI304

Артикул: DE-186020
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена: 3422,00 €
3079,80 €
Kuumakse alates: 261,78 €
Кол-во: - +
   - или -

Коллективная хирургическая раковина "Hygiene+" 2 места 1400mm нержавеющая сталь сатин AISI304

Хирургическая раковина Ref. 186020 разработана для профессионального использования в больницах и медицинских учреждениях. Изготовлена из бактериостатической нержавеющей стали 304 и оснащена инновационным дизайном "Hygiene+", который минимизирует зоны для размножения бактерий и облегчает очистку. Раковина имеет низкий защитный экран (75 мм), слив справа и крепежные элементы в комплекте.

Основные характеристики:

  • Настенное крепление
  • Низкий защитный экран: 75 мм
  • "Hygiene+": скрытый слив, уменьшение зон для размножения бактерий
  • Гладкая поверхность и скрытый сифон для легкой очистки
  • Изготовлена из бактериостатической нержавеющей стали 304
  • Толщина: 1,2 мм
  • Без отверстий для смесителя
  • Сертификат CE, соответствует стандарту EN 14296

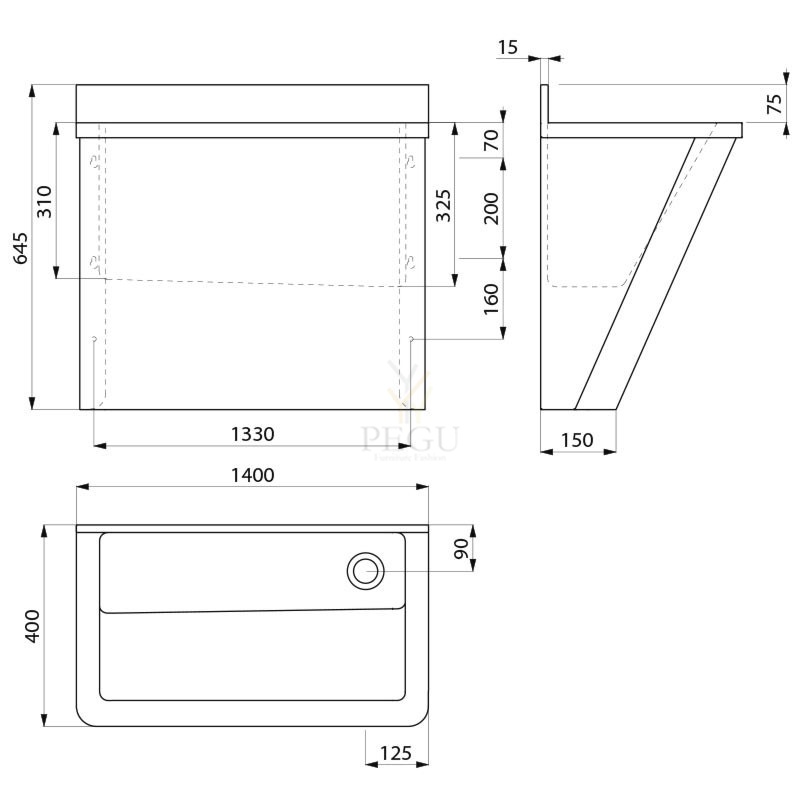

  • Размеры: высота 645 мм, ширина 400 мм, длина 1400 мм
  • Вес: 26.6 кг

Surgical scrub-up trough with low upstand
Ref. 186020

Wall-mounted surgical scrub-up trough with 75mm upstand.
Suitable for hospitals and healthcare facilities.
Bacteriostatic 304 stainless steel. Polished satin finish. Stainless steel thickness: 1.2mm.
Length 1,400mm, 2 services. Without tap hole.
Smooth surface and rounded inside edges for easy cleaning.
"Hygiene+": reduces niches where bacteria can develop, concealed trap, easy to clean.
Drainage on the right. Without overflow. Supplied with fixing elements.
Weight: 26.6kg.

Файлы

Схожие продукты
Антивандалльная душевая пьезо кнопка Н/Р сталь, для смешанной воды,  без адаптора



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Артикул: AZP-AUS 11 ,   Время доставки: 3-4 недели
375,00 €

Splashback 2400mm for CANAL wash trough
Ref. 100300

Splashback for CANAL wash trough.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Length: 2,400mm.



TECHNICAL FEATURES

Splashback 2400mm for CANAL wash trough
Ref. 100300

Height 300mm
Length 2400mm
Width 1.5mm
Thickness 1.2mm
Finish 304 polished satin stainless steel
Артикул: DE-100300 ,   Время доставки: 14-21 день
426,60 € (10%)
474,00 €

DRINKING SYSTEM

  • Frost-free drinking system for cattle and horses
  • Fresh and clean water for the animals all year round
  • Without wiring or electricity
  • A minimum of maintenance
  • No concern about filling the drinking vessels
  • No concern about cleaning the drinking vessels

Automaatjootjad sobivad kasutamiseks nii karjamaal kui ka tallides ning nende läheduses asuvates joogikohtades.
Jootjaid on lihtne kasutada ning hobused saavad kiiresti aru, et mugavam on vee juurdevoolu avamiseks vajutada klapile
mitte nina otsaga vaid selle ülaosaga. Kui koon (mokad) on joomiseks vabad, joobki hobune loomulikul viisil vee pindmiselt
kihilt. Seetõttu olemegi valinud jooginõuks lai ja sügav kauss, et tekiks joomiseks mugav veepind.

Töötamise põhimõte
Tõusutoru on varustatud isetühjeneva 3-tee
ventiiliga, mis on paigaldatud kaevu, mis omakorda
on süvistatud pinnasesse.
Kui jootjat ei kasutata on veest tühi nii ventiil kui
ka tõustoru, milles olev vesi võiks muidu külmuda.
Nii jootja ventiil ja tõusutoru on külmumiskindlad nii
kaua kuni on külmumiskindel ka vee toitetorustik.


Артикул: FL-A342 ,   Время доставки: 14-21 день
1004,67 € (10%)
1116,30 €

BOWL

  • Frost-free drinking fountain
  • Made from masive and from glass peened stainless steel
  • Suitable for schools, urban space etc.
  • Beautiful design
  • Without any sharp edges
  • Automatic closing grip
  • Reduces water wastage
Артикул: FL-F200 ,   Время доставки: 21 день
6450,75 € (10%)
7167,50 €

Питьевой фонтан настенный сенсорный  для бассейнов Н/Р сталь AISI316(бассейны) 12V/50Hz

AFO 01.Yst. steel sensor controlled drinking fountain

AFO 01.Y is st. stainless wall hung drinking fountain controlled by sensor. Water runs after disrupting the scanning zone.

Fountain is made by welding all components together.

Fountain is suppplied with safety power 12 V, 50 Hz from power supply ZAC (AFO 01.Y) or with 4x AA battery (AFO 01.YB).

Material is standardly st. steel AISI 304 or can be AISI 316 (AFO 01.Y.CL or AFO 01.YB.CL).

St. steel driking fountain AFO 01.Y is based on favourite model AFO 01 with manual control.

The sensor, located on the right side of the fountain, is reacting on the approach of the user. Water starts to run from the nozzle, located in the middle of the fountain bowl, and runs over the time when the user´s head is in the scanning zone (max. 30 sec.) + preset time (max. 4 sec.) to clean the nozzle.

Package contents

  • st. steel drinking fountain
  • nozzle
  • sensor and electronic
  • electromagnetic valve
  • connecting flexible hose
  • corner valve with filters
  • siphon
  • mounting material
water inlet G 1/2"
water pressure 1 - 10 Bar (AFO 01.Y; AFO 01.Y.CL)
  2 - 8 Bar (AFO 01.YB; AFO 01.YB.CL)
outlet d = 40 mm
bowl inner dimension d = 245 mm
weigth 4 kg
suppply 12 V, 50 Hz (AFO 01.Y; AFO 01.Y.CL)
  6 V - 4 x AA battery (AFO 01.YB; AFO 01.YB.CL)
power supply ZAC 1/20 (max. 3 x AFO 01.Y ; AFO 01.Y.CL)

Артикул: AZP-AFO01.YCL ,   Время доставки: 3-4 недели
1159,00 €
