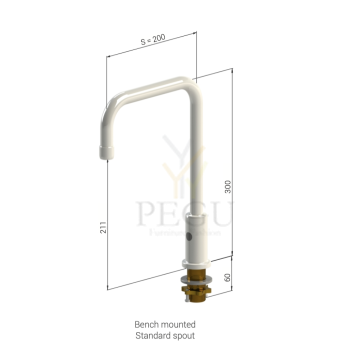

Кран лабораторный с сенсором на холодную воду. S=200mm.220V

Артикул: B-26010171035-52
Бренд:
Единица: комплект
Время доставки: 14-21 день
Цена:
1039,00 €
Kuumakse alates: 88,32 €
Кол-во: - +
   - или -

Laborikraan Broen-Lab Sensoriga tööpinnale. S=200mm.220V

Pöördepiiraja 110 kraadi. Valge (RAL0008500)

Broen-LAB



Specifications

Aerator, with flow limitation 5 L/min
Sensor operated opening and closing function with bi-stabile technology
110° limited swivel spout

Temperatur range: 5-65° (41°F - 149°F) Max. working pressure: 10 bar/145 psi

Surface

Chemical resistant Polyester Based Surface treatment, UV-resistent.
BROEN-LAB colour: 2700 (RAL colour: 0008500)

Material with media contact

Brass
Rubber, EPDM
Silicone based lubricant PPSU
SS
PA
SPX Hose

Electrical connection

Adaptor: 100-240 V AC 50/60 Hz Battery: 6 V Lithium

Hose

Supplied with hoses.

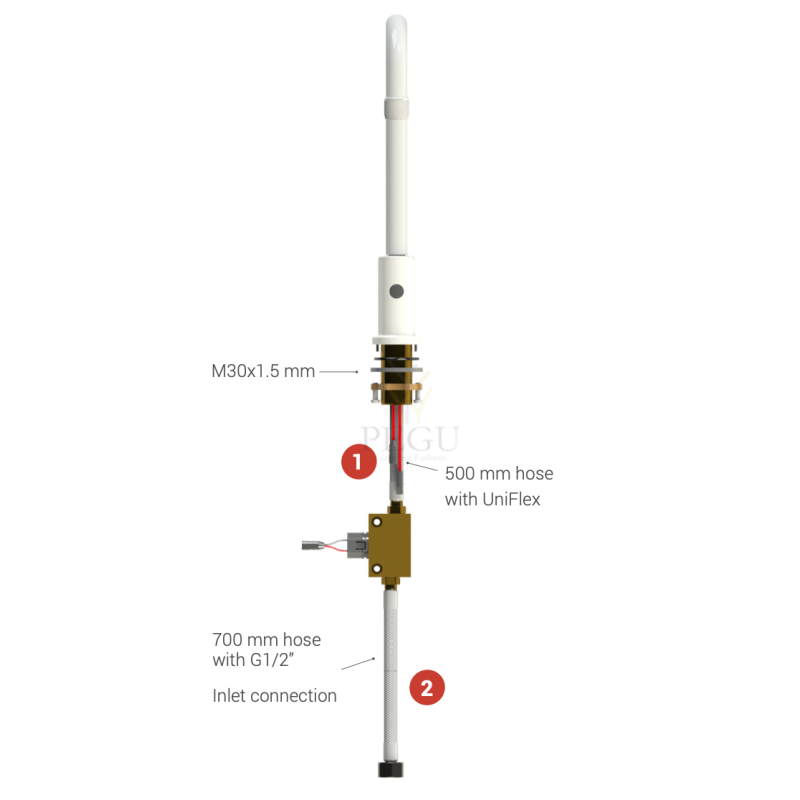

Hose (1) on the picture is mandatory and included. Hose (2) on the picture is optional. See in the table below which options you have for hose (2)*.
For further options contact BROEN-LAB

Схожие продукты
Weight: Approx. 7.5 kg
Eye shower, free standing,
anti-corrosive
Built-in FLOWFIX for
regulation of water fl ow
(26 l/min). Min. working
pressure: 1.5 bar.
Артикул: B-17961004 ,   Время доставки: 14-21 день
2159,00 €

PRINCIPLE SKETCH STABILET® EL / STABILINE® EL

1. Outlet including infrared sensor. Reacts when an object is in front of the spout.

2. Electronic box including transformer from mains to 12V DC.

3. STABILET® EL or STABILINE® EL valve. SPECIFICATIONS, ELECTRONIC BOX Mains voltage: 220V, 50 Hz phase, neutral and earth. Other voltage on request Operating voltage: 12V DC. Short circuit safety transformer Power consumption: Idling: 3 W. / Working: 3.5 W Built-in control of max. flow time of 45 sec Adjustable operating distance, min. 5 cm, max. 50 cm Waterproof plastic box and cable entries, IP 65 Cable length: From electronic box to STABILET EL®/ STABILINE EL®: 100 cm From electronic box to sensor: (spout)100 cm Screws and plugs included

Артикул: B-26200009 ,   Время доставки: 14-21 день
1585,00 €

Broen Lab Kraan deioniseeritud vesi S200mm, seinast PVDF

S P E C I F I C AT I O N S
Handle: Metal, BROEN-LAB POLYCOAT powder coated

with media indication according to EN13792
Hose nozzle: Removable/external G3/4 thread, metalHeadwork: Diaphragm type
Opening/closing function: 1 1/2 x 360°Temperature range: 0-65°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 0.9 kg

MATERIALS WITH MEDIA CONTACT

Metals: Stainless Steel, AISI 316Diaphragm: PTFE
Rubber: EPDM

ORDERING INFORMATION

For standard configuration please refer to the item numbers below.

Артикул: BR-25330351036-09 ,   Время доставки: 14-21 день
629,00 €

PRODUCT NUMBER 97B0810

FOR WASTE CONNECTION

S P E C I F I C AT I O N S

Temperature range: 0-80°C
Standard colour: black (other colours available on request ) Net weight: 5.4 kg
Dimensions: external 807 x 469 x 330mm (tolerance ± 1mm)

The largest polypropylene sink offered, it is suitable for cleansing of larger items. Very widely used in island benches and teacher benches.

Артикул: B-97B0810 ,   Время доставки: 2-3 nädalad
519,00 €
S P E C I F I CATIONS
Handle: Metal, BROEN POLYCOAT powder coated
Spout: Swivel action
Hose nozzle: Aerator
Cartridge: Ceramic (temperature and flow regulation type)
Opening/closing function: 25°, mixing function: ±45°
Temperature range: 0°C - 90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 2.4 kg
MATERIALS WITH MEDIA CONTACT
Metals: Brass
Plastics: POM, PTFE, SPX (hose)
Sealing: EPDM
Lubricant: Silicone based
Ceramics: Al2O3 96%
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- removable hose nozzle
MOUNTING INFORMATION
Артикул: B-25350401035-52B ,   Время доставки: 2-3 недели
589,00 €
