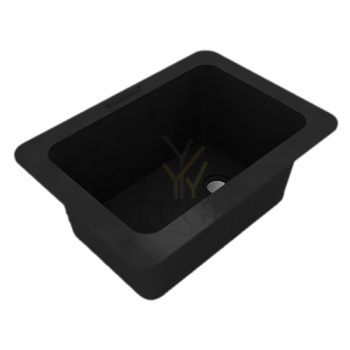

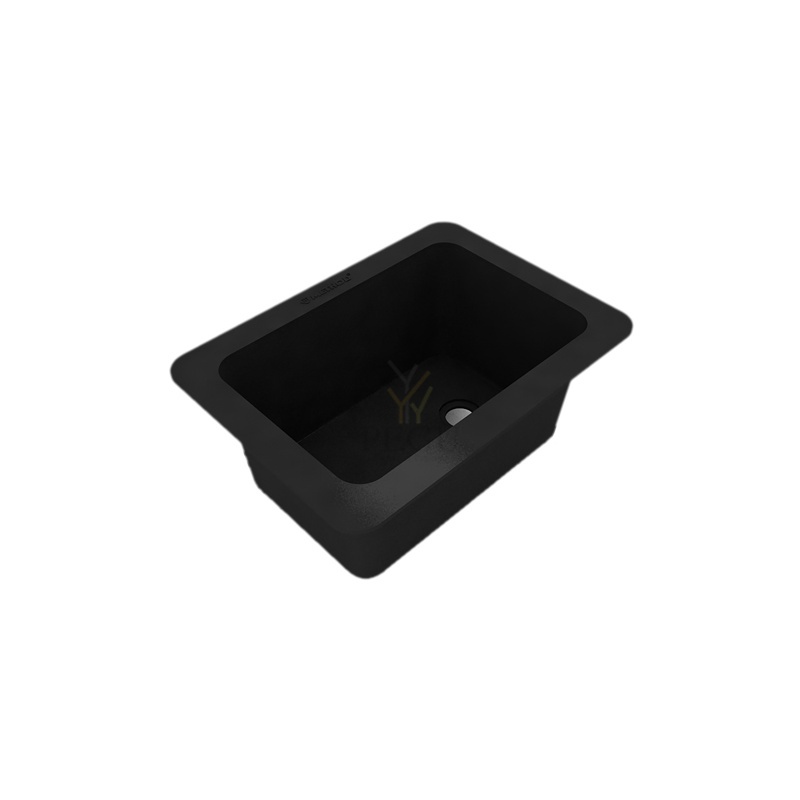

Broen Lab PP лабораторная раковина 552x400x235 (PxLxK)

Артикул: B-97B0552
Бренд:
Единица: шт
Время доставки: 2-3 nädalad
Цена: 115,00 €
103,50 €
Кол-во: - +
   - или -

Sees 492x282 (vajab põhjaklappi 97B0073)

SPECIFICATIONS
Temperature range: 0-80°C
Standard colour: black
Net weight: 2.2 kg
Dimensions: external 552 x 400 x 237mm (tolerance ± 1mm)
The rectangular sink with its self draining base are injection moulded from polypropylene copolymer resin. Designed for mounting on top or underside of work benches.
Совместимые продукты
SPECIFICATIONS
Temperature range: 0-80°C
Standard colour: black (other colours available on request )
Net weight: 0.5 kg
Dimensions: IN: 1½” BSP
OUT: 40mm (metric)
Height adjustable: telescopic bottle trap
Injection moulded from polypropylene copolymer resin, this anti-siphon bottle trap come with inlet of 1½” BSP, with black bowl.
PP BOTTLE TRAP
PRODUCT NUMBER 97B0040
PRODUCT NUMBER 97B0023
SPECIFICATIONS
Temperature range: 0-80°C
Standard colour: black (other colours available on request )
Net weight: 0.5 kg
Dimensions: IN: 1½” BSP
OUT: 40mm (metric)
Injection moulded
Артикул: B-97B0040 (97B0080) ,   Время доставки: 2-3 nädalad
36,90 € (10%)
41,00 €
SPECIFICATIONS
Temperature range: 0-80°C
Standard colour: black
Net weight: 0.2 kg
Dimensions: Ø73, 1½” BSP (tolerance ± 1mm)
Including adjustable screw on nutø
Артикул: B-97B0073 ,   Время доставки: 7-14 дней
16,20 € (10%)
18,00 €
Схожие продукты

Silmadušš seinakinnitusega

Артикул: BR-17715000 ,   Время доставки: 7-21 дней
513,00 € (10%)
570,00 €
S P E C I F I CATIONS
Handle: Metal, BROEN POLYCOAT powder coated
Spout: Swivel action
Hose nozzle: Aerator
Cartridge: Ceramic (temperature and flow regulation type)
Opening/closing function: 25°, mixing function: ±45°
Temperature range: 0°C - 90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 2.4 kg
MATERIALS WITH MEDIA CONTACT
Metals: Brass
Plastics: POM, PTFE, SPX (hose)
Sealing: EPDM
Lubricant: Silicone based
Ceramics: Al2O3 96%
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- removable hose nozzle
MOUNTING INFORMATION
Артикул: B-25350391035-52B(15304459) ,   Время доставки: 2-3 недели
441,00 €
On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Артикул: AZP-PV 01.D.75.P ,   Время доставки: 3-4 недели
214,20 € (10%)
238,00 €

S P E C I F I C AT I O N S
Handle: Metal, BROEN-LAB POLYCOAT powder coated

with media indication according to EN13792
Hose nozzle: Removable/external G3/4 thread, metalHeadwork: Diaphragm type
Opening/closing function: 1 1/2 x 360°Temperature range: 0-90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 0.9 kg

MATERIALS WITH MEDIA CONTACT

Metals: Stainless Steel, AISI 316Diaphragm: PTFE
Rubber: EPDM

ORDERING INFORMATION

For standard configuration please refer to the item numbers below.

Артикул: B-25330011036 ,   Время доставки: 14-21 день
279,00 €

SECURITHERM BIOCLIP thermostatic sink mixer

Ref. H9611P

Wall-mounted SECURITHERM thermostatic sink mixer.
Sequential: opens and closes with cold water.
Supplied with 2 removable BIOCLIP stainless steel spouts L. 136mm.
Anti-scalding failsafe: immediate shut-off if cold or hot water supply fails.
Securitouch thermal insulation prevents burns.
No risk of cross flow between hot and cold water.
No non-return valves on the inlets.
Scale-resistant sequential thermostatic cartridge.
Temperature control: cold water up to 40°C. Temperature limiter set at 40°C.
Thermal or chemical shocks are possible.
Body and spout with smooth interiors and low water volume.
Flow rate regulated at 7 lpm.
No manual contact thanks to Hygiene control lever L. 146mm.
Mixer with 150mm centres, supplied with in-line STOP/CHECK connectors ideal for hospitals.
Chrome-plated brass body.


TECHNICAL CHARACTERISTICS

SECURITHERM BIOCLIP thermostatic sink mixer

Ref. H9611P
Connector M1/2"
Technology SECURITHERM BIOCLIP sequential, Securitouch
Height 141mm
Width 184mm
Spout length 136mm
Flow rate 7 lpm
Temperature limiter 40°C
Finish Chrome-plated brass
Артикул: DE-H9611P ,   Время доставки: 14-21 день
631,00 €
