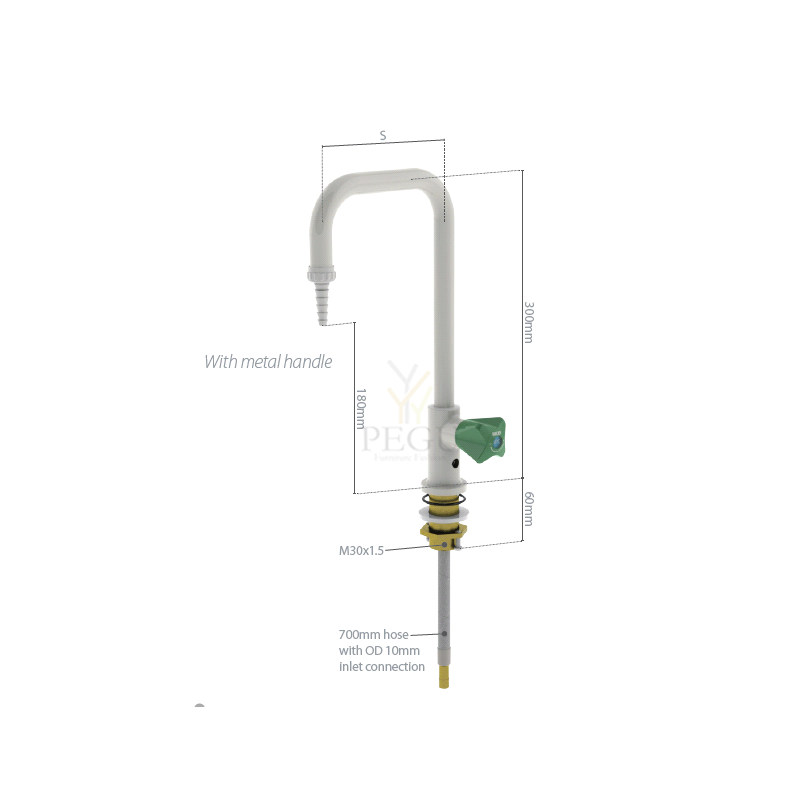

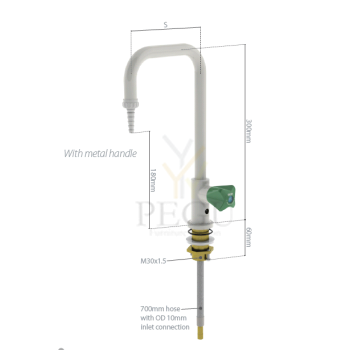

Кран на холодную , или смешаную воду F-200MM

Артикул: B-25340021001-52B
Бренд:
Единица: шт
Время доставки: 3-7 дней
Цена: 244,00 €
219,60 €
Kuumakse alates: 18,92 €
Кол-во: - +
S P E C I F I CATIONS
The fitting is delivered with an integrated BALLOFIX® ball valve.
Handle: Metal, BROEN POLYCOAT powder coated
with media indication according to EN13792
Spout: Full swivel action
Hose nozzle: Removable metal
Headwork: Ceramic
Opening/closing function: 180° (wrist action lever: 90°)
Temperature range: 0-90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 1.4 kg
MATERIALS WITH MEDIA CONTACT
Metals: Brass
Plastics: POM, PTFE, SPX (hose)
Sealing: EPDM
Lubricant: Silicone based
Ceramics: Al2O3 96%
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- aerator
- fixed hose nozzle
- integrated non-return valve
- fixed spout
- alternative hose inlet connection / without a hose
- other inlet options (type, length)
- national approvals
- WPH (Water Potable Hot)
- WNH (Water Non-Potable Hot)
