435 x 148 x 148 mm
for 1 paper roll Ø 125 x 390 mm

• Paper roll dispenser for nappy changer in robust, germ-reducing and easy-care stainless steel (AISI 304).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
  Further available surfaces: see below.
• Designed for one standard paper roll with dimensions:
  Outer diameter max. 125 mm
  Width: max. 390 mm
  Core diameter: min. 40 mm.
• Inspection slot to indicate fill level.
• Accessible for refilling through lockable, hinged housing.
• Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
• Wear parts can be replaced as modules.
• Mounting: With four screws through key holes and one optional anti-theft hole in the back wall.
• Delivery includes fixing material.

• Weight (in kg): 3,8

298 x 1198 x 220 mm
ca. 500 paper towels / 32 l

• Combination consisting of a paper towel dispenser and a waste bin in robust, germ-reducing and easy-care stainless steel (AISI 304).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
  Further available surfaces: see below.
• Paper towel dispenser with deep-drawn paper removal opening for easy paper removal.
• Designed for approx. 500 standard paper towels in zigzag fold.
  Paper size (folded): 240-250 mm x 100-115 mm.
• Inspection slot to indicate fill level.
• Accessible for refilling through lockable front flap with fall protection.
• Waste bin equipped with removable mesh basket. Capacity approx. 32 l. Accessible through lockable door.
• Keyed alike cylinder locks in corrosion-resistant zinc die-casting.
• Wear parts and front panels can be replaced as modules.
• Installation dimensions: 300 x 1200 x 210 mm (when fully fitted).
• Mounting: With six screws in wall opening through fixing holes in the side walls.
• Delivery includes fixing material and one pack of paper towels.

• Weight (in kg): 14,7

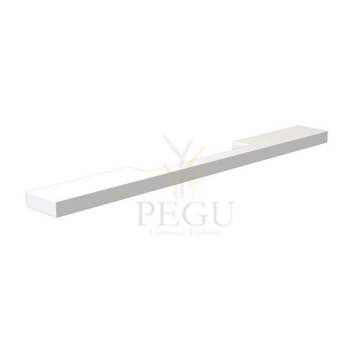

Must handle CC128mm. Available in brushed, polished, matt chrome and black. H2533
