Насос вакуумный с обратным клапаном

Артикул: B-19198009
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
195,20 €
Kuumakse alates: 16,77 €
Кол-во: - +

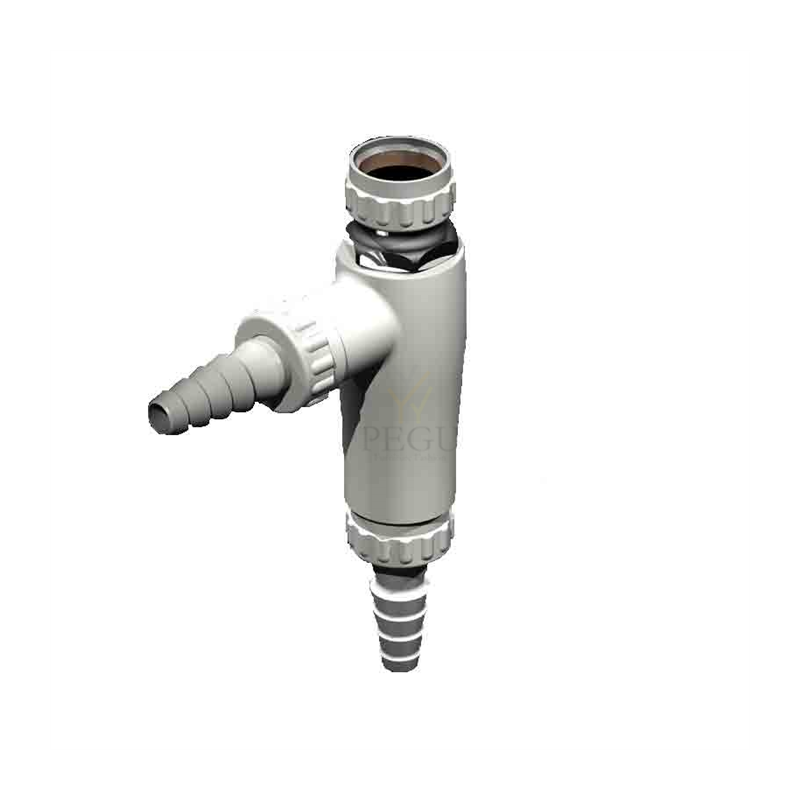

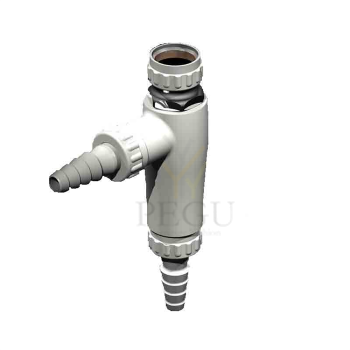

Насос вакуумный с обратным клапаном

Boss 19198009 Lab.Armatur DN15

Схожие продукты
S P E C I F I CATIONS
The fitting is delivered with an integrated BALLOFIX® ball valve.
Handle: Metal, BROEN POLYCOAT powder coated
with media indication according to EN13792
Spout: Full swivel action
Hose nozzle: Removable metal
Headwork: Ceramic
Opening/closing function: 180° (wrist action lever: 90°)
Temperature range: 0-90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 1.4 kg
MATERIALS WITH MEDIA CONTACT
Metals: Brass
Plastics: POM, PTFE, SPX (hose)
Sealing: EPDM
Lubricant: Silicone based
Ceramics: Al2O3 96%
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- aerator
- fixed hose nozzle
- integrated non-return valve
- fixed spout
- alternative hose inlet connection / without a hose
- other inlet options (type, length)
- national approvals
- WPH (Water Potable Hot)
- WNH (Water Non-Potable Hot)
Артикул: B-25340161001-52B ,   Время доставки: 3-7 дней
256,20 €
Eye shower, wall mounted in brass with chemical resistant BROEN Polycoat.
The water is regulated with a built-in FLOWFIX (26 l/min).
Min. working pressure: 1.5 bar.
Артикул: B-17250009 ,   Время доставки: 14 дней
676,08 €
Водяной трап Н/Р сталь, D75 mm вертикальный, 150x150mm

On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Артикул: AZP-PV 01.D.75.P ,   Время доставки: 3-4 недели
423,00 €

Laborisegisti Broen-Lab Sensorsegisti tööpinnale. S=200mm.220V

Pöördepiiraja 110 kraadi. Valge (RAL0008500)

Temp.regulaator FCP sensoriga jooksutorule.

Paindühendused 700mm,G1/2" mutter

Broen-LAB

Sensor Tap with temperature adjustor M30x1.5 mm mounting

Specifications

Aerator, with flow limitation 5 L/min
Sensor operated opening and closing function with bi-stabile technology
110° limited swivel spout
Non-return valve integrated in valvehouse
Temperatur range: 5-65° (41°F - 149°F)
Max. working pressure: 10 bar/145 psi

Surface

Chemical resistant Polyester Based Surface treatment, UV-resistent.
BROEN-LAB colour: 2700 (RAL colour: 0008500)

Material with media contact

Brass
Rubber, EPDM
Silicone based lubricant PPSU
SS
PA
SPX Hose

Electrical connection

Adaptor: 100-240 V AC 50/60 Hz Battery: 6 V Lithium

Hose

Supplied with hoses.
Hose (1) and (2) on the picture are mandatory and included. The hoses (3) on the picture are optional. See in the table below which options you have for the hoses (3)*.

For further options contact BROEN-LAB

Артикул: B-26010171035-52+B-26020021035E ,   Время доставки: 14-21 день
1525,00 €

PRODUCT NUMBER 97B0810

FOR WASTE CONNECTION

S P E C I F I C AT I O N S

Temperature range: 0-80°C
Standard colour: black (other colours available on request ) Net weight: 5.4 kg
Dimensions: external 807 x 469 x 330mm (tolerance ± 1mm)

The largest polypropylene sink offered, it is suitable for cleansing of larger items. Very widely used in island benches and teacher benches.

Артикул: B-97B0810 ,   Время доставки: 2-3 nädalad
494,10 €
