Нержавеющая сталь WC напольный Delabie 700 P inva

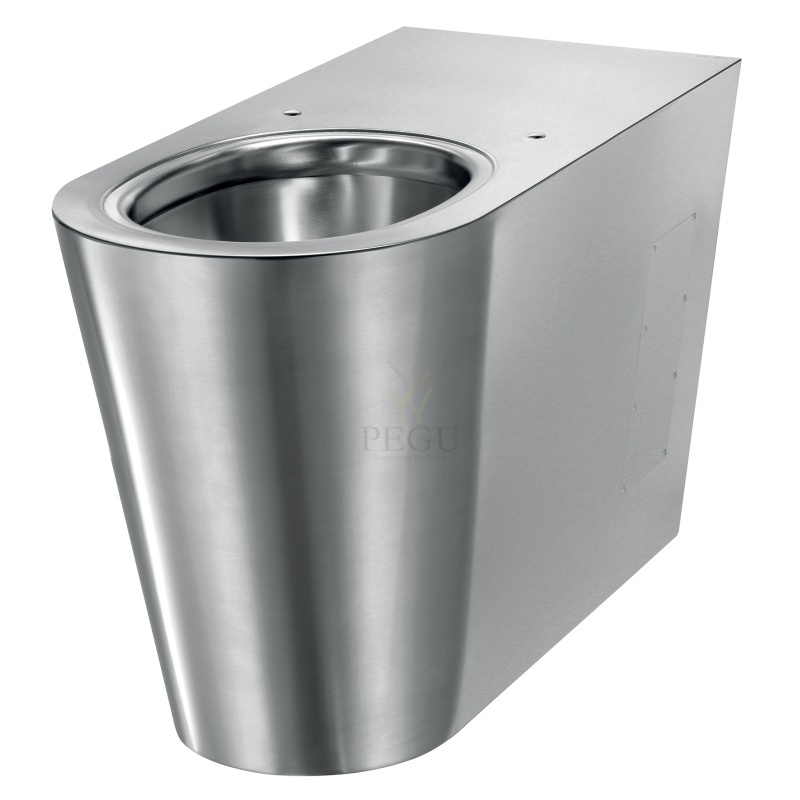

700 P floor-standing WC pan
Ref. 110700
Floor-standing WC pan, 360 x 480 x 700mm.
700mm elongated pan for better comfort for people with reduced mobility.
Elegant and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm.
One-piece pressed WC bowl, seam-free for easy maintenanceand better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim.
Horizontal water inlet: Ø 55mm.
Horizontal waste outlet: Ø 100mm. Supplied with PVC pipe.
Water saving: works with 4L or more of water.
Pre-drilled holes for fixing the toilet seat. Supplied with stainless steel blanking caps when installed without toilet seat lid.
Quick and easy to install: 2 access panels with theft prevention TORX security screws.
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 15kg.
Файлы
Aasia WC, R/V teras AISI 304
488,00 €
700 S TC wall-hung WC pan
Ref. 160710
Wall-hung WC pan with cross wall installation for service ducts.
700mm elongated pan for improved comfort for people with reduced mobility (700 S TC).
Elegant and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm.
One-piece, pressed WC bowl, seam-free for easy maintenance and better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim.
Horizontal water inlet: Ø 55mm.
Horizontal waste outlet: Ø 100mm.
Water saving: works with 4L or more of water.
200mm threaded rod can be cut to size (other lengths available on request).
Shrouded WC pan.
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 16.5kg.
TECHNICAL FEATURES
700 S TC wall-hung WC pan
Ref. 160710
Height | 350mm |
---|---|
Length | 700mm |
Width | 360mm |
Thickness | 1.5mm |
Finish | Polished satin 304 stainless steel |
KOMPACT washbasin and floor-standing WC combination
Ref. 162700
Washbasin combination unit with cistern, floor-standing WC pan on left side with recessed toilet roll holder.
Wall-mounted installation with 3 access panels, 2 on the sides and 1 on the top with theft prevention TORX security screws.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel body thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface is easy to clean.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws: makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproof push-button and anti-blocking system, 7 second time flow, M1/2".
WC fitted with 6-litre cistern.
Water inlets: washbasin M1/2", WC M3/8".
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin siphon.
Easy to install: only one water outlet for both washbasin and WC,water inlet and outlet already connected.
Weight: 36kg.
TECHNICAL FEATURES
KOMPACT washbasin and floor-standing WC combination
Ref. 162700
Height | 1000mm |
---|---|
Length | 735mm |
Width | 725mm |
Thickness | 2mm |
Finish | Polished satin 304 stainless steel |
KOMPACT washbasin and wall-hung WC combination
Ref. 160400
Combination unit: washbasin and suspended WC pan on left side with recessed toilet roll holder.
Wall-mounted installation with 3 access panels, 2 on the sidesand 1 on the top with theft prevention TORX security screws.Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws: makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M1/2".
WC equipped with time flow flush valve, 7 second time flow, M3/4".
Water inlet: washbasin M1/2", WC M3/4".
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin siphon.
Easy to install: only one water outlet for both washbasin and WC,water inlet and outlet already connected.
Weight: 36kg.
[Formerly ref: 0610030004]
TECHNICAL FEATURES
KOMPACT washbasin and wall-hung WC combination
Ref. 160400
Height | 1000mm |
---|---|
Length | 735mm |
Width | 725mm |
Thickness | 2mm |
Finish | 304 polished satin stainless steel |
LP individual urinal
Ref. 130300
Floor-standing urinal.
Bacteriostatic 304 stainless steel.
Polished satin stainless steel.Stainless steel thickness: 1.2mm
Rear water inlet.
Central drainage.
Supplied with 1 stainless steel rinser and a flexible hose.
Water saving: optimal rinsing with 0.1 L/sec. per service i.e. 0.3L per use.
Waste outlet 1½". Supplied with waste and integrated trap (ref. 785000).
Easy to install and maintain thanks to access panels with theft prevention TORX security screws.
Weight: 15.2kg.
TECHNICAL FEATURES
LP individual urinal
Ref. 130300
Height | 1020mm |
---|---|
Length | 300mm |
Width | 600mm |
Thickness | 1.2mm |
Finish | Polished satin 304 stainless steel |
