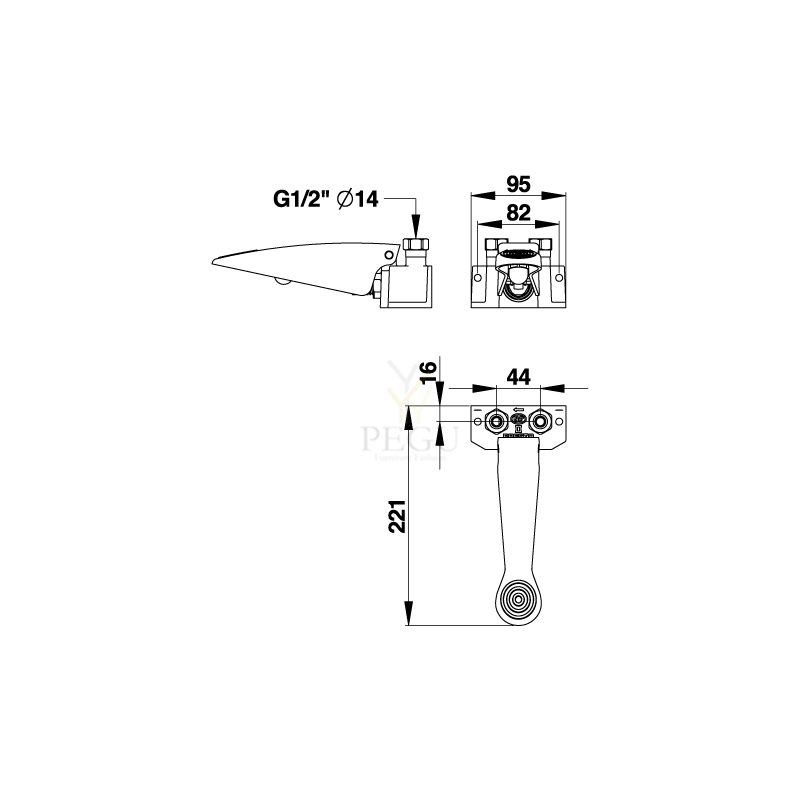

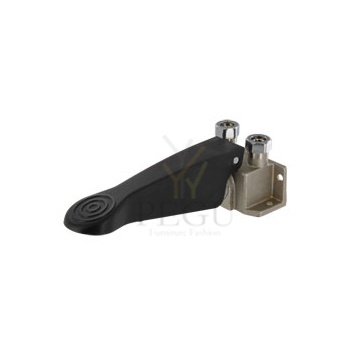

Педальный вентиль, кран для холодной/смешанной воды SOL520
Бренд:
Единица: шт
Время доставки: 7-14 дней
Попробуй промокод PEGU-KEVAD! Выбери товар по полной цене, добавь в корзину, и введи код купона при покупке! Время работы промокода ограничено!
> Working pressure : 1 to 5 bar
> Flow : 6 l/min at 3 bar - 4-position flow adjustment device Anti-water-hammering design
> Flow time : 3 to 5 seconds
> Operation : Foot-operated activation through pedal
> Hydraulic supply : Inlet M G 1/2"(15x21) - Cold or premixed water
> Material and colour finish : Brass body and components with molded chrome treatment Technical polymer
> Thermal resistance : Resistant to a temperature of 75°C for 30-minute-thermal-shocks
> Delivered with : 1 Gasket nut 1 Coupling nut 1 Nut for 12x14mm tube Instruction manual
> Standards & approvals : Acoustic class II Brass body in accordance with EN 1982, EN 12164, EN 12165 Molded chrome-plated body in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
Файлы
Душевой комплект SPORT самовыключающийся с регулятором температуры KSA32/36 30 sek
Душевой комплект
хром
30 sek рабочий цикл
Overall dimension in mm Ø300 x 382 Inlet dimension in mm 1.5" Outlet dimension in mm 1.5" Material AISI 304 Material thickness in mm 1.5 Gross weight in kg 7.70
Bucket sink in stainless steel for wall mounting. Supplied with stainless steel wall panel, supporting bracket and 3 1/2" x 2" grated waste, and reducer from 2" - 1 1/2".
> Working pressure :
1 to 5 bar
> Flow :
6 l/min with integrated flow limiter Anti-water-hammering device
Fixed shower head with anti-limescale spikes
> Flow time :
30 seconds (± 5 sec.)
> Hydraulic supply :
G 1/2" (15x21), top or rear water inlet. For rear water inlet, we recommend to add the adaptation kit under the reference 91026 On P 50 tap NF II and thermostatic mixer tap EN 1111 (NF check valves)
> Material :
Anodised aluminium extruded section (2.5mm thickness) Aluminium removable valve plate, peinted RAL 7005 colour High resistance RAL 7005 coloured ABS casings
> Functioning:
Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate
> Thermal resistance :
Resistant to a temperature of 75°C for 30-minute-thermal-shocks
> Security :
"Legionella" version: pre-equipped for PRESTO solutions
Anti-scald system: flow is immediately stopped if the cold water is cut off Maximum delivered temperature : pre-fixed at 38°
> Delivered with :
1/2" hoses with revolving nuts
MM 1/2" (15x21) straight stop valve and 250 micron filters Fastening screws and instruction manual
> Standards & approvals :
Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540
> Working pressure: 1 to 5 bar
> Flow: 3 l/min at 3 bars - 4-position setting Anti water-hammer system
> Flow time: 7 seconds
> Hydraulic supply: G 1/2" x 15 - cold water
> Dimensions : 150mm projection
> Thermal resistance: This tap can withstand a thermal shock of 75°C for 30 minutes as part of a thermal shock programme
> Safety: With S® antiblocking system to prevent blocking in continuous flow Interchangeable head and non-turnable push button to avoid premature wear Non-removable blue circled marker
> Delivered with: 1 Installation manual
> Standards / Approvals: Stainless steel body (304 L) Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227
