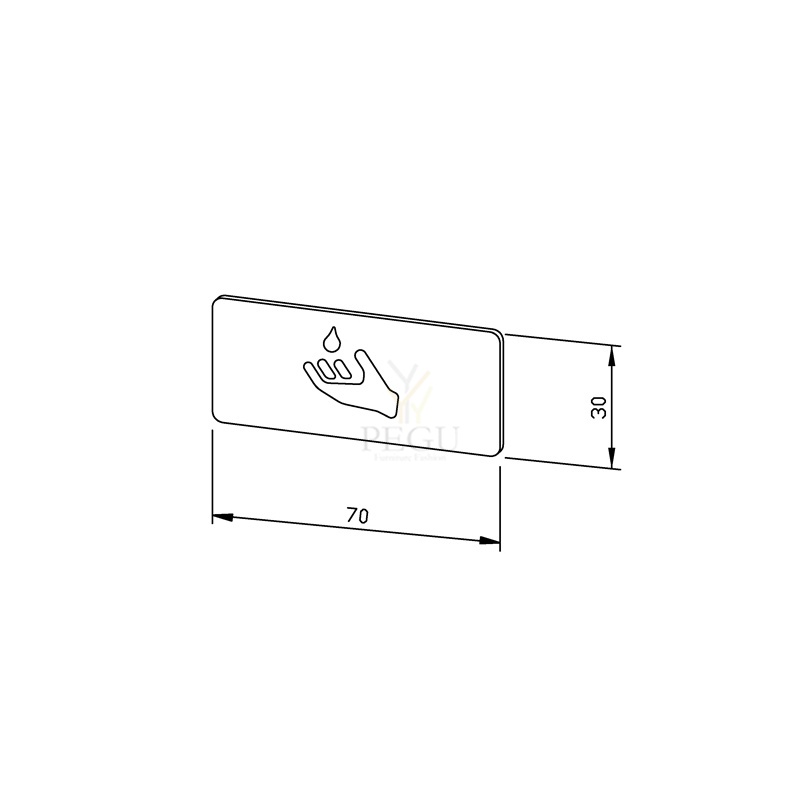

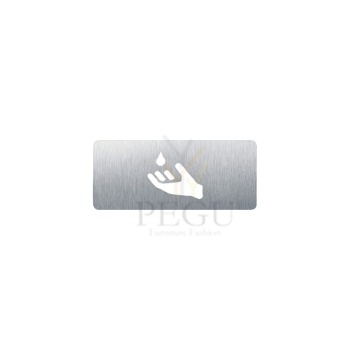

Пиктограмма МЫЛО на клей Н/Р сталь сатин Wagner Ewar AC425

Пиктограмма "WC", на клей, Н/Р сталь,сатин Wagner Ewar AC404S

Piktogramm

WC

liimitav

AISI304, 2 mm paks

120x135x2 mm

86 x 298 x 121 mm

• Sensor liquid soap dispenser in robust, germ-reducing and easy-care stainless steel (AISI 316L).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
  Further available surfaces: see below.
• With EWAR® eModule touch-free operated and non-drip soap pump with 850 ml plug-in tank.
• Designed for standard liquid soaps or hand lotions.
• Inspection slot to indicate fill level.
• Accessible for refilling through lockable, hinged housing.
• Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
• eModule battery-powered with two 1.5 V Baby/LR14 batteries. Power supply available as an option.
• Wear parts can be replaced as modules.
• Mounting: With three screws through key holes and one optional anti-theft hole in the back wall.
• Delivery includes fixing material and batteries.

• Weight (in kg): 1,8

80 x 298 x 120 mm
400 ml foam soap concentrate

• Foam soap dispenser in robust, germ-reducing and easy-care stainless steel (AISI 316L).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
  Further available surfaces: see below.
• One-hand operated and non-drip foam soap pump.
• Designed for standard 400 ml foam soap concentrate.
• Inspection slot to indicate fill level.
• Accessible for refilling through lockable, hinged housing.
• Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
• Wear parts can be replaced as modules.
• Mounting: With two screws through key holes and one optional anti-theft hole in the back wall.
• Delivery includes fixing material and first fill with foam soap concentrate.

• Weight (in kg): 2,4

148 x 448 x 120 mm
950 ml bottle

• Liquid soap dispenser in robust, germ-reducing and easy-care stainless steel (AISI 316L).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
  Further available surfaces: see below.
• One-hand operated and non-drip soap pump.
• Designed for standard 950 ml disposable bottles of liquid soap or hand lotion.
• Also refillable with large container using the plug-in tank as an option.
• Inspection slot to indicate fill level.
• Accessible for refilling through lockable, removable front panel with fall protection.
• Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
• Wear parts and front panel can be replaced as modules.
• Installation dimensions: 150 x 450 x 110 mm
• Mounting: With four screws in wall opening through fixing holes in the side walls.
• Delivery includes fixing material and first fill with soap.

• Weight (in kg): 4,0

298 x 1348 x 120 mm
ca. 250 paper towels / 950 ml soap bottle / 11 l

• Combination consisting of a liquid soap dispenser, a paper towel dispenser and a waste bin in robust, germ-reducing and easy-care stainless steel (AISI 304).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
  Further available surfaces: see below.
• Liquid soap dispenser with one-hand operated and non-drip soap pump.
• Designed for standard 950 ml disposable bottles of liquid soap or hand lotion.
• Also refillable with large container using the plug-in tank as an option.
• Paper towel dispenser with deep-drawn paper removal opening for easy paper removal.
• Designed for approx. 250 standard paper towels in zigzag fold.
  Paper size (folded): 240-250 mm x 100-115 mm.
• Inspection slots to indicate fill level.
• Accessible for refilling through lockable front flap with fall protection.
• Waste bin equipped with removable mesh basket. Capacity approx. 11 l. Accessible through lockable door with self-closing, flame-retardant disposal flap.
• Keyed alike cylinder locks in corrosion-resistant zinc die-casting.
• Wear parts and front panels can be replaced as modules.
• Installation dimensions: 300 x 1350 x 110 mm
• Mounting: With eight screws in wall opening through fixing holes in the side walls.
• Delivery includes fixing material, first fill with soap and one pack of paper towels.

• Weight (in kg): 15,4
