Питьевой фонтан free-standing механический Н/Р сталь AISI304

Артикул: AZP-AFO02
Бренд:
Единица: шт
Время доставки: 3-4 недели
Цена:
1531,00 €
Kuumakse alates: 130,14 €
Кол-во: - +
   - или -

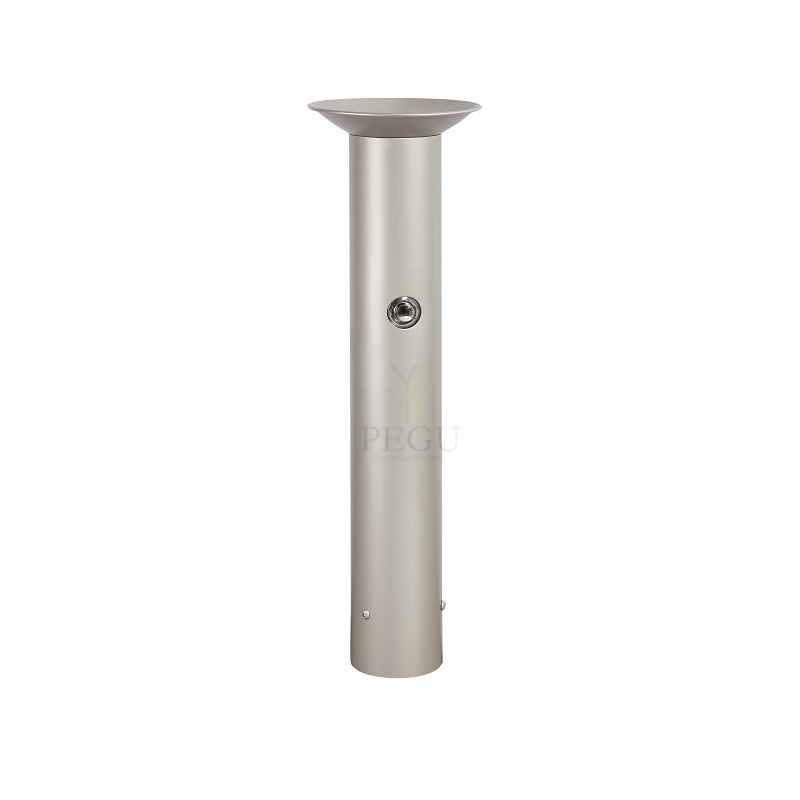

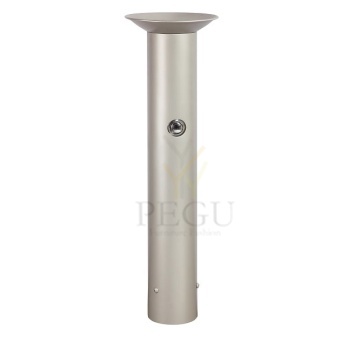

Питьевой фонтан free-standing механический Н/Р сталь AISI304

AFO 02 - IIstainless steel free-standing drinking fountain (indoor/outdoor)

AFO 02-II is a stainless steel drinking fountain of modern design with a manual press valve that allows its easy use. The water flows only when the valve is pressed and then there is a certain adjusted time to rinse out the nozzle.

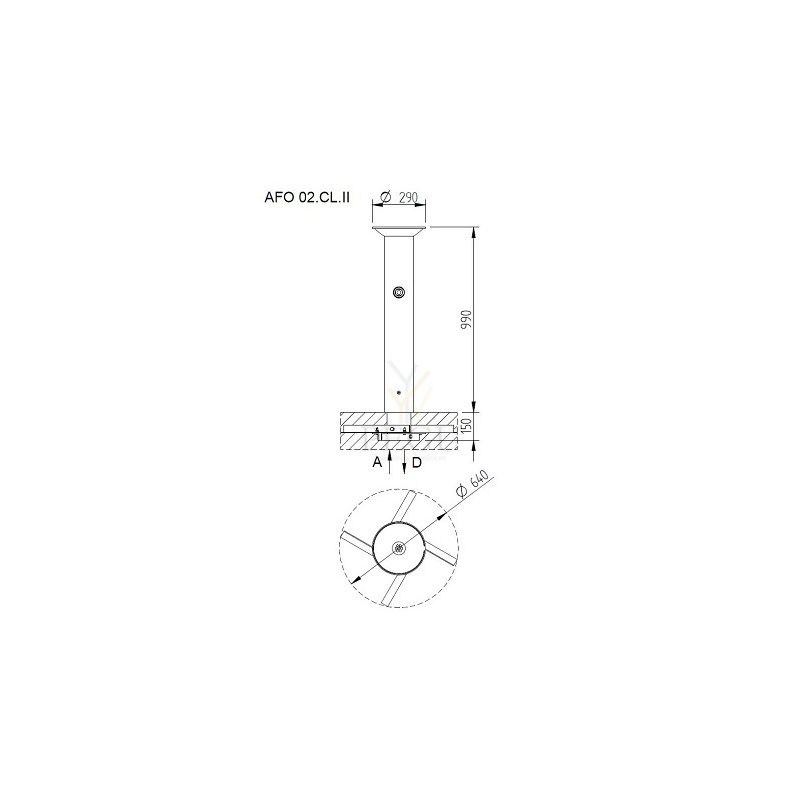

The drinking fountain is to be placed in an open space. It is made up of an anchoring part intended for embedding in concrete and the column itself with a press valve and nozzle. These parts are connected by means of 3 screws and the upper part can be, therefore, easily dismounted in case of necessity (e.g. during winter).
The water inlet is fitted with a flexible hose, the siphon is made from a stretchy, flexible connector. The flexible finish of the water inlet and outlet allows the variable and problem-free connection of the fountain.
AFO 02-II stainless steel fountain is suitable mainly for schools, medical facilities and spa resorts, and is utilizable outdoors.
Drinking fountain AFO 02-II is manufactured from the stainless steel AISI 304. AFO 02.CL-II is made of the stainless steel AISI 316 and is suitable for places with higher concentration of chlorine.
For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).Detail of the bowl

Package contents

  • stainless steel column and cone with nozzle
  • press valve
  • anchoring construction
  • flexible hose siphon
  • connecting hoses
  • anchoring material
  • Set-up water inlet - pipe G 1/2“
  • Set-up drainage d = 40 mm
  • Prepared alcove for embedding (concreting) in the base construction
Water inlet G 1/2"
Water pressure 2 – 6 Bar, recommended 3 Bar
Outlet d = 40 mm
Inner dimensions of sink d = 290 mm
Weight 20 kg

Схожие продукты

Коллективный писсуар 1800 mm нержавеющая сталь

Артикул: PURM-1800 ,   Время доставки: 3-4 недели
1715,00 €
Водяной трап Н/Р сталь, D75 mm вертикальный, 150x150mm

On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Артикул: AZP-PV 01.D.75.P ,   Время доставки: 3-4 недели
423,00 €



ZAC 1/20, ZAC 1/50, ZAC 1/36L

power supply






ZAC is a safe source of voltage supply intended to power automatic sanitary equipment made by AZP Brno, Ltd.

The source of power supply consists of a safety transformer produced in accordance with ČSN IEC 742+A1 standards. All kinds of sensors can be connected to these sources in random combinations, as can other devices with a supply voltage of 12 V, 50 Hz (total power requirement either 20 VA, 50 VA or 36 VA).

ZAC 1/20 and ZAC 1/50 are independent sources, 1/36L ZAC is the source for the location on the DIN-rail (4 modules).




Version types
ZAC 1/20 - source of power supply with output 20 VA
ZAC 1/50 - source of power supply with output 50 VA
ZAC 1/36L - source of power supply with output 36 VA

Source of power supply can be placed at a maximum distance of 30 m from the connected appliance.

Basic technical information
Input voltage: 230 V, 50 Hz
Output voltage: 12 V, 50 Hz
Power requirement: 20 VA (ZAC 1/20)
  50 VA (ZAC 1/50)
  36 VA (ZAC 1/36L)
Electricity protection: IP 55 (ZAC 1/20, ZAC 1/50)
  IP 20 (ZAC 1/36L)
Weight: 0,8 kg (ZAC 1/20, ZAC 1/36L)
  1,2 kg (ZAC 1/50)


Requirements for setting up the construction
ZAC 1/20, ZAC 1/50
  1. Set-up supply of electricity 230 V,50 Hz – cable CYKY 3Cx1,5
  2. Set-up niche for flush mounting – size as per installed source
  3. Distribution to each device is carried out by cable CYKY 2Ax1,5
ZAC 1/36 L
  1. It is installed on the DIN-rail - width of 4 modules


Figure
ZAC 1/20

ZAC 1/50





Product title
ZAC 1/20 -
power supply for up to 3 devices - 230V, 50Hz
ZAC 1/50 -
power supply for up to 8 devices - 230V, 50Hz
ZAC 1/36L -
power supply for up to 6 devices - 230V, 50Hz
Артикул: AZP-ZAC 1-20 ,   Время доставки: 3-4 недели
105,00 €

Питьевой фонтан настенный механический  для бассейнов Н/Р сталь AISI316 (бассейны)

AFO 01 stainless steel wall-mounted drinking fountain

AFO 01 is a stainless steel wall-mounted drinking fountain of modern design with a manual press valve that allows its easy use. The water flows only when the valve is pressed and then there is a certain adjusted time to rinse out the nozzle.
The water inlet is fitted with a flexible hose, the siphon is made from a stretchy, flexible connector. The flexible finish of the water inlet and outlet allows the variable and problem-free connection of the fountain.
AFO 01 stainless steel fountain is suitable mainly for schools, medical facilities and spa resorts, and is utilizable outdoors.
AFO 01 is made of stainless steel AISI 304.
AFO 01.CL is made of stainless steel AISI 316 and is suitable into the areas with higher concentration of chlorine (e.g. swimming pools).
Sensor-controlled fountain possible made to order.
For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Package contents

  • stainless steel sink with casing
  • press valve
  • corner valve with filter
  • flexible hose siphon
  • fixing bar
  • connecting hoses
  • anchoring material
Water inlet G 1/2"
Water pressure 0,2 – 0,6 MPa (recommended 0,3 MPa)
Outlet d = 40 mm
Inner dimension of the fountain d = 245 mm
Weight 4 kg



Артикул: AZP-AF001.CL ,   Время доставки: 3-4 недели
1075,00 €

Питьевой фонтан настенный сенсорный  Н/Р сталь AISI304 12V/50Hz

AFO 01.Yst. steel sensor controlled drinking fountain

AFO 01.Y is st. stainless wall hung drinking fountain controlled by sensor. Water runs after disrupting the scanning zone.

Fountain is made by welding all components together.

Fountain is suppplied with safety power 12 V, 50 Hz from power supply ZAC (AFO 01.Y) or with 4x AA battery (AFO 01.YB).

Material is standardly st. steel AISI 304 or can be AISI 316 (AFO 01.Y.CL or AFO 01.YB.CL).

St. steel driking fountain AFO 01.Y is based on favourite model AFO 01 with manual control.

The sensor, located on the right side of the fountain, is reacting on the approach of the user. Water starts to run from the nozzle, located in the middle of the fountain bowl, and runs over the time when the user´s head is in the scanning zone (max. 30 sec.) + preset time (max. 4 sec.) to clean the nozzle.

Package contents

  • st. steel drinking fountain
  • nozzle
  • sensor and electronic
  • electromagnetic valve
  • connecting flexible hose
  • corner valve with filters
  • siphon
  • mounting material
water inlet G 1/2"
water pressure 1 - 10 Bar (AFO 01.Y; AFO 01.Y.CL)
  2 - 8 Bar (AFO 01.YB; AFO 01.YB.CL)
outlet d = 40 mm
bowl inner dimension d = 245 mm
weigth 4 kg
suppply 12 V, 50 Hz (AFO 01.Y; AFO 01.Y.CL)
  6 V - 4 x AA battery (AFO 01.YB; AFO 01.YB.CL)
power supply ZAC 1/20 (max. 3 x AFO 01.Y ; AFO 01.Y.CL)

Артикул: AZP-AFO01.Y ,   Время доставки: 3-4 недели
817,00 €
