Joogifontään veejahutussüsteemiga põranda/sein piezo nupp,  R/V teras AISI304 230V/50Hz AZP Brno AFO01.SC Zoom

Питьевой фонтан напольный / настенный с системой охлаждения воды, кнопка piezo Н/Р сталь AISI304 230V/50Hz

Артикул: AZP-AFO01.SC
Бренд:
Единица: шт
Время доставки: 3-4 недели
Цена:
5245,61 €
Kuumakse alates: 445,88 €
Кол-во: - +

Питьевой фонтан напольный / настенный с системой охлаждения воды, кнопка piezo Н/Р сталь AISI304 230V/50Hz

AFO 01.SC

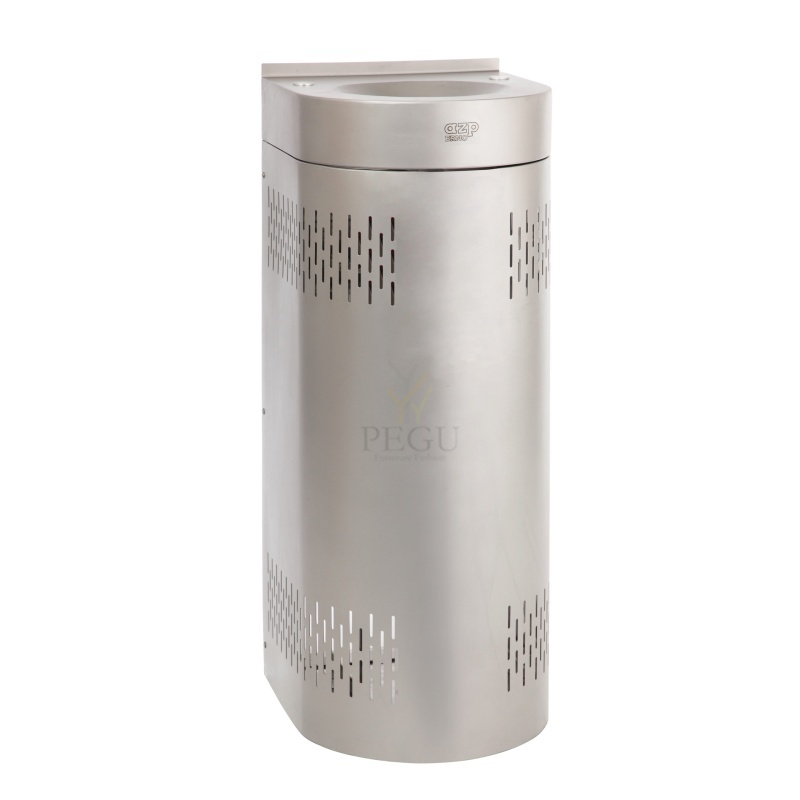

drinking fountain with cooling designed to stand and to be attached to wall

AFO 01.SC is a drinking fountain with cooling designed to stand and to be attached to wall. User can select between uncooled water and water running through a flow cooler. The fountain is operated by means of two piezo-buttons – resistant solution. Facility keeper can set a time period after which the water flow automatically stops.
The product contains a flow cooler. It is not a design with cooled tank only where – after the pre-cooled amount of water is pumped out – the user has to wait for the next charge to be cooled.
Flexible design of water supply and outflow allows variable and easy connection of the drinking fountain as well as its dismounting.
ttles

Automatic drinking fountain (with a sensor) can be supplied per order.

AFO 01.S is manufactured from the stainless steel AISI 304.
Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Package contents

  • Stainless housing with cone
  • Electronics and control piezo-buttons
  • Water supply and electromagnetic valves
  • Flow cooler
  • Flexible hose outflow
  • Fixing and connecting material

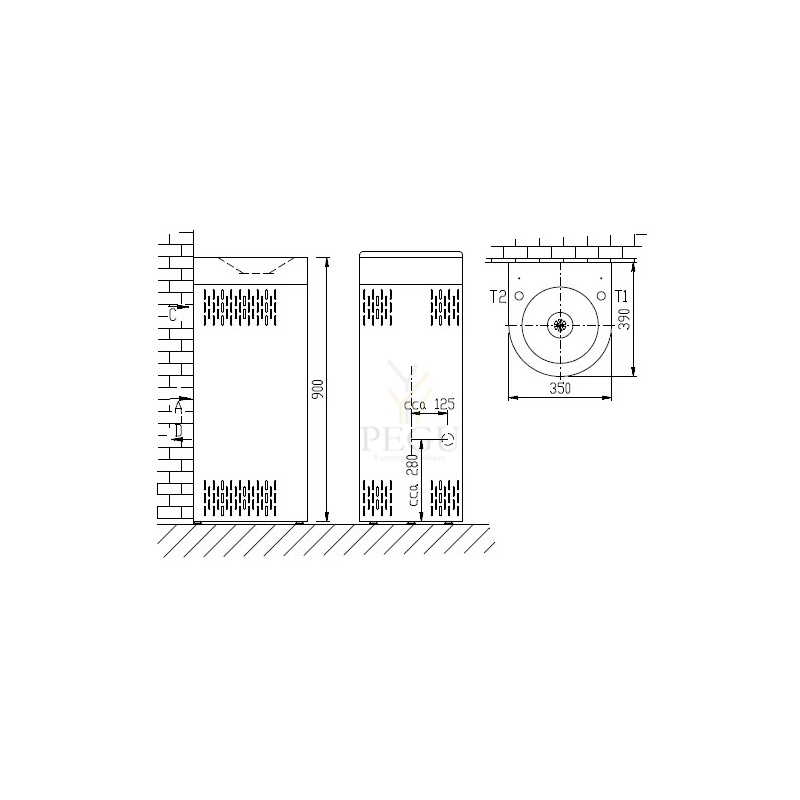

dimensions 330 x 900 x 365 mm
water outlet d = 40 mm
water inlet G 1/2"
water pressure 0,2 – 0,6 MPa, recommended 0,3 MPa
power supply 230 V, 50 Hz
power input 820 W
weight 24 kg



  • Set up water outlet d = 40 mm
  • Set up water inlet G 1/2"
  • Electric socket 230 V, or electric cable CYKY 3C x 1,5
Схожие продукты
Антивандалльная душевая пьезо кнопка Н/Р сталь, для смешанной воды,  без адаптора



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Артикул: AZP-AUS 11 ,   Время доставки: 3-4 недели ,   Viimistlus:
381,15 €



ZAC 1/20, ZAC 1/50, ZAC 1/36L

power supply






ZAC is a safe source of voltage supply intended to power automatic sanitary equipment made by AZP Brno, Ltd.

The source of power supply consists of a safety transformer produced in accordance with ČSN IEC 742+A1 standards. All kinds of sensors can be connected to these sources in random combinations, as can other devices with a supply voltage of 12 V, 50 Hz (total power requirement either 20 VA, 50 VA or 36 VA).

ZAC 1/20 and ZAC 1/50 are independent sources, 1/36L ZAC is the source for the location on the DIN-rail (4 modules).




Version types
ZAC 1/20 - source of power supply with output 20 VA
ZAC 1/50 - source of power supply with output 50 VA
ZAC 1/36L - source of power supply with output 36 VA

Source of power supply can be placed at a maximum distance of 30 m from the connected appliance.

Basic technical information
Input voltage: 230 V, 50 Hz
Output voltage: 12 V, 50 Hz
Power requirement: 20 VA (ZAC 1/20)
  50 VA (ZAC 1/50)
  36 VA (ZAC 1/36L)
Electricity protection: IP 55 (ZAC 1/20, ZAC 1/50)
  IP 20 (ZAC 1/36L)
Weight: 0,8 kg (ZAC 1/20, ZAC 1/36L)
  1,2 kg (ZAC 1/50)


Requirements for setting up the construction
ZAC 1/20, ZAC 1/50
  1. Set-up supply of electricity 230 V,50 Hz – cable CYKY 3Cx1,5
  2. Set-up niche for flush mounting – size as per installed source
  3. Distribution to each device is carried out by cable CYKY 2Ax1,5
ZAC 1/36 L
  1. It is installed on the DIN-rail - width of 4 modules


Figure
ZAC 1/20

ZAC 1/50





Product title
ZAC 1/20 -
power supply for up to 3 devices - 230V, 50Hz
ZAC 1/50 -
power supply for up to 8 devices - 230V, 50Hz
ZAC 1/36L -
power supply for up to 6 devices - 230V, 50Hz
Артикул: AZP-ZAC 1-20 ,   Время доставки: 3-4 недели ,   Viimistlus:
106,72 €

Presto рем.комплект пружинки 20шт , комплект 90207

20 tk komplektis



Артикул: P90207 ,   Время доставки: 7 дней ,   Viimistlus:
25,00 €

Картридж ALPA с ограничителем времени работы, 30 sek 3bar, чёрная кнопка Presto 01015

Сердечник

ALPA

Presto

чёрная кнопка

30 sek. töötsükkel 3 bar



Артикул: P01015 ,   Время доставки: 7 дней ,   Viimistlus:
281,00 €

PRESTO NEO DUO S® самовыключающийся кран 7/11 sek, с системой антиблокировки 64708

> Working pressure: 1 to 5 bar

> Flow: 3 l/min at 3 bars - 4-position setting Anti water-hammer system

> Flow time: 7 seconds - lever upwards 11 seconds - lever downwards

> Hydraulic supply: G 1/2'' x 15

> Thermal resistance: This tap can withstand a thermal shock of 75°C for 30 minutes as part of a thermal shock programme > Safety: With S® antiblocking system to prevent blocking in continuous flow

> Convenience: Soft-touch Two-coloured ergonomic lever, in glass fiber reinforced polymer

> Delivered with: 1 Filter gasket 1 coloured sticker

> Standards / Approvals: Chrome-plated brass body compliant with standards NF EN1982 / NF EN12164 / NF EN12165 Nickel-Chrome surface treatment compliant with NF EN12540 Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227

Артикул: P64708 ,   Время доставки: 7-14 дней ,   Viimistlus:
208,00 €
