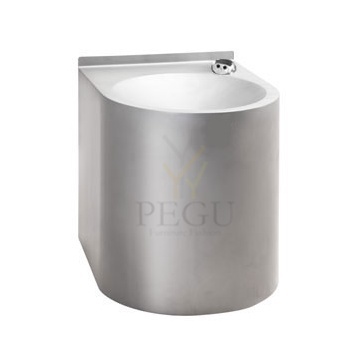

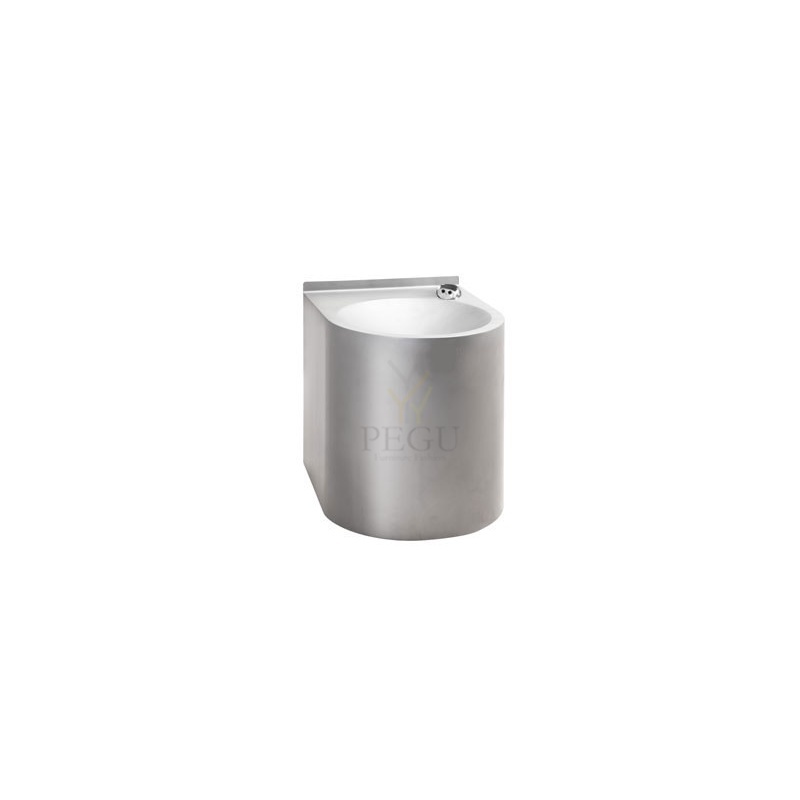

Питьевой фонтан настенный сенсорный Н/Р сталь AISI304 6V(4x1.5V)
AFO 01.Yst. steel sensor controlled drinking fountain
AFO 01.Y is st. stainless wall hung drinking fountain controlled by sensor. Water runs after disrupting the scanning zone.
Fountain is made by welding all components together.
Fountain is suppplied with safety power 12 V, 50 Hz from power supply ZAC (AFO 01.Y) or with 4x AA battery (AFO 01.YB).
Material is standardly st. steel AISI 304 or can be AISI 316 (AFO 01.Y.CL or AFO 01.YB.CL).
St. steel driking fountain AFO 01.Y is based on favourite model AFO 01 with manual control.
The sensor, located on the right side of the fountain, is reacting on the approach of the user. Water starts to run from the nozzle, located in the middle of the fountain bowl, and runs over the time when the user´s head is in the scanning zone (max. 30 sec.) + preset time (max. 4 sec.) to clean the nozzle.
- st. steel drinking fountain
- sensor and electronic
- electromagnetic valve
- connecting flexible hose
- corner valve with filters
- mounting material
|water inlet||G 1/2"|
|water pressure||1 - 10 Bar (AFO 01.Y; AFO 01.Y.CL)|
|2 - 8 Bar (AFO 01.YB; AFO 01.YB.CL)|
|outlet||d = 40 mm|
|bowl inner dimension||d = 245 mm|
|suppply||12 V, 50 Hz (AFO 01.Y; AFO 01.Y.CL)|
|6 V - 4 x AA battery (AFO 01.YB; AFO 01.YB.CL)|
|power supply||ZAC 1/20 (max. 3 x AFO 01.Y ; AFO 01.Y.CL)|
FRAJU PMR washbasin
Wall-mounted washbasin, 620x505mm.
Suitable model for people with reduced mobility.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm for the bowl and 1.5mm for surround.
Rounded edges prevent injury.
Without tap hole.
Supplied with 1¼" waste.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
|Size (mm):||560 x 420 x 199|
LISO urinal divider for wall-mounting
|Finish||304 polished satin stainless steel|
DESCRIPTION TEMPOFLUX 1 direct flush valve - Ref. 761200
Cross wall time kit for direct flush: Cross wall control, can be cut-to-size.
Soft-touch operation. Time flow ~7 sec.
Integrated stopcock and flow/volume rate adjuster.
Solid brass body and chrome-plated push-button.
In-line inlet M3/4".
Connection washer Ø 32/55mm.
For walls ≤ 200mm, without tube.
