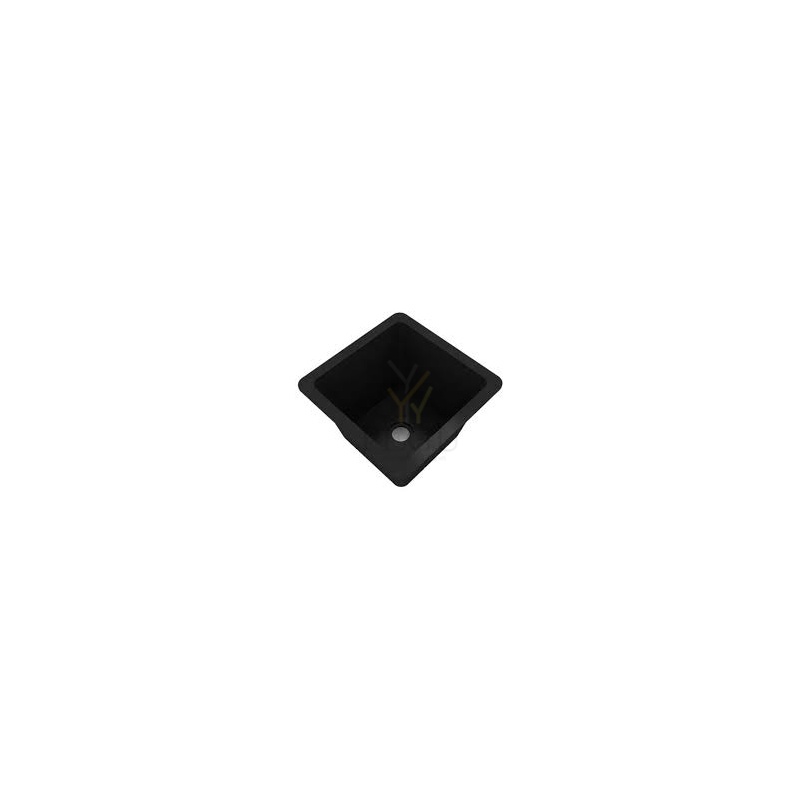

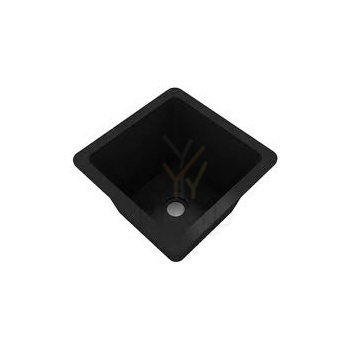

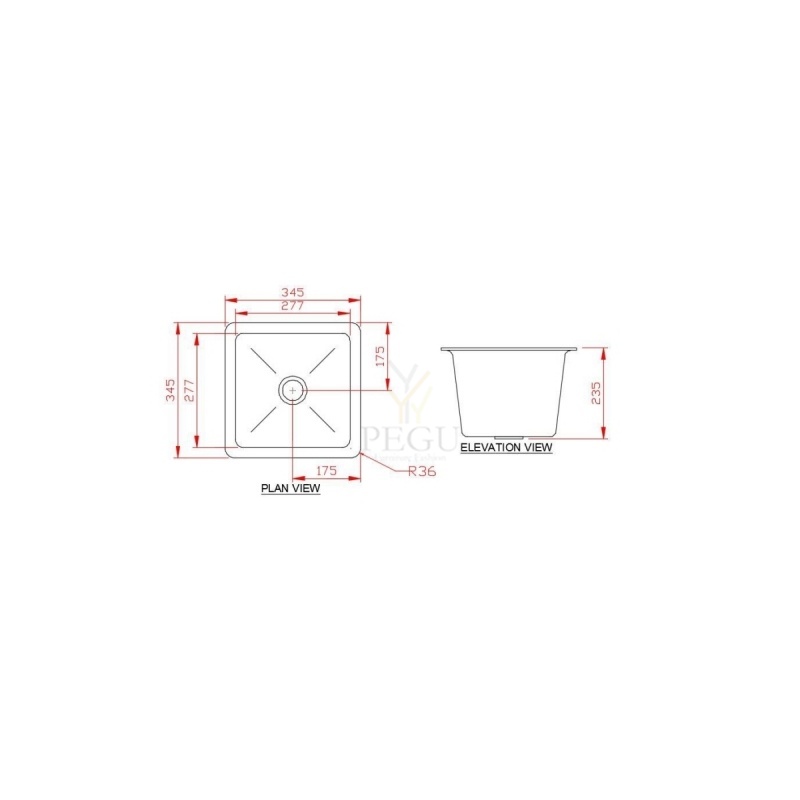

PP раковина 350x350x235 (PxLxK)

Смеситель LAB, F-150мм, WPH/WPC (15281009) – Broen Lab

Лабораторный смеситель с интегрированным шаровым краном BALLOFIX®

Технические характеристики

• Кран: Встроенный шаровой кран BALLOFIX®

• Рукоятка: Металлическая, с порошковым покрытием BROEN POLYCOAT
  – с указанием среды в соответствии с EN13792

• Излив: Полностью поворотный

• Штуцер для шланга: Съёмный, металлический

• Запорный механизм: Керамический

• Функция открытия/закрытия: 180° (рычаг поворачивается на 90°)

• Температурный диапазон: 0–90°C

• Максимальное рабочее давление: 10 бар / 147 psi

• Испытательное давление: 1 × рабочее давление

• Вес: 3 кг

---

Материалы, контактирующие со средой

• Металлы: Латунь

• Пластик: POM, PTFE, SPX (для шланговой части)

• Уплотнители: EPDM

• Смазка: На силиконовой основе

• Керамика: Al2O3 96%

• Припой: DIN L-Ag55:Sn

---

Информация для заказа

Для стандартной конфигурации см. артикулы ниже.

---

Дополнительные опции:

• Аэратор

• Фиксированный штуцер для шланга

• Встроенный обратный клапан

• Альтернативное подключение шланга / без шланга

• Другие варианты входного соединения (тип, длина)

• Национальные сертификаты / одобрения



S P E C I F I CATIONS

The fitting is delivered with an integrated BALLOFIX® ball valve.

Handle: Metal, BROEN POLYCOAT powder coated

with media indication according to EN13792

Spout: Full swivel action

Hose nozzle: Removable metal

Headwork: Ceramic

Opening/closing function: 180° (wrist action lever: 90°)

Temperature range: 0-90°C

Max. working pressure: 10 bar / 147 psi

Test pressure: 1 x working pressure

Weight: 3 kg

MATERIALS WITH MEDIA CONTACT

Metals: Brass

Plastics: POM, PTFE, SPX (hose)

Sealing: EPDM

Lubricant: Silicone based

Ceramics: Al2O3 96%

Solder: DIN L-Ag55:Sn

ORDERING INFORMATION

For standard configuration please refer to the item

numbers below.

Other options:

- aerator

- fixed hose nozzle

- integrated non-return valve

- alternative hose inlet connection / without a hose

- other inlet options (type, length)

- national approvals

S P E C I F I CATIONS

The fitting is delivered with an integrated BALLOFIX® ball valve.

Handle: Metal, BROEN POLYCOAT powder coated

with media indication according to EN13792

Spout: Full swivel action

Hose nozzle: Removable metal

Headwork: Ceramic

Opening/closing function: 180° (wrist action lever: 90°)

Temperature range: 0-90°C

Max. working pressure: 10 bar / 147 psi

Test pressure: 1 x working pressure

Weight: 1.4 kg

MATERIALS WITH MEDIA CONTACT

Metals: Brass

Plastics: POM, PTFE, SPX (hose)

Sealing: EPDM

Lubricant: Silicone based

Ceramics: Al2O3 96%

ORDERING INFORMATION

For standard configuration please refer to the item

numbers below.

Other options:

- aerator

- fixed hose nozzle

- integrated non-return valve

- fixed spout

- alternative hose inlet connection / without a hose

- other inlet options (type, length)

- national approvals

- WPH (Water Potable Hot)

- WNH (Water Non-Potable Hot)

BROEN-LAB fully recirculating fittings ensure constant fresh

water with no dead legs even when the point-of-use valve is in closed position.

The Tee-piece of the fitting should be connected to a loop with a constant circulation of water. For more details about installation, jointing methods, etc. please refer to page 22.

SPECIFICATIONS

Handle: Metal, BROEN-LAB POLYCOAT powder coated

with media indication according to EN13792

Hose nozzle: Removable plastic

Headwork: Diaphragm type

Opening/closing function: 1 1/2 x 360°

Temperature range: 0-65°C

Max. working pressure: 10 bar / 147 psi

Test pressure: 1 x working pressure

Weight: 1.8 kg

MATERIALS WITH MEDIA CONTACT

Diaphragm: PTFE

Plastics: PP, PP-n, PVDF

Rubber: EPDM

ORDERING INFORMATION

For standard configuration please refer to the item

numbers below.

Other options:

- also available in ABS (1, 11/4 , 11/2)

Weight: Approx. 7.5 kg

Eye shower, free standing,

anti-corrosive

Built-in FLOWFIX for

regulation of water fl ow

(26 l/min). Min. working

pressure: 1.5 bar.
