Presto CHEF профессиональный кухонный смеситель ref.70800

Артикул: P70800
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
344,40 €
Кол-во: - +
   - или -

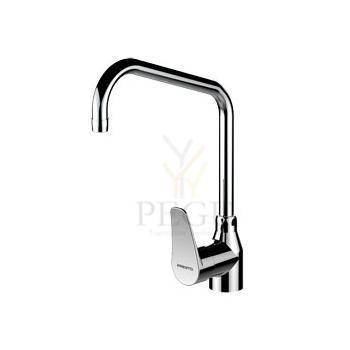

Ref: 70800 - Deck-mounted mixer – upward spout

> THE PRODUCT BENEFITS

Resistant to intensive use
Reinforced body / spout interface with double sliding bearings: no play and high endurance Robust spout: 22 mm in diameter
Ergonomic and robust control: easy grip
Robust mixing handle - possibility to install it laterally (installation flexibility)
Hygiene: spout with smooth interior
Product design
Ease of cleaning
High spout to let large containers pass
Ease of maintenance: availability of all spare parts
Flow straightener to channel water and avoid lateral water splashes

> TECHNICAL SPECIFICATIONS > Model:

Single-lever deck-mounted mixer with spout above

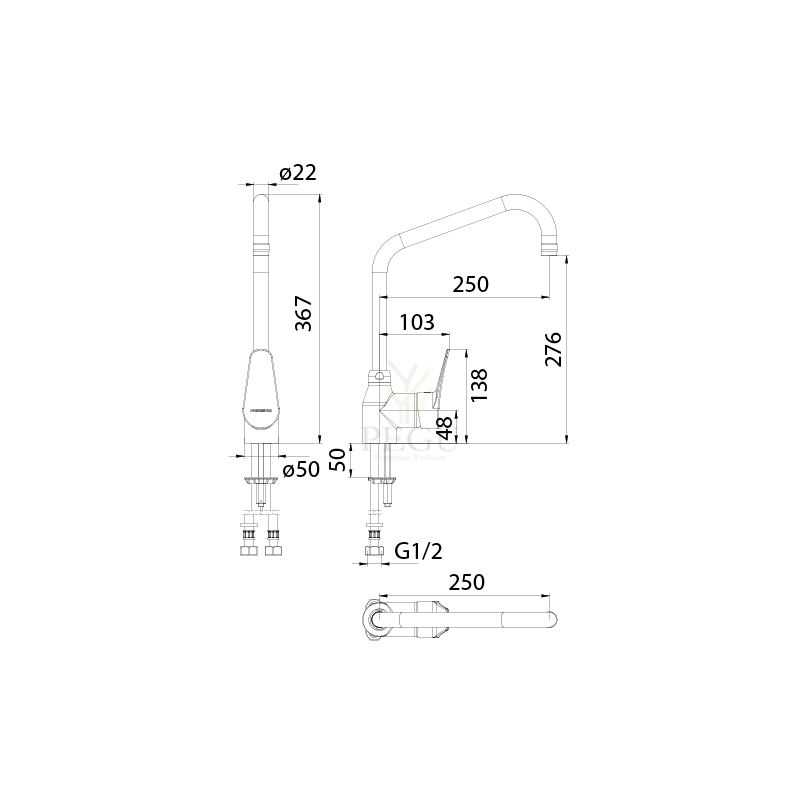

360 ° swivel spout, 250 mm projection, height under spout 276 mm, diameter 22 mm. Spout thickness: 1.5 mm. Ceramic cartridge
Interchangeable anti-tartar flow straightener

> Recommended working pressure:

1 to 5 bars

> Flow rate:

25L / min at 38°C at 3 bar

> Hydraulic supply:

G 1/2 '' (15x 21)

> Material and color of finish:

Chromed brass body and spout Material compliant with the "UBA" list

> Thermal resistance :

Withstands a temperature of 75 ° C for 30 minutes (as part of thermal shock).

> Delivered with :

1 fixing bracket
2 PEX flexible hoses with stainless steel braided nut G1 / 2 '' Lg 660 mm with non-return valves NF 2 filters

> Option:

Possibility of adding an extension sold separately, facilitating the passage of large containers

> Standards and approvals:

Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227

Файлы

Схожие продукты

Presto Maesto köögisegisti

C300mm, H320mm

2 ventiiliga

Артикул: P70562 ,   Время доставки: 14-21 päeva
315,90 € (10%)
351,00 €

Twin hole pre-rinse set with mixer
Ref. 5633

Complete pre-rinse set with bib tap.
Deck-mounted twin hole mixer with 150mm centres with:
- Valve heads with reinforced mechanisms with ergonomic control levers.
- Offset inlet connections with M1/2" tails.
Bib tap with:
- Swivelling, tubular spout L. 200mm.
- 25 lpm full flow rate achieved within the first 90°.
- Valve head with reinforced mechanism with ergonomic control lever.
Black, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
Black, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.



TECHNICAL FEATURES

Twin hole pre-rinse set with mixer
Ref. 5633

Connector M1/2"
Height 1110 - 1230mm
Drop height 345 - 585mm
Flow rate 25 lpm
Width to the wall 35 - 162mm
Finish Chrome-plated brass
Артикул: DE-5633 ,   Время доставки: 14-21 день
1093,00 €

Twin hole pre-rinse set with mixer
Ref. 5633UK

Complete pre-rinse set with bib tap.
Deck-mounted twin hole mixer with 180mm centres with:
- Valve heads with reinforced mechanisms with ergonomic control levers.
- Offset inlet connections with M1/2" tails.
Bib tap with:
- Swivelling, tubular spout L. 200mm.
- 25 lpm full flow rate achieved within the first 90°.
- Valve head with reinforced mechanism with ergonomic control lever.
Black, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
Black, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.



TECHNICAL FEATURES

Twin hole pre-rinse set with mixer
Ref. 5633UK

Connector M1/2"
Height 1110-1230mm
Drop height 345 - 585mm
Flow rate 25 lpm
Width to the wall 35 - 162mm
Finish Chrome-plated brass
Артикул: DE-5633UK ,   Время доставки: 14-21 день
1105,00 €

Wall-mounted pre-rinse set with mixer
Ref. G6432

Complete pre-rinse set with bib tap.
Wall-mounted F3/4" mixer with 150mm centres with:
- Valve heads with control knobs.
- Non-return valves integrated in the mixer.
Bib tap with:
- Telescopic, swivelling spout L. 200-290mm with 25 lpm flow rate at the outlet.
- Valve head with control knob.
White, scale-resistant M1/2" hand spray with adjustable spray and 9 lpm flow rate at the outlet.
White, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.





TECHNICAL FEATURES

Wall-mounted pre-rinse set with mixer
Ref. G6432

Connector F3/4"
Flow rate 25 lpm
Width to the wall 35-162mm
Finish Chrome-plated brass
Артикул: DE-G6432 ,   Время доставки: 14-21 день
846,00 €

Ref: 70818 - Column –deck-mounted mixer – rinsing head



> THE PRODUCT BENEFITS

Resistant to intensive use
Spring flexibility
Ergonomic hand shower with continuous flow function and gripping surface limiting the risk of burns. Tip to absorb shocks. Locking hook to avoid MSDs (musculoskeletal disorders)
Reinforced body / column interface
Robust mixing handle - possibility of installing it laterally
Product design
Adjustable wall support
PU sheath shower hose to avoid bacterial niches and facilitate cleaning
Ease of maintenance: availability of all spare parts

> TECHNICAL SPECIFICATIONS > Dimensions:

Maximum fixing height: 632 mm

> Model:

Single-lever mixer with ceramic cartridge
Black M1/ 2'' hand shower with grip surface limiting the risk of burns. Regulated flow 12L / min. User adjustable jet: concentrated or wetting. Anti-scale shower head. Locking hook for continuous flow. Integrated non-return valve.
Guide spring for stainless steel hose
Adjustable wall support, can be cut from 60 to 200 mm (from column to wall)
Adjustable hand shower holder: left or right

> Recommended working pressure:

1 to 5 bars

> Shower flow:

12 L /min at 3 bar

> Hydraulic supply:

G 1/2 '' (15x 21)

> Material and color of finish:

Body and column in chromed brass
Injected metal hook
Handle and jet outlet in impact-resistant, temperature-resistant technical polymer and compatible with drinking water Material compliant with the "UBA" list

> Thermal resistance :

Withstands a temperature of 75 ° C for 30 minutes (in the context of thermal shock).

> Delivered with :

1 fixing bracket
1 filter
2 PEX flexible hoses with stainless steel braided nut G1 / 2 '' Lg 660 mm with non-return valves NF
1 stainless steel braided hose (hand shower) surrounded by a PU sheath, resistant to temperatures up to 90 ° C. Continuous operating temperature at 70 ° C maximum
NF check valve on the hand shower

> Standards and approvals:

Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540

Артикул: P70818 ,   Время доставки: 14-21 день
925,00 €
