Presto CHEF профессиональный кухонный смеситель ref.70802
Бренд:
Единица: шт
Время доставки: 14-21 день
инфо e-mail : info@pegu.ee
SUVI261 код скидки ввести в поле купона при оформлении покупки!

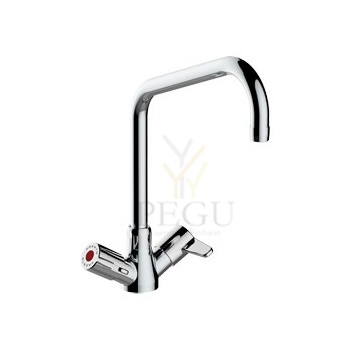

Ref: 70802 - Deck-mounted single hole mixer with upward spout
> THE PRODUCT BENEFITS
Resistant to intensive use
Reinforced body / spout interface with double sliding bearings: no play and high endurance
Robust spout: 22 mm in diameter
Intuitive and ergonomic knobs: easy grip
Hygiene: spout with smooth interior
Product design
Ease of cleaning
High spout to let large containers pass
Easy maintenance: presence of a slot under the red / blue patch allowing the passage of a screwdriver Ease of maintenance: availability of all spare parts
Flow straightener to channel water and avoid lateral water splashes
> TECHNICAL SPECIFICATIONS > Model:
Deck-mounted single hole mixer with upward spout

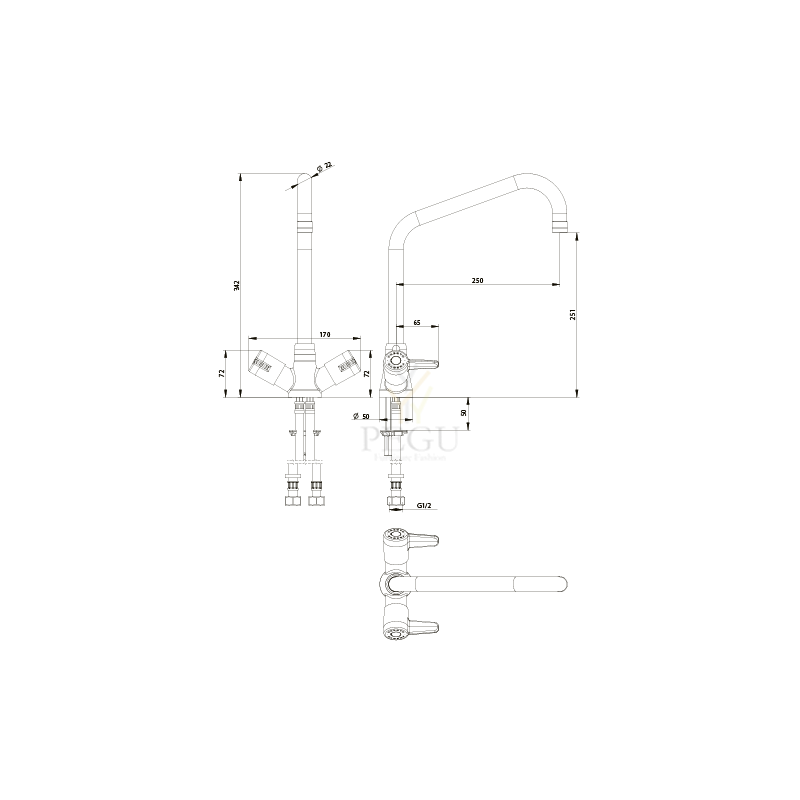

360 ° swivel spout, projection 250 mm, height under spout 251 mm, diameter 22 mm. Spout thickness: 1.5 mm. 1/4 turn ceramic head with flow rate 37L / min at 3 bar
Interchangeable anti-tartar flow straightener
> Recommended working pressure:
1 to 5 bars
> Flow rate:
37L / min at 3 bar
> Hydraulic supply:
G 1/2 '' (15x 21)
> Material and color of finish:
Chromed brass body and spout Material compliant with the "UBA" list
> Thermal resistance :
Withstands a temperature of 75 ° C for 30 minutes (as part of thermal shock).
> Delivered with:
1 fixing bracket
2 PEX flexible hoses with stainless steel braided nut G1 / 2 '' Lg 660 mm with non-return valves NF 2 filters
> Option:
Possibility of adding an extension sold separately, facilitating the passage of large containers
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
Файлы
Stainless steel floor standing bulk sink, 700x700x850 mm
Characteristics
- stainless steel bulk sink with supporting legs with a sheating
- without a tap hole (could be made to order)
- possibility of fine plane regulation by the regulation screws on the supporting legs
- available also in dimensions 600 x 600 x 850 mm
- material CrNi 18/10 (AISI-304)
- brushed finish
- different dimensions could be made to order
| Order number | 93150 |
| Code | SLUN 15 |
Single hole mixer - 100 lpm
Ref. 5612
Deck-mounted single hole mixer with extension column for stove tops.
Swivelling, tubular spout Ø 22mm H. 560mm L.300mm.
Star-shaped, brass flow straightener.
Water-free guided valve heads with reinforced mechanisms.
Shock-resistant, ergonomic ball levers.
Flow rate 100 lpm at 3 bar.
Full flow rate within the first 90°.
Spout with smooth interior.
Chrome-plated brass body and spout.
Reinforced fixings.
Soldered copper pipe water inlets.
Wall-mounted pre-rinse set with mixer
Ref. 5634
Complete pre-rinse set with bib tap.
Wall-mounted mixer, F3/4" with adjustable centres with:
- Valve heads with reinforced mechanisms with ergonomic control levers.
- M1/2" M3/4" offset connectors.
- Non-return valves integrated in the mixer.
Bib tap with:
- Swivelling, tubular spout L. 200mm.
- 25 lpm full flow rate achieved within 90°.
- Valve head with reinforced mechanism with ergonomic control lever.
Black, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
Black, reinforced, food-grade flexible hose L.0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
TECHNICAL FEATURES
Wall-mounted pre-rinse set with mixer
Ref. 5634
| Connector | M1/2" |
|---|---|
| Height | 860 - 930mm |
| Flow rate | 25 lpm |
| Width to the wall | 35 - 162mm |
| Finish | Chrome-plated brass |
Сердечник для крана Presto MAESTRO G 1/2’’
SIMPLE CARTRIDGE REPLACEMENT FOR PROFESSIONAL PRESTO TAP
Ref: 70814 - Wall-mounted column with 2 holes– rinsing head
> THE PRODUCT BENEFITS
Resistant to intensive use
Spring flexibility
Ergonomic hand shower with continuous flow function, and gripping surface limiting the risk of burns. Tip to absorb shocks. Locking hook to avoid MSDs (musculoskeletal disorders)
Reinforced body / column interface
Intuitive and ergonomic knobs: easy grip
Product design
Wall version: facilitates cleaning and promotes optimal hygiene
Adjustable wall support
PU sheath shower hose to avoid bacterial niches and facilitate cleaning
Easy maintenance: presence of a slot under the red / blue patch allowing the passage of a screwdriver
Ease of maintenance: availability of all spare parts
> TECHNICAL SPECIFICATIONS > Model:
1/4 turn ceramic head mixer
Black M 1/2'' hand shower with grip surface limiting the risk of burns
Shower flow regulated at 12L / min. User adjustable jet: concentrated or wetting. Anti-scale shower head. Locking hook for continuous flow. Integrated non-return valve. Guide spring for stainless steel hose
Adjustable wall support, can be cut from 60 to 200 mm (from column to wall)
Adjustable hand shower holder: left or right
> Recommended working pressure:
1 to 5 bars
> Shower flow:
12L /min at 3 bar
> Hydraulic supply:
G 1/2 '' (15x 21)
> Material and color of finish:
Body and column in chromed brass Injected metal hook
Material compliant with the "UBA" list
> Thermal resistance :
Withstands a temperature of 75 ° C for 30 minutes (as part of thermal shock).
> Delivered with :
Eccentric rosettes
1 filter
1 stainless steel braided hose (hand shower) surrounded by a PU sheath, resistant to temperatures up to 90 ° C. Continuous operating temperature at 70 ° C maximum
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
