Раковина с ножками 700x700, высота 850mm , Н/Р сталь

Артикул: SA-SLUN15
Бренд:
Единица: шт
Время доставки: 3-5 недель
Цена:
1017,00 €
Кол-во: - +
   - или -

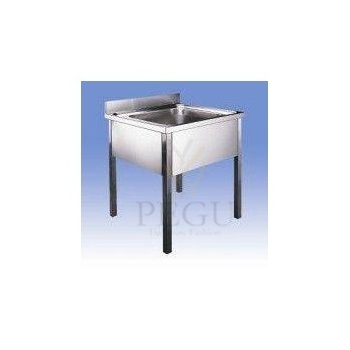

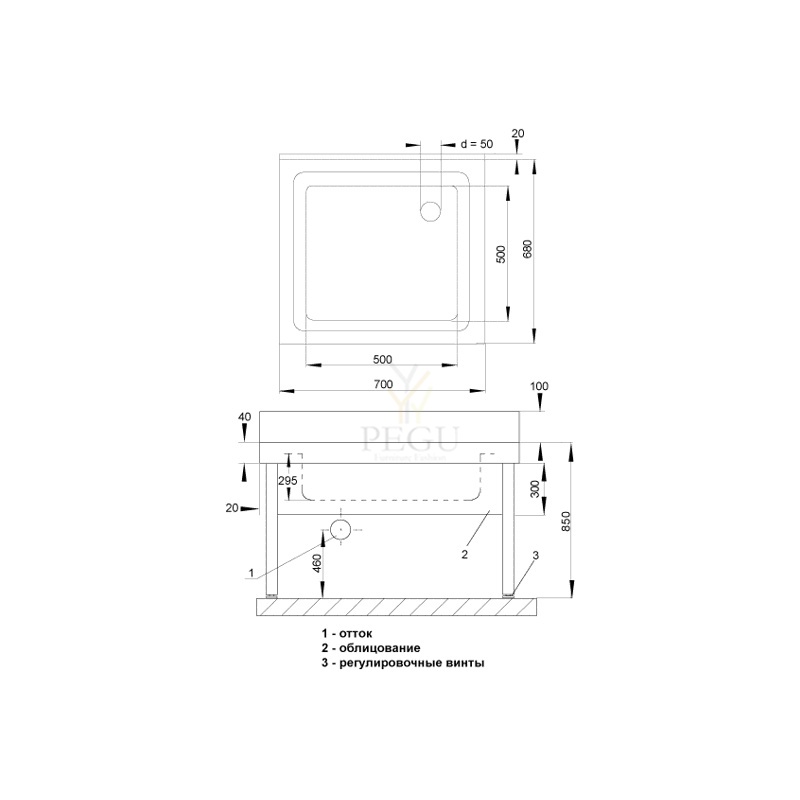

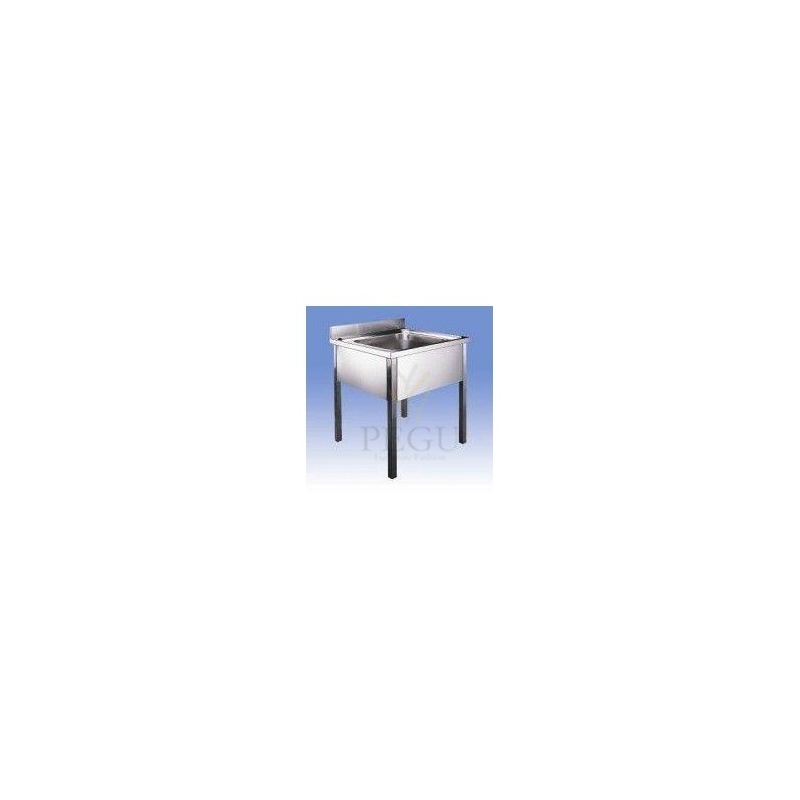

Stainless steel floor standing bulk sink, 700x700x850 mm



Characteristics

  • stainless steel bulk sink with supporting legs with a sheating
  • without a tap hole (could be made to order)
  • possibility of fine plane regulation by the regulation screws on the supporting legs
  • available also in dimensions 600 x 600 x 850 mm
  • material CrNi 18/10 (AISI-304)
  • brushed finish
  • different dimensions could be made to order
Order number 93150
Code SLUN 15

Файлы

Схожие продукты
Артикул: P29002 ,   Время доставки: 7-14 дней
123,30 € (10%)
137,00 €
Артикул: FP-002 ,   Время доставки: 7 недель
593,75 € (5%)
625,00 €
On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Артикул: AZP-PV 01.D.75.P ,   Время доставки: 3-4 недели
214,20 € (10%)
238,00 €

General

Size (mm): 525 x 334 x 97
Large bowl (mm): 500 x 310 x 83
Designer: Halvor Thorsen





Description

Icon Hand Wash Basin IC1-32 in stainless steel 18/10, is designed for under mounting.The hand wash basin is pressed in one piece and has laser-cut integrated outlet holes that are concealed by a removable outlet cover.The basin is supplied with waste under part and overflow equipment.

Brushed finish.

Артикул: I-IC1 H ,   Время доставки: 14-21 день
187,00 €

Wall hung utility sink in stainless steel. Supplied with fixing brackets.

Артикул: I-VK44STD ,   Время доставки: 14-21 день
102,00 €
