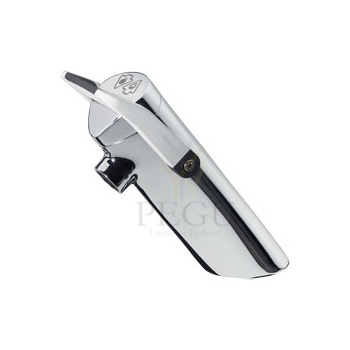

PRESTO NEO DUO S® самозапрный кран 7/11 sek, система антиблокировки 2L/min

Артикул: P64704
Бренд:
Единица: шт
Время доставки: 7-14 дней
Цена: 208,00 €
197,60 €
Kuumakse alates: 16,75 €
Кол-во: - +
   - или -

> Working pressure: 1 to 5 bar

> Flow: 1.9 l/min with flow regulator Anti water-hammer system

> Flow time: 7 seconds - lever upwards 11 seconds - lever downwards

> Hydraulic supply: G 1/2'' x 40

> Thermal resistance: This tap can withstand a thermal shock of 75°C for 30 minutes as part of a thermal shock programme

> Safety: With S® antiblocking system to prevent blocking in continuous flow

> Convenience: Soft-touch Two-coloured ergonomic lever, in glass fiber reinforced polymer

> Delivered with: 1 Filter gasket 1 base gasket 1 fixture nut + 1 stainless steel washer 1 Nut for 12x14 tube 1 rubber flat gasket 1 coloured sticker

> Standards / Approvals: Chrome-plated brass body compliant with standards NF EN1982 / NF EN12164 / NF EN12165 Nickel-Chrome surface treatment compliant with NF EN12540 Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227

Файлы

Схожие продукты

Vajutava nupuga segisti

P 400 S BC

Presto

kroom

15 sek. töötsükkel 3 bar

3-6 l/min

Артикул: P28610 ,   Время доставки: 7 дней
422,75 € (5%)
445,00 €
Артикул: P91016 ,   Время доставки: 7-14 дней
24,70 € (5%)
26,00 €

Питьевой фонтан с системой охлаждения, возможность набора воды в бутылку,  пол/стена пьезо кнопка,  Н/Р сталь AISI304 230V/50Hz

AFO 01.SCL

drinking fountain with cooling and spout for filling bottles designed to stand and to be attached to wall

AFO 01.SCL is a drinking fountain with cooling and spout for filling bottles designed to stand and to be attached to wall. User can select between uncooled water and water running through a flow cooler. Uncooled water is used for bottle filling as a standard – can be changed. Start/stop control by piezo-buttons – resistant solution. Facility keeper can set a time period after which the water flow automatically stops.

The product contains a flow cooler. It is not a design with cooled tank only where – after the pre-cooled amount of water is pumped out – the user has to wait for the next charge to be cooled.

Water supply is provided by a flexible hose, trap comprises an elastic flexible couple. Flexible design of water supply and outflow allows variable and easy connection of the drinking fountain as well as its dismounting.



Automatic drinking fountain (with a sensor) can be supplied per order.

AFO 01.SCL is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Package contents

  • Stainless housing with cone
  • Electronics and control piezo-buttons
  • Water supply and electromagnetic valves
  • Flow cooler
  • Flexible hose outflow
  • Fixing and connecting material
dimensions 330 x 900 x 365 mm
water outlet d = 40 mm
water inlet G 1/2"
water pressure 0,2 – 0,6 MPa, recommended 0,3 MPa
power supply 230 V, 50 Hz
power input 830 W
weight 25 kg



  • Set up water outlet d = 40 mm
  • Set up water inlet G 1/2"
  • Electric socket 230 V, or set up electric cable CYKY 3C x 1,5
Артикул: AZP-AFO01.SCL ,   Время доставки: 3-4 недель
5765,00 €

Complete assembling kit including pedal tap and spout

Technical features



It includes: pedal tap art. 02061, spout art. 02024, water connections with flexibles, check valves with filter




Артикул: IDR-KFL61/24 ,   Время доставки: 14-21 день
250,20 € (10%)
278,00 €
