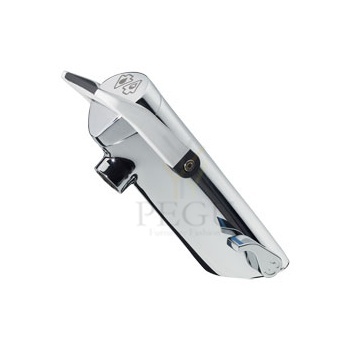

PRESTO NEO DUO® самозапорный смеситель 15 sek
Коды и спецификации доступны по запросу для проектов и точного подбора.
Мы рекомендуем делиться ссылкой на товар, а не только кодом — это исключает ошибки.
Обратитесь напрямую: info@pegu.ee
Единица: шт
Время доставки: 7-14 дней
Продавец: PEGU OÜ
> Working pressure: 1 to 5 bar
> Flow: 3 l/min at 3 bars - 4-position setting Anti water-hammer system
> Flow time: 15 seconds - lever upwards or downwards
> Hydraulic supply: 2 PEX hoses DN8 G3/8'' - 350mm
> Thermal resistance: This tap can withstand a thermal shock of 75°C for 30 minutes as part of a thermal shock programme
> Safety: With temperature limiter (at 38°C for cold water at 15°C/3 bar and hot water at 60°C/3 bar)
> Convenience: Soft-touch Two-coloured ergonomic lever, in glass fiber reinforced polymer
> Delivered with: 2 PEX hoses with swivel nut and NF check valves 1 base gasket 2 MM 3/8'' (12x17) stop valves 2 Filter gaskets 1 Fixing bracket > Standards / Approvals: Chrome-plated brass body compliant with standards NF EN1982 / NF EN12164 / NF EN12165 Nickel-Chrome surface treatment compliant with NF EN12540 Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227
Файлы
Vajutava nupuga dušši segisti
ALPA
Presto
kroom
30 sek. töötsükkel 3 bar
Peitsegisti 30 sek töötsükkel
Antiblock süsteemiga
Technical information
- ESS (energy saving system)
- Ceramic cartridge with soft closing function
- Adjustable flow control and temperature limiter
- Eco (energy and water saving constant flow aerator, 5 l/min at 200–600 kPa)
- Soft PEX® hoses with 3/8" connecting nut (stainless steel braided)
- Hole diameter Ø34-37 mm
> Working pressure : 1 to 5 bar
> Flow : 6 l/min with integrated flow limiter Anti-water-hammering design Hand-held shower on rail with chrome plated slide > Flow time : 30 seconds (± 5 sec.)
> Hydraulic supply : G 1/2" (15x21), top or rear water inlet. For rear water inlet, we recommend to add the adaptation kit under the reference 91026. On ALPA NF IB mixer tap with NF check valves
> Material : Anodised aluminium extruded section (2.5mm thickness) Aluminium removable valve plate, peinted RAL 7005 colour High resistance RAL 7005 coloured ABS covers
> Functioning: Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate
> Thermal resistance : Resistant to a temperature of 75°C for 30-minute-thermal-shocks > Security : Adjustable tamper-proof temperature limiter to prevent scalding
> Delivered with : 1/2" hoses with revolving nuts MM 1/2" (15x21) straight stop valve and 250 micron filters Fastening screw and instruction manual
> Standards & approvals : Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
> Working pressure: 1 to 5 bar
> Flow: 3 l/min at 3 bars - 4-position setting Anti water-hammer system
> Flow time: 7 seconds
> Hydraulic supply: G 1/2" x 15 - cold water
> Dimensions : 150mm projection
> Thermal resistance: This tap can withstand a thermal shock of 75°C for 30 minutes as part of a thermal shock programme
> Safety: With S® antiblocking system to prevent blocking in continuous flow Interchangeable head and non-turnable push button to avoid premature wear Non-removable blue circled marker
> Delivered with: 1 Installation manual
> Standards / Approvals: Stainless steel body (304 L) Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227
