Радарное устройство смыва для писсуара Nova, Renova, Nova Top, с встроенным источником питания 230 V AC

Артикул: SA-SLP07Z
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
535,00 €
Кол-во: - +
   - или -

SLP 07Z



Radar flushing unit on the mounting rail, 230 V AC



Characteristics

  • radar flushing unit for urinals NOVA PRO FELIX 26 000; RENOVA Nr. 1 235 300; NOVA PRO ALEX 66 000; NOVA PRO M36 000; RENOVA Nr. 1 PLAN 235 100 (Kolo)
  • economy flushing by 1 liter of water
  • easy installation by the help of paper drill template
  • whole flushing unit is placed behind the urinal
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
  • automatic flushing after each 6 hours non-use
  • possibility to regulate a water flow by the angle valve
  • radar flushing unit recharges a water to the siphon after each flushing
Order number 01071
Code SLP 07Z


Supply specification

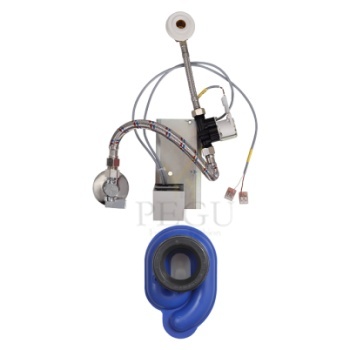

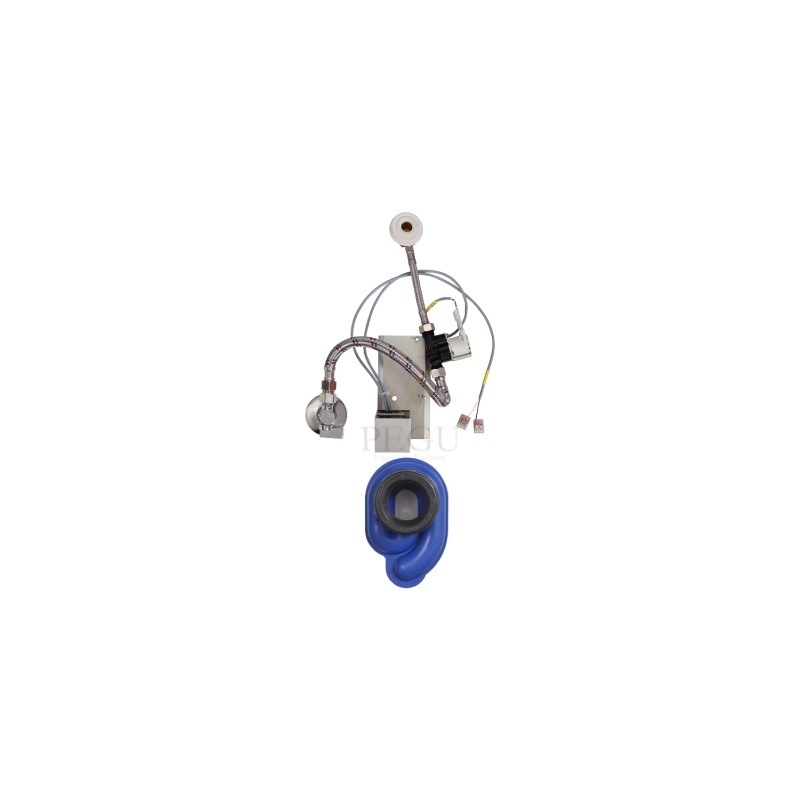

SLP 07Z - Supply No. 01071 - radar flushing unit on the mounting rail, electromagnetic valve, connecting hoses, angle valve with filter and check valve, inlet fitting with a rubber sealling, siphon, paper drill template, power supply

Technical information

Operating voltage: 230 V AC/50 Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber sealing

Видео



Схожие продукты
  • Ceramic cartridge
  • Scalding protection (38ºC)
  • Eco-Save water saving feature
  • Pop up waste with open and close click-function
  • Rub-clean aerator
Артикул: D6583774 ,   Время доставки: 7 дней
345,80 € (5%)
364,00 €



  • Viimistlused Kroom
  • Standardfunktsioonid
  • Keraamiline tööorgan.
  • Põletuskaitsega
  • Veesäästu funktsioon Eco-Save.
  • Kummiaeraator – lihtne puhastada.
  • Külma stardiga, 6l min
Артикул: D6083710 ,   Время доставки: 7-14 дней
172,00 €

SLP 02NZ



Urinal infra-red flushing unit with a mounting box and integrated power supply, 230 V AC



Characteristics

  • system reacts to the user attendance in front of the urinal at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
  • water flows after the user leaves active range
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 03
  • automatic hygiene flushing after 24 hours non-use
  • possibility to regulate a water flow by the ball valve
Order number 42023
Code SLP 02NZ


Supply specification

SLP 02NZ - Supply No. 42023 - stainless steel cover with electronics, plastic mounting box with brass screw coupling, electromagnetic valve and ball valve, power supply

Technical information

Stainless steel cover dimension: 170 x 170 x 10 mm
Mounting box dimension: 140 x 140 x 75 mm
Operating voltage: 230 V AC/50 Hz
Active range: 0,6 - 0,75 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 3/4“
Water outlet: male thread G 3/4“
Артикул: SA-SLP02NZ ,   Время доставки: 14-21 день
299,00 €

SLP 32RZ



Urinal Arq with cover with a radar flushing unit and integrated power supply, 230 V AC



Characteristics

  • easy installation
  • whole flushing unit is placed behind the urinal
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
  • automatic flushing after each 6 hours non-use
  • possibility to regulate a water flow by the angle valve
  • radar flushing unit recharges a water to the siphon after each flushing
Order number 01325
Code SLP 32RZ


Supply specification

SLP 32RZ - Supply No. 01325 - ceramic urinal with the radar flushing unit, plastic mounting box with brass screw coupling, electromagnetic valve and angle valve, inlet fitting with a rubber sealing, power supply

Technical information

Mounting box dimension: 140 x 140 x 75 mm
Operating voltage: 230 V AC/50 Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 3/4“
Water outlet: inlet fitting with a rubber sealing
Артикул: SA-SLP32RZ ,   Время доставки: 14-21 день
922,45 € (5%)
971,00 €
