Раковина Fraju Н/Р сталь с отверстием под смеситель , без перелива Delabie 121430

Артикул: DE-121430
Бренд:
Единица: шт
Время доставки: 1-2 недели
Цена:
680,00 €
Kuumakse alates: 57,80 €
Кол-во: - +

Раковина Fraju Н/Р сталь с отверстием под смеситель , без перелива Delabie 121430

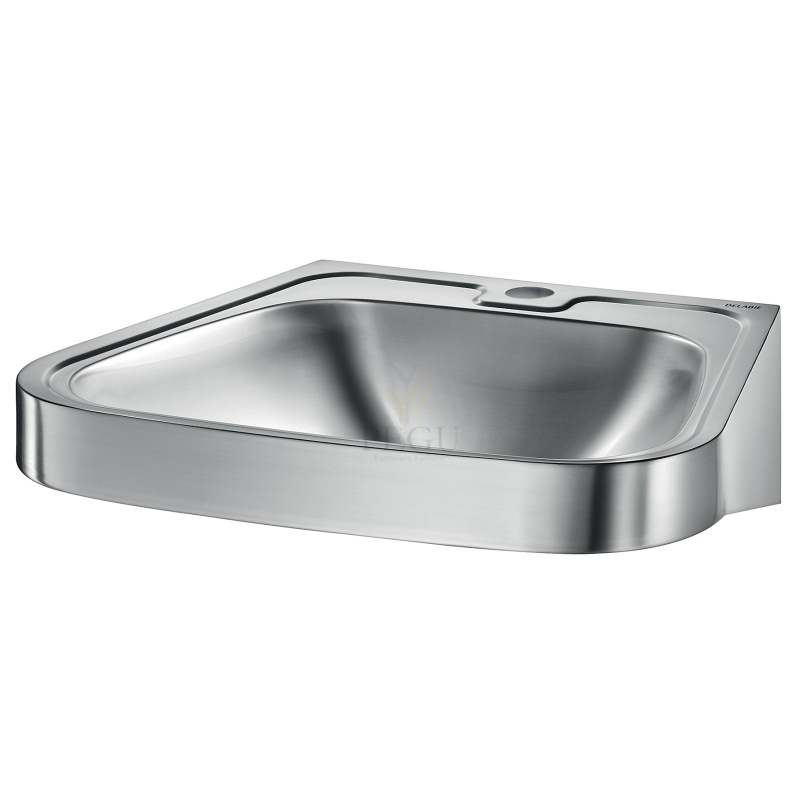

FRAJU wall-mounted washbasin
Ref. 121430

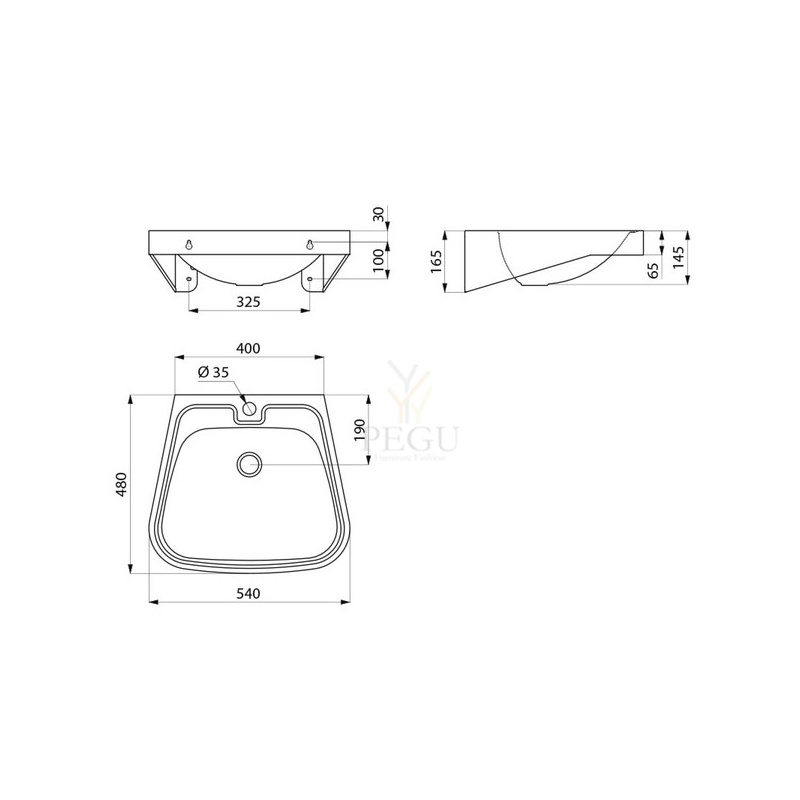

Wall-mounted washbasin, 540x480mm.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm for the bowl and 1.5mm for surround.
Rounded edges prevent injury.
With Ø 35mm central tap hole.
Supplied with 1¼" waste.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 4.65kg.

Файлы

Совместимые продукты

Защита сифона для раковины Fraju Н/Р сталь Delabie 100930

Valamu Fraju sifooni kate, R/V teras 100930

TECHNICAL FEATURES

Siphon cover for FRAJU washbasin
Ref. 100930

Height 400mm
Length 275mm
Width 160mm
Thickness 1.2mm
Finish Polished satin 304 stainless steel
Артикул: DE-100930 ,   Время доставки: 1-2 недели ,   Viimistlus:
246,00 €
Схожие продукты
Артикул: LI9127953 ,   Время доставки: 7 дней ,   Viimistlus:
25,00 €

Смеситель на раковину с инфракрасным сенсором VOLTA Presto 55160

Sensoriga valamusegisti

kroom

VOLTA

Presto

kroom





Артикул: P-55160 ,   Время доставки: 7 дней ,   Viimistlus:
834,00 €

Раковина с ножками 700x700, высота 850mm , Н/Р сталь

Stainless steel floor standing bulk sink, 700x700x850 mm



Characteristics

  • stainless steel bulk sink with supporting legs with a sheating
  • without a tap hole (could be made to order)
  • possibility of fine plane regulation by the regulation screws on the supporting legs
  • available also in dimensions 600 x 600 x 850 mm
  • material CrNi 18/10 (AISI-304)
  • brushed finish
  • different dimensions could be made to order
Order number 93150
Code SLUN 15
Артикул: SA-SLUN15 ,   Время доставки: 3-5 недель ,   Viimistlus:
1900,00 €

Антивандальный унитаз INVA Н/Р сталь

AUZ 08 INV is a stainless-steel WC in matt design for the disabled. It is a stainless-steel toilet to stand on the floor at the wall. The drain is directed backwards (the bottom drain version AUZ 02 INV). The closet is based on the standard AUZ 08, which is heightened and lengthened to fulfil the directive regarding products for disabled persons. To increase the user comfort, the seating part is provided with a seat from hardened plastic. The closet includes a removable backrest recommended by the League for the rights of the wheelchair bound.



The standing WC is suitable for places where the common closet cannot be attached to the side wall, because of a thin bearing particle, for example.



It is suitable to supplement the closet with an automatic pressure-water flushing device with delayed flushing AUZ 3 INV (suitable for the disabled) or any flushing device with a cistern.

Basic technical information
Water inlet: d= 34 - 50 mm
Min. water flow: 70 l/min
Outlet: d= 90 mm
Weight: 27 kg

Complete delivery
  • Stainless steel closet
  • Plastic seat
  • Anchoring material
  • Stainless-steel backrest
Артикул: AZP-AUZ-08-INV ,   Время доставки: 3-4 недели ,   Viimistlus:
2672,10 €



ZAC 1/20, ZAC 1/50, ZAC 1/36L

power supply






ZAC is a safe source of voltage supply intended to power automatic sanitary equipment made by AZP Brno, Ltd.

The source of power supply consists of a safety transformer produced in accordance with ČSN IEC 742+A1 standards. All kinds of sensors can be connected to these sources in random combinations, as can other devices with a supply voltage of 12 V, 50 Hz (total power requirement either 20 VA, 50 VA or 36 VA).

ZAC 1/20 and ZAC 1/50 are independent sources, 1/36L ZAC is the source for the location on the DIN-rail (4 modules).




Version types
ZAC 1/20 - source of power supply with output 20 VA
ZAC 1/50 - source of power supply with output 50 VA
ZAC 1/36L - source of power supply with output 36 VA

Source of power supply can be placed at a maximum distance of 30 m from the connected appliance.

Basic technical information
Input voltage: 230 V, 50 Hz
Output voltage: 12 V, 50 Hz
Power requirement: 20 VA (ZAC 1/20)
  50 VA (ZAC 1/50)
  36 VA (ZAC 1/36L)
Electricity protection: IP 55 (ZAC 1/20, ZAC 1/50)
  IP 20 (ZAC 1/36L)
Weight: 0,8 kg (ZAC 1/20, ZAC 1/36L)
  1,2 kg (ZAC 1/50)


Requirements for setting up the construction
ZAC 1/20, ZAC 1/50
  1. Set-up supply of electricity 230 V,50 Hz – cable CYKY 3Cx1,5
  2. Set-up niche for flush mounting – size as per installed source
  3. Distribution to each device is carried out by cable CYKY 2Ax1,5
ZAC 1/36 L
  1. It is installed on the DIN-rail - width of 4 modules


Figure
ZAC 1/20

ZAC 1/50





Product title
ZAC 1/20 -
power supply for up to 3 devices - 230V, 50Hz
ZAC 1/50 -
power supply for up to 8 devices - 230V, 50Hz
ZAC 1/36L -
power supply for up to 6 devices - 230V, 50Hz
Артикул: AZP-ZAC 1-20 ,   Время доставки: 3-4 недели ,   Viimistlus:
106,72 €
