Pissuaari vahesein URC, roostevaba teras AISI 304 Portinox URC-SEP Zoom

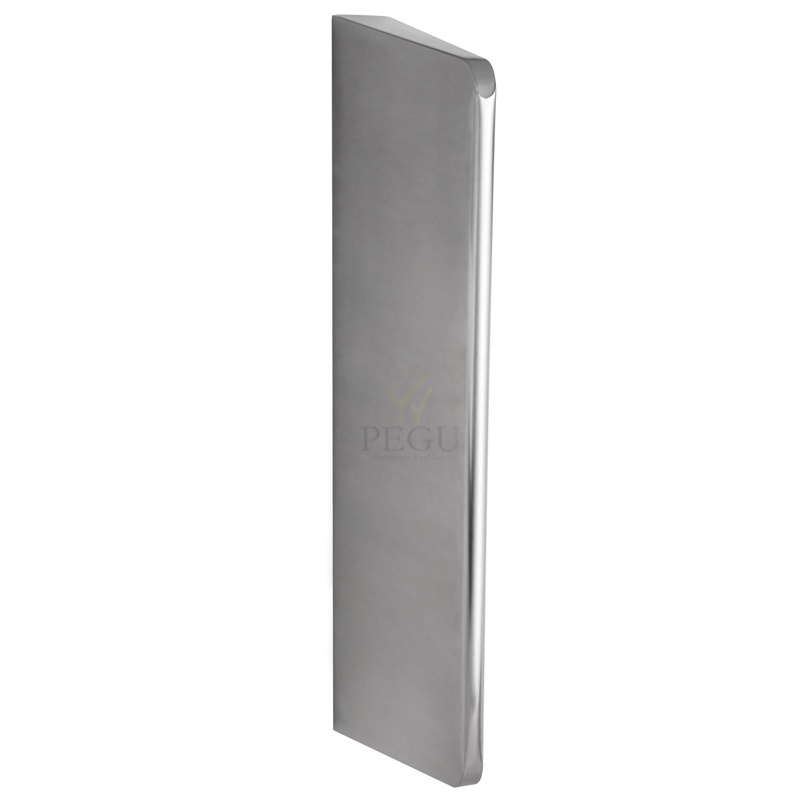

Разделительная стенка для писсуара URC, нержавеющая сталь AISI 304 Portinox URC-SEP

Артикул: PURC-SEP
Бренд:
Единица: шт
Время доставки: 14-30 дней
Цена:
808,03 €
Kuumakse alates: 68,68 €
Кол-во: - +

Разделительная стенка для писсуара URC, нержавеющая сталь AISI 304 Portinox URC-SEP

1092х383х80 мм

Схожие продукты

Portinox WC подвесной INS-535-OVC + сидение махагон

Нержавеющая сталь

Артикул: PINS-535-OVC+PWC-Wood-mahagon ,   Время доставки: 8 недель ,   Viimistlus:
1824,43 €
Антивандалльная душевая пьезо кнопка Н/Р сталь, для смешанной воды,  без адаптора



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Артикул: AZP-AUS 11 ,   Время доставки: 3-4 недели ,   Viimistlus:
381,15 €

Смывной механизм для писсуара с сенсорным управлением  с монтажной коробкой, 24 V DC

SLP 02K



Urinal infra-red flushing unit with a mounting box, 24 V DC



Characteristics

  • system reacts to the user attendance in front of the urinal at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
  • water flows after the user leaves active range
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 03
  • automatic hygiene flushing after 24 hours non-use
  • possibility to regulate a water flow by the ball valve
Order number 01022
Code SLP 02K


Supply specification

SLP 02K - Supply No. 01022 - stainless steel cover with electronics, plastic mounting box with brass screw coupling, electromagnetic valve and ball valve

Technical information

Stainless steel cover dimension: 170 x 170 x 10 mm
Mounting box dimension:140 x 140 x 75 mm
Operating voltage: 24 V DC
Active range: 0,6 - 0,75 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 3/4“
Water outlet: male thread G 3/4“
Артикул: SA-SLP02K ,   Время доставки: 14-21 день ,   Viimistlus:
360,82 €

Керамический писсуар HOME с крышкой Alessi LAUFEN с радаром слива Sanela,  24V DC

LP 24R



Urinal Alessi with cover with a radar flushing unit, 24 V DC



Characteristics

  • easy installation
  • whole flushing unit is placed behind the urinal
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
  • automatic flushing after each 6 hours non-use
  • possibility to regulate a water flow by the angle valve
  • radar flushing unit recharges a water to the siphon after each flushing
Order number 01244
Code SLP 24R


Supply specification

SLP 24R - Supply No. 01244 - ceramic urinal with radar flushing unit, plastic mounting box with brass screw coupling, electromagnetic valve and ball valve, inlet fitting with a rubber sealing, mounting set, siphon, plastic cover

Technical information

Dimension of mounting box: 140 x 140 x 75 mm
Operating voltage: 24 V DC
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 3/4“
Water outlet: inlet fitting with a rubber sealing
Артикул: SA-SLP24R ,   Время доставки: 14-21 день ,   Viimistlus:
2628,39 €

Керамический писсуар Caprino Plus с радаром Sanela,  с встроенным источником питания 230V/ AC

SLP 49RZ



Urinal Caprino Plus with a radar flushing unit and integrated power supply, 230 V AC



Characteristics

  • economy flushing by 1 liter of water
  • easy installation by the help of paper drill template
  • whole flushing unit is placed behind the urinal
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
  • automatic flushing after each 6 hours non-use
  • possibility to regulate a water flow by the ball valve
  • radar flushing unit recharges a water to the siphon after each flushing
Order number 01495
Code SLP 49RZ


Supply specification

SLP 49RZ - Supply No. 01495 - ceramic urinal with the radar flushing unit on the mounting rail, electromagnetic valve, connecting hoses, angle valve with filter and check valve, inlet fitting with a rubber sealing, siphon, mounting set, paper drill template, power supply

Technical information

Operating voltage: 230 V AC/50 Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber sealing
Артикул: SA-SLP49RZ ,   Время доставки: 14-21 день ,   Viimistlus:
1364,00 €
