Ø 38 x 208 mm
projection 130 mm

• Tabletop soap dispenser in chrome-plated brass.
• Solid body in brass; visible surfaces high-gloss chrome-plated.
• Design height: 208 mm
  Outlet height: 198 mm
  Projection: 111 mm
• Non-drip soap pump with 500 ml soap container in plastics and pressure valve in brass.
• Also available with 250 ml or 1000 ml containers in plastics.
• 500 ml container in stainless steel as an option for a surcharge.
• Designed for standard liquid soaps.
• Refillable from above by unscrewing the top part.
• Wear parts can be replaced as modules.
• Installation dimensions: Ø 22-26 mm,
  surface thickness max. 40 mm.
• Mounting: With one counternut.
• Delivery includes fixing material.

• Weight (in kg): 1,6

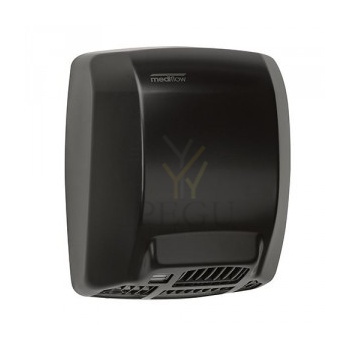

• The Speedflow® Plus line of hand dryers is categorized within the eco-fast range of product but with the added value of complying with the requirements of ADAAG for accessibility of public washrooms. This regulation requires that the depth of the dryer cannot exceed 100 mm to facilitate access and movement to people with disabilities inside the washroom.

• The new Speedflow® Plus hand dryer is especially suitable for places with a high traffic frequency such as airports, shopping centers, sports facilities, etc.

• Energy efficient, this hand dryer presents very low power consumption. With a maximum power of 850 W, this hand dryer, depending on the configuration applied, consumes only between 0.6 and 2.8 watts per drying cycle and 0.4 W in stand-by mode, one of the lowest energy consumption in the market.

• Fast (maximum air speed 400 km / h) and quiet (57-65 dBA). Dries hands in only 12 seconds.

• Adjustable power motor to regulate power consumption between 180 and 850 W.

• It incorporates as standard a HEPA filter medium that filters solid particles in suspension and can optionally incorporate an ionizer ("Ion Hygenic") that purifies the air through negatively charged particles (anions).

• Micro-switch "ON/OFF" located on the electronic board. Allows to activate/deactivate the heating element.

• Detection of fixed targets. If a static object is detected in front of the sensor, the hand dryer automatically stops at 3-5 seconds as a safety measure.

• Automatic safety cut-out. After 30 seconds of continuous use the device switches off automatically.

298 x 298 x 121 mm
950 ml soap bottle / 950 ml tank disinfectant, 950 ml bottle lotion

• Combination consisting of a liquid soap-, disinfectant- and lotion dispenser in robust, germ-reducing and easy-care stainless steel (AISI 316L).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
  Further available surfaces: see below.
• Soap or lotion dispenser with one-hand operated and non-drip soap or lotion pump.
  Designed for standard 950 ml disposable bottles of liquid soap or lotion. Also refillable with large container using the plug-in tank as an option.
• Disinfectant dispenser with one-hand operated disinfectant pump with 950 ml tank arranged in the middle.
  Designed for standard disinfectants. Note: Not approved for medical areas!
• Inspection slots to indicate fill level.
• Accessible for refilling through lockable, hinged housing.
• Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
• Wear parts can be replaced as modules.
• Mounting: With four screws through key holes and one optional anti-theft hole in the back wall.
• Delivery includes fixing material, first fill with soap and lotion.

• Weight (in kg): 5,3

for WP 121
89 x 232 x 77 mm

0,3 kg

Tradition polished brass PVD

Damixa
