SOS душ для глаз+тела , настенный
Бренд:
Единица: шт
Время доставки: 3-4 недели
Продавец: PEGU OÜ

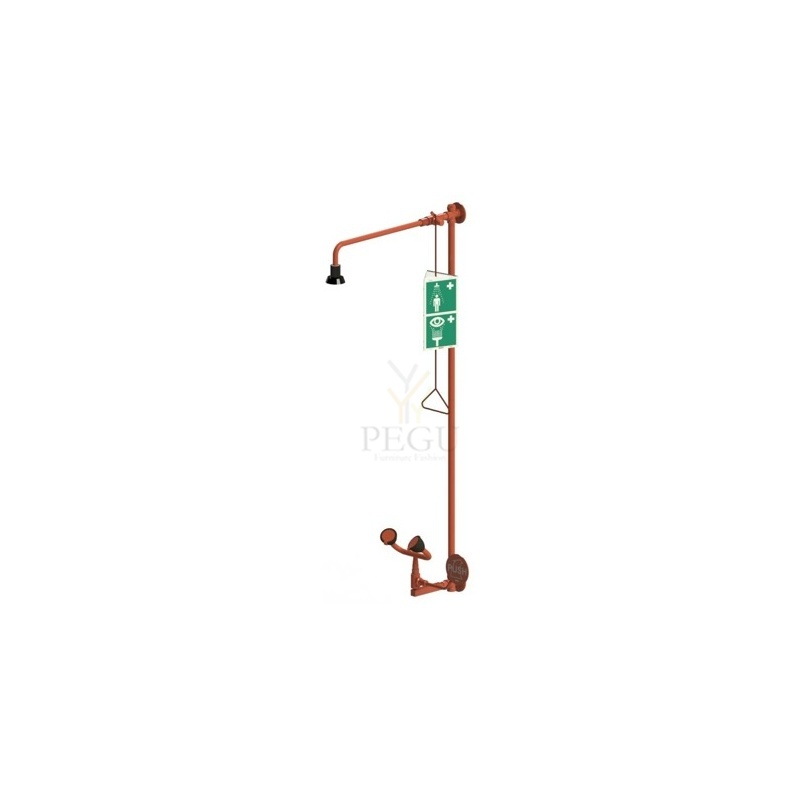

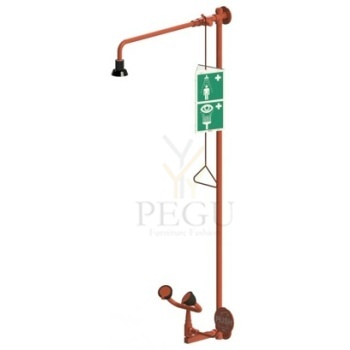

Kombinerad kropps- & ögon/ansiktsdusch för väggmontage (Utan skål)
Utrustad med självdränerande duschsil och ögondusch för minskad bakterietillväxt. Den röda POLYCOAT-lackerade rörstommen gör inte bra att första hjälpenutrustningen syns väldigt bra, den står även emot de flesta kemikalier, UV- blekning och värme.
• Kroppsdusch med effektiv spolbild, självdränerande duschsil
• Självdränerande ögon/ansiktsdusch med FLOWFIX 26 lit/min
• POLYCOAT-lackerad rörstomme
• 3-sidig efterlysande skylt monterad på dragstång, dekal & testkort
• Vikt: ca. 8 kg
• Anslutning: inv. DN25 i toppen eller botten
Artikelnummer: 17 455 009
Видео
Файлы
Ögon/ansiktsdusch med bänkfäste. Alla delar är ytbehandlade med BROEN-LABs POLYCOAT som inte bara gör att ögon- & ansiktsduschen syns väldigt bra, den står även emot de flesta kemikalier, UV blekning och värme. Utrustad med FLOWFIX som gör spolbilden stadig i varierande vattentryck. Aktiveras automatiskt då den för hand fälls ned över diskho, stängs när den fälls tillbaka.
• Min. arbetstryck: 1,5 bar
• Bänkmontage
• POLYCOAT står emot de flesta kemikalier
• FLOWFIX: 14 l/min
• 2-sidig efterlysande skylt, dekal & testkort
• Vikt: ca. 4,5 kg
• Anslutning: inv. DN15
Artikel nummer: 17 927 009
RSK nummer: 755 9685
Min. working pressure: 1.5 bar for all Eye Showers
Eye wash and safety shower combination
Ref. 9203
Free-standing eye wash and safety shower combination with manual or foot control includes:
Frost-free system as standard.
304 stainless steel basin Ø 250mm with green finish.
Eye wash spray heads fitted with protective caps in shock-resistant green ABS; will eject automatically when activated.
Flow rate 20 lpm at 3 bar, aerators have stainless steel double filters.
Circular shower head Ø 250mm in green, shock-resistant ABS.
Flow rate 70 lpm at 1 bar dynamic pressure (120 lpm at 3 bar dynamic pressure).
Water supply F1".
Pipework made from galvanised steel, grey powder-coated finish. Triangular pull handle in green powder-coated brass. Hand and foot controls in green powder-coated galvanised steel.
Fixed to the floor by a brass base plate (screws not included).
Supplied with identification signs for first aid equipment: "Safety Shower" and "Eye Wash".
Operation:
1/4-turn, nickel plated brass valves open and close quickly.
Simultaneous Eye Wash and Shower:
Water flows simply by pulling on the triangular handle.
The flow will continue even when the handle is released.
The flow will stop when the handle is returned to its original position.
Eye Wash only:
Water flow is operated by the foot pedal or the hand control. The eye wash will continue to flow when the pedal or hand control is released.
The water flow will stop when the hand control is pulled towards the user or the foot pedal is raised.
10-year warranty.
The water does not shut off automatically, allowing the injured person to have both hands free (to remove their clothing, keep their eyes open, etc.).
TECHNICAL FEATURES
Eye wash and safety shower combination
Ref. 9203
| Supply | F1" |
|---|---|
| Height | 2207mm |
| Length | 660mm |
| Drop height | 2115mm |
| Flow rate | 120 lpm at 3 bar dynamic pressure |
Free-standing eye wash station
Ref. 9201
Free-standing eye wash station with manual and pedal control includes:
Frost-free system as standard.
304 stainless steel basin Ø 250mm, green powder-coated finish.
2 eye wash spray heads fitted with protective caps in shock-resistant green ABS; will eject automatically when activated.
1/4-turn, nickel-plated brass valves open and close quickly.
Water flow is activated by hand or foot control. The eye wash will continue to operate when the hand or foot control is released. The flow stops when the hand control is pulled towards the user or the foot pedal is raised.
Flow rate 20 lpm at 3 bar.
Aerators with stainless steel double filters.
Water supply F1".
Pipework made from galvanised steel, grey powder-coated finish.
Hand and foot controls in green powder-coated galvanised steel.
Fixed to the floor by a triangular brass plate (screws not included.)
Supplied with identification sign for first aid equipment: "Eye Wash".
TECHNICAL FEATURES
Free-standing eye wash station
Ref. 9201
| Height | 1050mm |
|---|---|
| Depth | 500mm |
| Flow rate | 20 lpm |
| Finish | Epoxy |
Ögon/ansiktsdusch med väggfäste för synligt rörmontage.
Alla delar är ytbehandlade med BROEN-LABs POLYCOAT som inte bara gör att ögon-& ansiktsduschen syns väldigt bra, den står även emot de flesta kemikalier, UV blekning och värme. Utrustad med FLOWFIX som gör spolbilden stadig i varierande vattentryck.
•Min. arbetstryck: 1,5 bar
•Väggmontage
•POLYCOAT står emot de flesta kemikalier
•FLOWFIX: 26 l/min
•2-sidig efterlysande skylt, dekal & testkort
•Vikt: ca. 4,5 kg
•Anslutning: inv. DN15 (utanpåliggande)
Artikel nummer: 17 550 009
