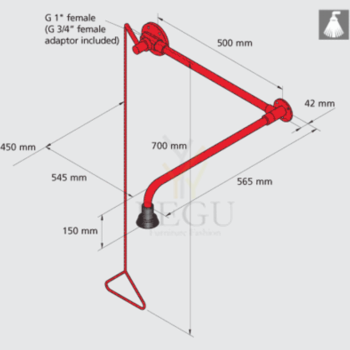

SOS душ, настенное крепление, Над дверью 1/2"
SOS dušš, seinale kinnituv 1/2"
Файлы
Kombinerad kropps- & ögon/ansiktsdusch med skål för väggmontage.
Utrustad med självdränerande duschsil och ögondusch för minskad bakterietillväxt. Den röda POLYCOAT-lackerade rörstommen gör inte bra att första hjälpenutrustningen syns väldigt bra, den står även emot de flesta kemikalier, UV- blekning och värme.
• Kroppsdusch med effektiv spolbild, självdränerande duschsil
• Självdränerande ögon/ansiktsdusch med FLOWFIX 26 lit/min
• POLYCOAT-lackerad rörstomme
• Uppsamlingsskål i rostfritt stål med POLYCOAT
• 3-sidig efterlysande skylt monterad på dragstång, dekal & testkort
• Vikt: ca. 10 kg
• Anslutning: inv. DN20 i toppen eller botten
• Avloppsanslutning: inv. 1 1/4”
Artikelnummer: 17 452 009
RSK nr: 755 9678
Free-standing eye wash station
Ref. 9201
Free-standing eye wash station with manual and pedal control includes:
Frost-free system as standard.
304 stainless steel basin Ø 250mm, green powder-coated finish.
2 eye wash spray heads fitted with protective caps in shock-resistant green ABS; will eject automatically when activated.
1/4-turn, nickel-plated brass valves open and close quickly.
Water flow is activated by hand or foot control. The eye wash will continue to operate when the hand or foot control is released. The flow stops when the hand control is pulled towards the user or the foot pedal is raised.
Flow rate 20 lpm at 3 bar.
Aerators with stainless steel double filters.
Water supply F1".
Pipework made from galvanised steel, grey powder-coated finish.
Hand and foot controls in green powder-coated galvanised steel.
Fixed to the floor by a triangular brass plate (screws not included.)
Supplied with identification sign for first aid equipment: "Eye Wash".
TECHNICAL FEATURES
Free-standing eye wash station
Ref. 9201
Height | 1050mm |
---|---|
Depth | 500mm |
Flow rate | 20 lpm |
Finish | Epoxy |
Thermostatic mixing valve, eye- and body shower, 28 mm comp.
Broen 1-й , душ для промывки глаз, сквозь столешницу, Н/Р сталь
Broen 1-le silmadele 45", hädaabi silmadušš, lääbiviik
Min. working pressure: 1.5 bar for all Eye Showers
No. 27 10 003 10 05 011
Weight: Approx. 0.5 kg
Table mounted eye shower with
a single 45° head, incl. 1.5m inlet hose. Trigger operated including a built-in check valve and FLOWFIX for regulation of water flow (7 l/min).
Min. working pressure: 1,5 bar.
