To be used as the framework/extension of a round grating in tiled floors. Can only be used above the waterproofing.
(Above the waterproofing only)
Technical specifications
(Above the waterproofing only )
Комментарий

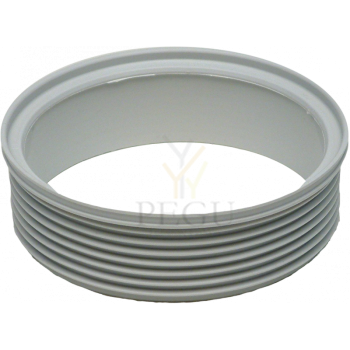

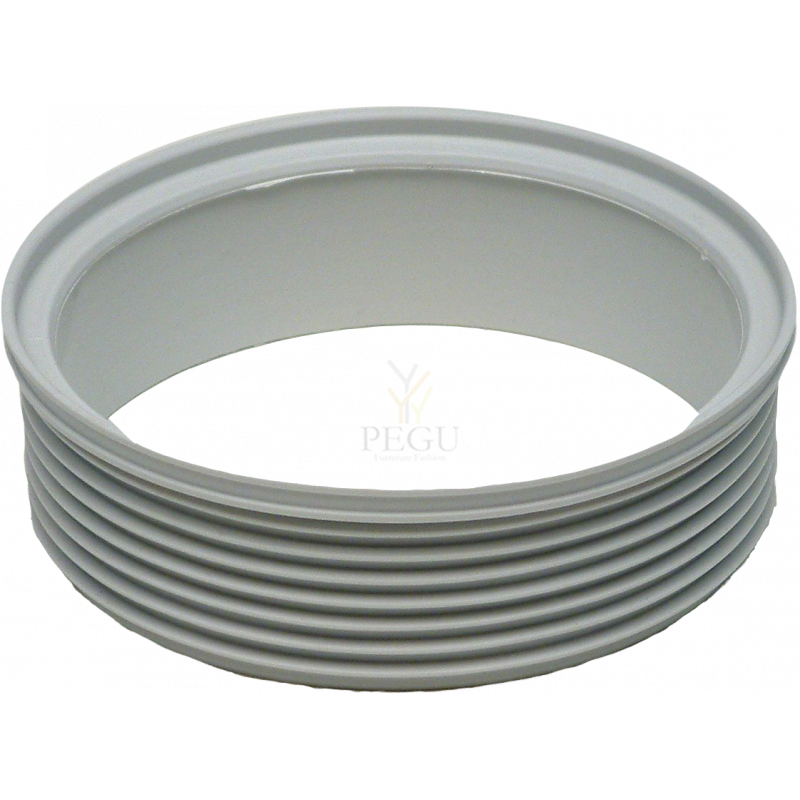

Vieser 51206 удлинняющее кольцо для заливки в бетон под круглую крышки
Vieser 51206 Betoonivalu tõsterõngas ümmargusele kaanele
To be used as the framework/extension of a round grating in tiled floors. Can only be used above the waterproofing.
(Above the waterproofing only)
(Above the waterproofing only )
Vieser One 6004308 угловой трап 75 45° 3x32/40
Vieser One 6004308 Nurgatrapp 75 45° 3x32/40
Suitable for sewerage systems for regular wastewater.
The Vieser One floor drain is part of the Vieser floor drain system.
The floor drain can be used with a Vieser extension rings, waterproofing flange or gratings.
The drain includes three 32/40 mm side inlets that can be opened.
The package package contains the floor drain, protective lid, a water trap, a seal, a clamping ring and a clamping ring installation tool.
The floor drain is compatible with Vieser extension rings, distance rings, waterproofing flange and grating system.
The drain includes three 32/40 mm side inlets that can be opened. The package contains the floor drain, a water trap, a seal, a clamping ring and a clamping ring installation tool.
Vieser 51180 регулирующие кольцо 12mm
Vieser 51180 Tõsterõngas 12mm
The package contains the extension ring, a white lip seal, a grey clamping ring and a white support ring.
Please note:
a grey clamping ring is included in the package. The grey clamping ring is meant to be used with this extension ring type only. A white clamping ring is supplied with all other Vieser extension rings and floor drains.
The white lip seal and grey clamping ring are meant to be used with a low extension ring only, and they are not compatible with other Vieser products.
A low extension ring must always be the uppermost extension ring and it cannot be extended with another extension ring.
Крышка для трапа с пластиковой рамой 51254 Vieser Classic 160x160 mm RST
Trapikaas plastraamiga 51254 Vieser Classic 160x160 mm
Roostevaba teras
For tiled floors on top of the floor drain. Must be installed when tiling the floor. The gap between the floor drain and the square grating may not be sealed.
The package contains a square stainless steel grating and a plastic frame.
Vieser’s drain and cover combination comes with a 10-year system guarantee.
Our stainless steel gratings are fully compatible with
all our drains and extension rings.
(PDF)Vieser round and square grating in tiled floor
(DWG)Vieser round and square grating in tiled floor
The package contains a square stainless steel grating and a plastic frame.
Our stainless steel gratings are fully compatible with
all our drains and extension rings.
Vieser крышка для углового трапа Corner Core 376 x 376 x 526 RST
Vieser nurgatrapikaas Corner Core 376 x 376 x 526 RST
Roostavaba teras
An elegant triangular floor drain grating designed and manufactured in Finland, Vieser Corner Core adds a personal touch and a polished look to your bathroom.
The Vieser floor drain is sold separately.
Choose the Vieser floor drain that is right for your Vieser Corner floor drain system
Vieser’s drain and cover combination comes with a 10-year system guarantee.
(PDF)Vieser Corner floor drain system - Tiling example
(DWG)Vieser Corner floor drain system - Tiling example
The package contains: A triangular, stainless steel Vieser Corner grating, an adjustable steel frame and an installation template.
To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm off-centre of the floor drain. The total adjustment range is 30 mm.
The Vieser floor drain is sold separately.
Choose the Vieser floor drain that is right for your Vieser Corner floor drain system
Vieser крышка для углового трапа 6005080 Corner Modern 376 x 376 x 526 RST
Vieser nurgatrapikaas 6005080 Corner Modern 376 x 376 x 526 RST
Roostavaba teras
An elegant triangular floor drain grating designed and manufactured in Finland, Vieser Corner Modern adds a personal touch and a polished look to your bathroom.
The Vieser floor drain is sold separately.
Choose the Vieser floor drain that is right for your Vieser Corner floor drain system
Vieser’s drain and cover combination comes with a 10-year system guarantee.
(PDF)Vieser Corner floor drain system - Tiling example
(DWG)Vieser Corner floor drain system - Tiling example
The package contains: A triangular, stainless steel Vieser Corner grating, an adjustable steel frame and an installation template.
To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm off-centre of the floor drain. The total adjustment range is 30 mm.
The Vieser floor drain is sold separately.
Choose the Vieser floor drain that is right for your Vieser Corner floor drain system
