Vieser 51907 специальный водяной замок для водяного трапа

Артикул: AKV51907
Бренд:
Единица: шт
Время доставки: 3-7 дней
Цена:
39,65 €
Кол-во: - +

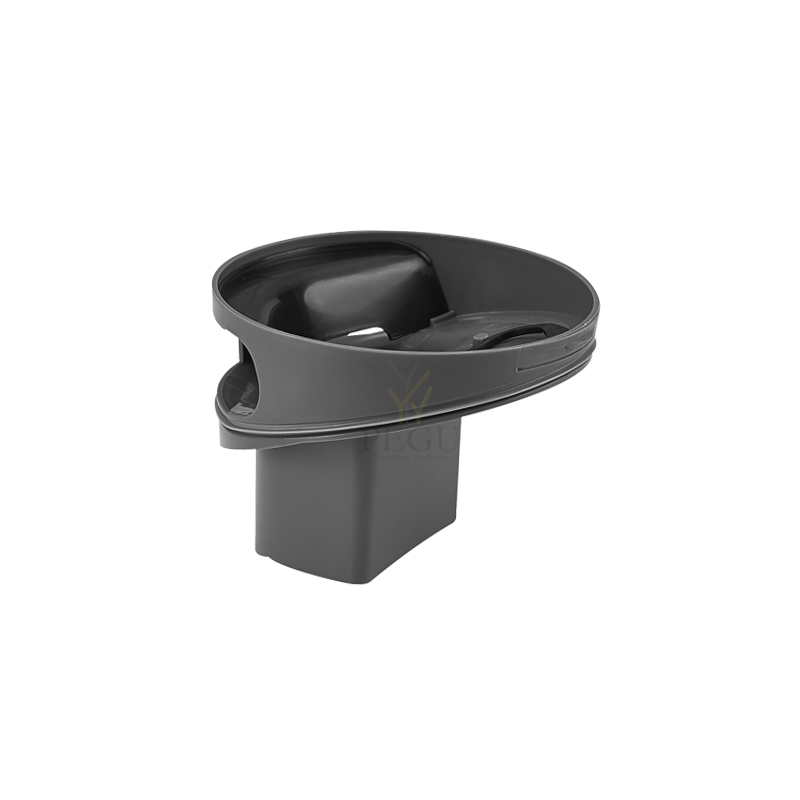

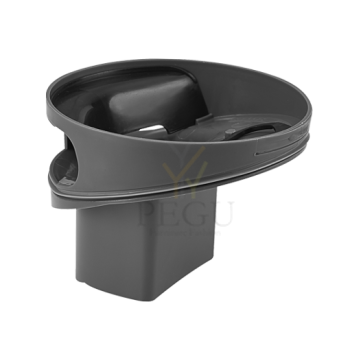

Vieser 51907 специальный водяной замок для водяного трапа

Vieser 51907 põrandatrapi spetsiaalne vesilukk

Vieser water trap for floor drains

HVAC No. 3304916

Can be installed into any Vieser floor drain with a water trap also after initial installation.


Technical specifications

Vieser No.
51907
HVAC No.
3304916
EAN
6418685519078
Package (box/pallet)
8/320
Package dimensions
13,5 x 11 x 13,5 cm
Package weight
0,1 kg
Material
Polypropylene PP
Usage
Can be installed into any Vieser floor drain with a water trap also after initial installation.
General information

The package contains: Vieser water trap for floor drains

Схожие продукты
Водяной трап Н/Р сталь, D75 mm вертикальный, 150x150mm

On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Артикул: AZP-PV 01.D.75.P ,   Время доставки: 3-4 недели
423,00 €

Kaunis design-lattiakaivon kansi. Kansi on valmistettu Suomessa. Tästä näyttävä yksityiskohta kylpyhuoneeseen, kansi toimii myös tarkoituksenmukaisena viemärikantena.

Kansi ja kehyslaatta ovat valmistettu 2 mm paksuisesta ruostumattomasta teräksestä. Kehyksen korkeutta lattialaatoihin nähden voidaan säätää kiinnityslaastin määrällä.

Kannen vesiaukot ovat aina alle 150mm alueella joten se soveltuu kaikkiin 150mm viemärikaivoihin.



Lattiakaivon kannen lisätiedot:

  • Valmistaja: LVI-Pörssi
  • Kehyksen ulkomitat: 197 x 197 mm
  • Korkeus 4 mm
  • Materiaali: ruostumaton teräs (AISI304)
  • Väri: teräs
Артикул: LVI3316788 ,   Время доставки: 7-14 дней
55,92 €

Kaunis design-lattiakaivon kansi. Kansi on valmistettu Suomessa. Tästä näyttävä yksityiskohta kylpyhuoneeseen, kansi toimii myös tarkoituksenmukaisena viemärikantena.

Kansi ja kehyslaatta ovat valmistettu 2 mm paksuisesta ruostumattomasta teräksestä. Kehyksen korkeutta lattialaatoihin nähden voidaan säätää kiinnityslaastin määrällä.

Kannen vesiaukot ovat aina alle 150mm alueella joten se soveltuu kaikkiin 150mm viemärikaivoihin.



Lattiakaivon kannen lisätiedot:

  • Valmistaja: LVI-Pörssi
  • Kehyksen ulkomitat: 197 x 197 mm
  • Korkeus 4 mm
  • Materiaali: ruostumaton teräs (AISI304)
  • Väri: Antrasiitti
Артикул: LVI3316976 ,   Время доставки: 14-21 день
55,92 €

Vieser One 52640 горизонтальный сухой трап 32/40 на ножках

Vieser One 52640 Horisontaalne kuivtrapp 32/40 tugijalgadega

Vieser One untrapped drain DN32/40 with support legs



HVAC No. 3315936

Suitable for sewerage systems for regular wastewater.

The Vieser One untrapped drain is part of the Vieser floor drain system.



The untrapped drain can be used with a Vieser extension ringswaterproofing flange or gratings.



The package contains the untrapped drain, protective lid, support legs, a clamping ring, a seal and a clamping ring installation tool. An untrapped drain does not include a water trap.



Untrapped drain must be connected to a floor drain with a water trap or other form of water trap. Can be used in a sauna, for example. Cannot be used under a shower.



Technical specifications

Vieser No.
52640
HVAC No.
3315936
EAN
6418685526403
Package (box/pallet)
7/84
Package dimensions
24 x 14,5 x 22,5 cm
Package weight
0,54 kg
Material
Polypropylene PP
Usage
Suitable for sewerage systems for regular wastewater.
Flow
0,6l/s
General information

The Vieser One untrapped drain is part of the Vieser floor drain system. The untrapped drain can be used with a Vieser extension ring, waterproofing flange or grating. The package contains the untrapped drain, protective lid, support legs, a clamping ring, a seal and a clamping ring installation tool. An untrapped drain does not include a water trap. Untrapped drain must be connected to a floor drain with a water trap or other form of water trap. Can be used in a sauna, for example. Cannot be used under a shower.



Артикул: AKV52640 ,   Время доставки: 3-7 дней
39,65 €

Крышка для трапа с пластиковой рамой 51241 Vieser Modren 197x197 mm RST

Trapikaas plastraamiga 51241 Vieser Modren 197x197 mm

Roostevaba teras

Vieser Modern - Stainless steel grating with plastic frame – 197×197

HVAC No. 3315952


For tiled floors on top of the floor drain. Must be installed when tiling the floor. The gap between the floor drain and the square grating may not be sealed.

The package contains a square stainless steel grating and a plastic frame.

Vieser’s drain and cover combination comes with a 10-year system guarantee.

Our stainless steel gratings are fully compatible with
all our drains and extension rings.

(PDF)Vieser round and square grating in tiled floor

(DWG)Vieser round and square grating in tiled floor

Technical specifications

Vieser No.
51241
HVAC No.
3315952
EAN
6418685512413
Package (box/pallet)
20/480
Package dimensions
26 x 2 x 22 cm
Package weight
0,6kg
Material
Grating: Stainless steel (AISI 304) Frame: ABS
Durability
200kg
Usage
For tiled floors on top of the floor drain. Must be installed when tiling the floor. The gap between the floor drain and the square grating may not be sealed.
General information

The package contains a square stainless steel grating and a plastic frame.

Our stainless steel gratings are fully compatible with
all our drains and extension rings.



Артикул: AKV51241 ,   Время доставки: 3-7 дней
57,95 €
