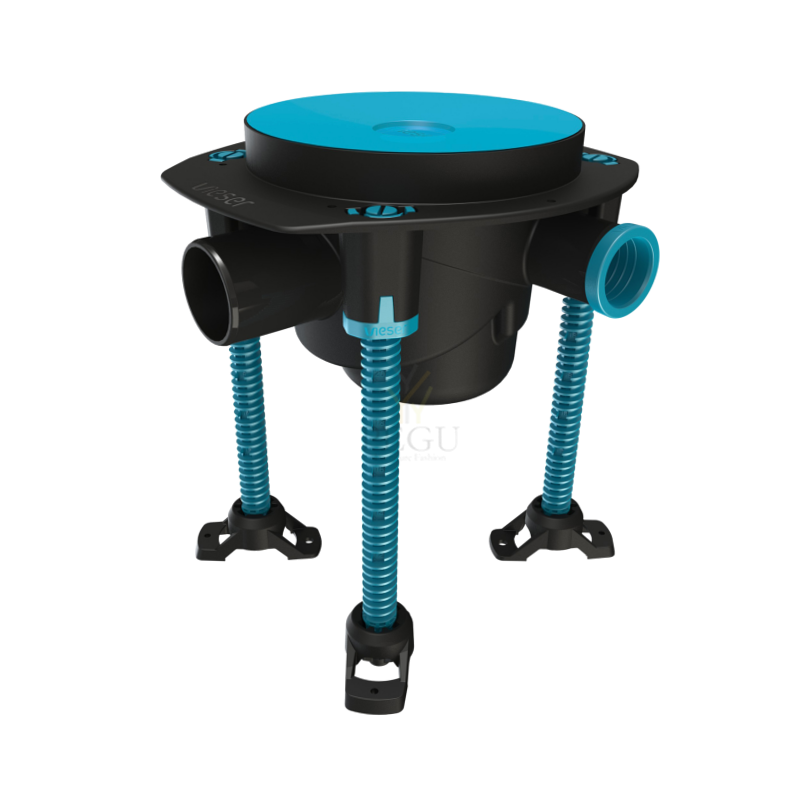

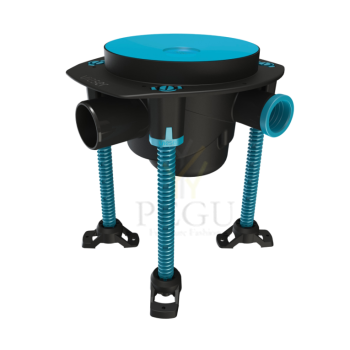

Vieser One 52600 горизонтальный водяной трап 50 3x32/40 с ножками

Бренд:
Единица: шт
Время доставки: 3-7 дней
Цена:
48,57 €
Кол-во: - +
   - или -

Vieser One 52600 горизонтальный водяной трап 50  3x32/40 с ножками

Vieser One 52600 Horisontaaltrapp 50  3x32/40 tugijalgadega



Vieser One floor drain DN 50 3×32/40 with support legs

HVAC No. 3315930
EAN 6418685526007

Suitable for sewerage systems for regular wastewater.

The Vieser One horizontal floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension ringswaterproofing flange or gratings.

The drain includes three 32/40 mm side inlets that can be opened.

The package package contains the floor drain, protective lid, support legs, a water trap, a seal, a clamping ring and a clamping ring installation tool.



Technical specifications

Vieser No.
52600
HVAC No.
3315930
EAN
6418685526007
Package (box/pallet)
12/96
Package dimensions
24 x 14,5 x 22,5 cm
Package weight
0,9 kg
Material
polypropylene PP
Usage
Suitable for sewerage systems for regular wastewater.
Flow
1,2l/s
General information

The Vieser One horizontal floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension ring, waterproofing flange or grating. The drain includes three 32/40 mm side inlets that can be opened.

The package package contains the floor drain, protective lid, support legs, a water trap, a seal, a clamping ring and a clamping ring installation tool.
