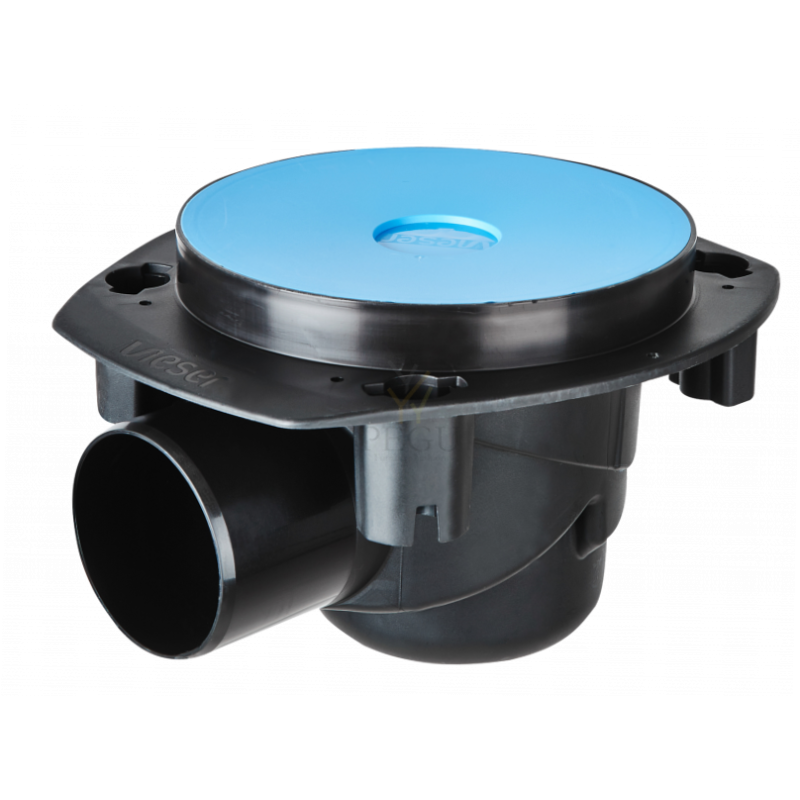

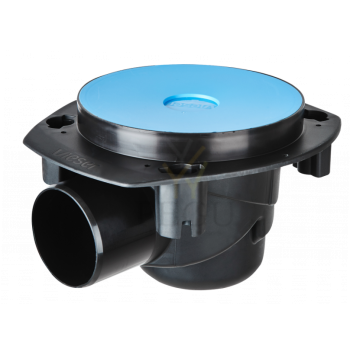

Vieser One 52610 горизонтальный водяной трап 75

Артикул: AKV52610
Бренд:
Единица: шт
Время доставки: 3-7 дней
Цена:
37,20 €
Кол-во: - +

Vieser One 52610 горизонтальный водяной трап 75

Vieser One 52610 Horisontaaltrapp 75

Vieser One floor drain DN75 (without support legs)



Suitable for sewerage systems for regular wastewater.

The Vieser One horizontal floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension ringswaterproofing flange or gratings.

The package package contains the floor drain, protective lid,  a water trap, a seal, a clamping ring and a clamping ring installation tool.



Vieser One floor drain is compatible with Vieser design floor drains:



Схожие продукты

Kaunis design-lattiakaivon kansi. Kansi on valmistettu Suomessa. Tästä näyttävä yksityiskohta kylpyhuoneeseen, kansi toimii myös tarkoituksenmukaisena viemärikantena.

Kansi ja kehyslaatta ovat valmistettu 2 mm paksuisesta ruostumattomasta teräksestä. Kehyksen korkeutta lattialaatoihin nähden voidaan säätää kiinnityslaastin määrällä.

Kannen vesiaukot ovat aina alle 150mm alueella joten se soveltuu kaikkiin 150mm viemärikaivoihin.



Lattiakaivon kannen lisätiedot:

  • Valmistaja: LVI-Pörssi
  • Kehyksen ulkomitat: 197 x 197 mm
  • Korkeus 4 mm
  • Materiaali: ruostumaton teräs (AISI304)
  • Väri: teräs
Артикул: LVI3316951 ,   Время доставки: 7-14 дней ,   Viimistlus:
56,83 €

Vieser One 6004513 горизонтальный трап EXTRA низкий 50 1x32 с ножками

Vieser One 6004513 Horisontaaltrapp EXTRA madal 50 1x32 jalgadega



Vieser One horizontal drain DN50 1x32 extra low with support legs

HVAC No. 3317308


The lowest floor drain on the market 69 mm

The Vieser One horizontal extra low floor drain is the lowest floor drain on the market, with a flow rate of 1.2 l/s The low structure is a significant benefit in both renovations and new construction.

Thanks to the efficient flow rate, the drain is suitable for use in both showers and bathtubs, and it is compatible with all Vieser drain covers and extension rings. The drain has one 32 mm side inlet.

Water trap based on membrane technology

The water trap is based on innovative membrane technology. The traditional water space is replaced with an airtight membrane water trap that opens as the water flows and closes when it stops, preventing sewer gases from entering the room.

The membrane water trap, made from silicone rubber, has a long life and functions reliably in different temperatures and conditions.

Hygienic and quiet

The membrane water trap of the extra low drain is very hygienic, as it does not collect impurities. Dirt is swept away with the water flow. If necessary, the water trap can be removed and lifted up.

The waterless membrane trap is silent in use. It is also an excellent option for spaces that experience problems with the water trap drying out.

The Vieser One floor drain is compatible with Vieser’s traditional gratings and Vieser’s design covers:

The watertightness and proper functioning of Vieser floor drains have been proven through rigorous tests according to the standard EN 1253-2, on which the type approvals granted by RISE are also based.

The package includes the drain, water trap, casting shield, clamping ring, support legs and a tool for installing the clamping ring.



Technical specifications

Vieser No.
6004513
HVAC No.
3317308
EAN
6430066742332
Package (box/pallet)
10/80
Package dimensions
35 x 25 x 10 cm
Package weight
0,8 kg
Material
Polypropylene (PP)
Usage
Suitable for regular residential wastewater sewage systems in accordance with the Finnish Ministry of the Environment’s decree on buildings’ water and sewer systems.
Flow
1,2 l/s
General information

The floor drain is compatible with Vieser extension rings, distance rings, membrane flange and gratings/covers. The drain has one 32 mm side inlet. The package includes the drain, water trap, casting shield, clamping ring, support legs and a tool for installing the clamping ring.








Артикул: AKV6004513 ,   Время доставки: 3-7 дней
53,73 €

Vieser One 52641 горизонтальный сухой трап 32/40

Vieser One 52641 Horisontaalne kuivtrapp 32/40



Vieser One untrapped drain DN32/40 without support legs



HVAC No. 3315942



Suitable for sewerage systems for regular wastewater.

The Vieser One untrapped drain is part of the Vieser floor drain system.

The untrapped drain can be used with a Vieser extension ringswaterproofing flange or gratings.

The package contains the untrapped drain, protective lid, a clamping ring, a seal and a clamping ring installation tool.

An untrapped drain does not include a water trap. Untrapped drain must be connected to a floor drain with a water trap or other form of water trap. Can be used in a sauna, for example. Cannot be used under a shower.

You can download water proofing pictures as a PDF & DWG file.

Vieser’s drain and cover combination comes with a 10-year system guarantee.

Vieser untrapped drain is compatible with Vieser design floor drains:





Technical specifications

Vieser No.
52641
HVAC No.
3315942
EAN
6418685526410
Package (box/pallet)
15/180
Package dimensions
24 x 14,5 x 22,5 cm
Package weight
0,54 kg
Material
Polypropylene PP
Usage
Suitable for sewerage systems for regular wastewater.
Flow
0,6l/s
General information

The Vieser One untrapped drain is part of the Vieser floor drain system. The untrapped drain can be used with a Vieser extension ring, waterproofing flange or grating.

The package contains the untrapped drain, protective lid, a clamping ring, a seal and a clamping ring installation tool. An untrapped drain does not include a water trap. Untrapped drain must be connected to a floor drain with a water trap or other form of water trap. Can be used in a sauna, for example. Cannot be used under a shower.

Артикул: AKV52641 ,   Время доставки: 3-7 дней
25,83 €

Vieser One 52630 вертикальный трап 75  3x32/40

Vieser One 52630 Vertikaaltrapp 75  3x32/40

Vieser One vertical floor drain DN 75 3×32/40

HVAC No. 3315935


Suitable for sewerage systems for regular wastewater.

The Vieser One vertical floor drain is part of the Vieser floor drain system.


The floor drain can be used with a Vieser extension ringswaterproofing flange or gratings.

The drain includes three 32/40 mm side inlets that can be opened.

The package contains the floor drain,  a water trap, a seal, a clamping ring and a clamping ring installation tool.



Technical specifications

Vieser No.
52630
HVAC No.
3315935
EAN
6418685526304
Package (box/pallet)
15/120
Package dimensions
20 x 25 x 20 cm
Package weight
0,65 kg
Material
Polypropylene PP
Usage
Suitable for sewerage systems for regular wastewater.
Flow
2,3l/s
General information

The floor drain is compatible with Vieser extension rings, distance rings, waterproofing flange and grating system.

The drain includes three 32/40 mm side inlets that can be opened. The package contains the floor drain, a water trap, a seal, a clamping ring and a clamping ring installation tool.









Артикул: AKV52630 ,   Время доставки: 3-7 дней
43,40 €

Vieser 51907 специальный водяной замок для водяного трапа

Vieser 51907 põrandatrapi spetsiaalne vesilukk

Vieser water trap for floor drains

HVAC No. 3304916

Can be installed into any Vieser floor drain with a water trap also after initial installation.


Technical specifications

Vieser No.
51907
HVAC No.
3304916
EAN
6418685519078
Package (box/pallet)
8/320
Package dimensions
13,5 x 11 x 13,5 cm
Package weight
0,1 kg
Material
Polypropylene PP
Usage
Can be installed into any Vieser floor drain with a water trap also after initial installation.
General information

The package contains: Vieser water trap for floor drains

Артикул: AKV51907 ,   Время доставки: 3-7 дней
40,30 €
