WC рама с бачком и сливной системой , антивандальная с пластиной из Н/Р стали

Артикул: AZP-BSAZ 5
Бренд:
Единица: шт
Время доставки: 3-4 недели
Цена:
1055,00 €
Kuumakse alates: 90,68 €
Кол-во: - +
WC рама с бачком и сливной системой , антивандальная с пластиной из Н/Р стали


BSAZ 5

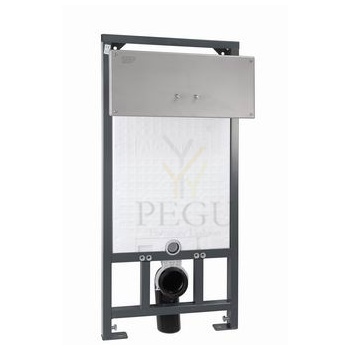

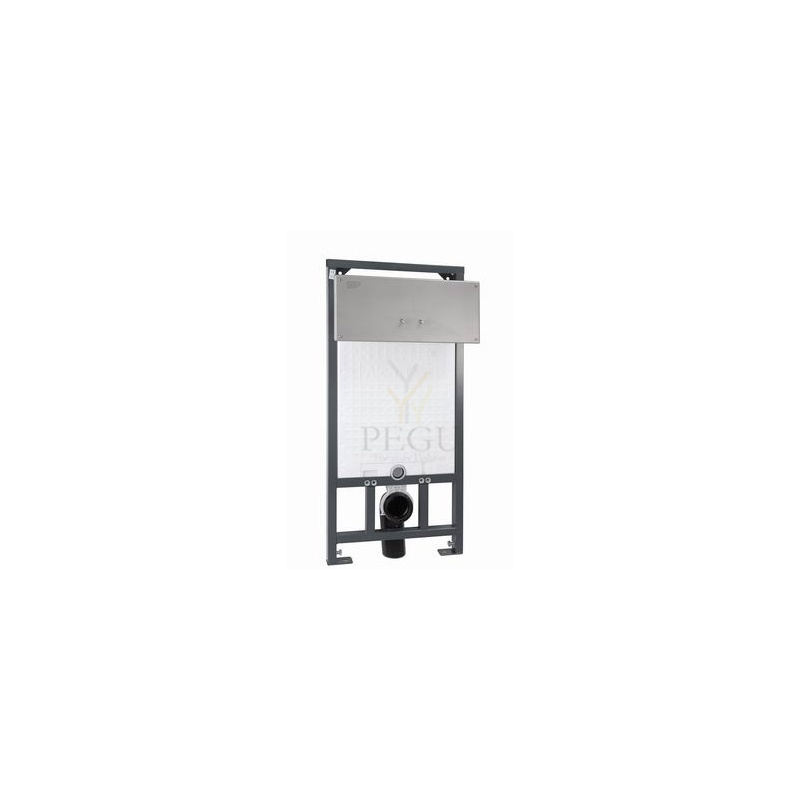

Wall module construction for WC with vandal-resistant st.steel cover






BSAZ 5 is a wall module for wall mounted toilets equipped with anti-vandal stainless steel cover – with resistant stainless safety buttons. The cover is screwed by security bolts therefore it cannot be dismounted without special tools. The system is suitable for spaces where toilet flushing from a cistern is required but where, on the other hand, there is a threat of damaging of usual plastic covers. The robust anti-vandal stainless cover contains stainless control buttons resistant to damage (unlike the usual plastic buttons).



The cover of BSAZ 5 is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).








Version types
BSAZ 5 - Wall module construction for WC with vandal-resistant st.steel cover


Basic technical information

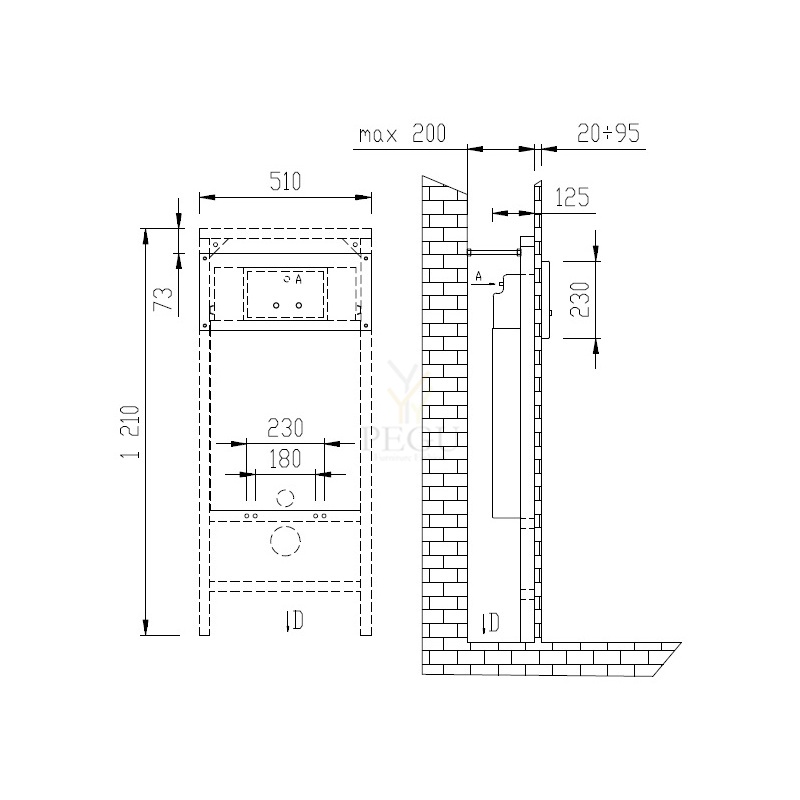

Dimensions of wall module: (1000–1200) × 510 × (160–200) mm
Dimensions of st.steel cover: 510 × 230 × 30 mm
Water inlet: G 1/2"
Outlet: DN 100


Requirements for setting up the construction
  1. Space for mounting the wall module
  2. Water inlet G 1/2"
  3. Waste pipe for outlet connection (DN 100)


Complete delivery
  • wall module with cistern
  • st.steel cover with vandal-proof buttons




BSAZ 5

Антивандальная системы смыва для унитазов






BSAZ 5 BSAZ 01 Настенный модуль для туалетов с антивандальной панелью из нержавеющей стали

BSAZ 5 представляет собой настенный модуль для туалетов с антивандальной панелью и безопасными кнопками из нержавеющей стали. Панель крепится при помощи защитных болтов и не может быть демонтирована без специальных инструментов. Система подходит для помещений, где с одной стороны требуется система смыва туалета из бака, и одновременно существует угроза повреждения обычных пластиковых панелей. Прочная антивандальная панель из нержавеющей стали имеет устойчивые к повреждениям кнопки управления (в отличие от обычных пластиковых кнопок).

Панель BSAZ 5 изготовлена из нержавеющей стали AISI 304. Возможно изготовление на заказ из других материалов (например, AISI 316). Для обслуживания мы рекомендуем моющие средства WURTH, которые гарантируют высокое качество очистки (№ 893 121 1) и ухода (№ 0893 121 K) за материалом.




Типовые варианты
BSAZ 5 - Настенный модуль для туалетов с антивандальной панелью из нержавеющей стали


Основные технические характеристики
Размеры настенного модуля: (1000–1200) × 510 × (160–200) мм
Размеры панели из нержавеющей стали: 510 × 230 × 30 мм
Вход воды: G 1/2"
Выход воды: DN 100


Требования к установке
  1. Ниша для монтажа настенного модуля
  2. Вход воды G 1/2 "
  3. Водосточная труба для соединения с выходом (DN 100)


Комплектация
  • настенный модуль с баком
  • панель из нержавеющей стали с антивандальными кнопками

Совместимые продукты

AUM 026 INV is a stainless steel, partly wall-built in washbasin, containing the combination of a liquid soap dispenser, water tap and hand dryer in a small space. The washbasin is adjusted to be used also by wheelchair persons – it is shallow, completed with handles, the waste is hidden behind the wall. Controlled by durable piezo-pushbuttons, electronically controlled turn-off (the period of water running is settable by the owner). The washbasin is to be mounted through the wall, all technology components are behind the wall, and thus cannot be damaged by users (anti-vandal design).

A wall-hanged version may be supplied to order, or a version without any of the functions (e.g. onlz water plus soap, or water plus dryer). The washbasin is made of AISI 304 stainless steel. A recommended cleaning agent for stainless products maintenance: Würth – preservation (order no. 0893 121 K), cleaning (order no. 893 121 1).

Basic technical information
Power supply: 230 V, 50 Hz
IP protection: IP 55
Dimensions (visible from outside): 800 x 800 x 363 mm
Required thickness of wall: min. 100 mm
Outlet: d = 40 mm

Requirements for setting up the construction
  1. Opening in the wal 740 x 740 mm
  2. Prepared el. supply cable 3C x 1,5 s 230 V, 50 Hz
  3. Prepared water outlet according to technical scheme


Complete delivery
  • Stainless-steel washbasin with handles
  • Electronic hand dryer
  • Electronic soap dispenser
  • Electronic water tap
  • Through-wall frame with bolts
  • Waste with a stink trap
  • 230V / 12V source for the electronics

Артикул: AZP-AUM 026.TV INV ,   Время доставки: 3-4 недели
4300,00 €

Антивандальный унитаз INVA Н/Р сталь

AUZ 08 INV is a stainless-steel WC in matt design for the disabled. It is a stainless-steel toilet to stand on the floor at the wall. The drain is directed backwards (the bottom drain version AUZ 02 INV). The closet is based on the standard AUZ 08, which is heightened and lengthened to fulfil the directive regarding products for disabled persons. To increase the user comfort, the seating part is provided with a seat from hardened plastic. The closet includes a removable backrest recommended by the League for the rights of the wheelchair bound.



The standing WC is suitable for places where the common closet cannot be attached to the side wall, because of a thin bearing particle, for example.



It is suitable to supplement the closet with an automatic pressure-water flushing device with delayed flushing AUZ 3 INV (suitable for the disabled) or any flushing device with a cistern.

Basic technical information
Water inlet: d= 34 - 50 mm
Min. water flow: 70 l/min
Outlet: d= 90 mm
Weight: 27 kg

Complete delivery
  • Stainless steel closet
  • Plastic seat
  • Anchoring material
  • Stainless-steel backrest
Артикул: AZP-AUZ 08 INV ,   Время доставки: 3-4 недели
2629,00 €
Водяной трап Н/Р сталь, D75 mm вертикальный, 150x150mm

On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Артикул: AZP-PV 01.D.75.P ,   Время доставки: 3-4 недели
423,00 €
