448 x 1348 x 220 mm
1 paper roll / 48 l

• Combination consisting of a sensor paper roll dispenser (mains-operated) and a waste bin in robust, germ-reducing and easy-care stainless steel (AISI 304).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
  Further available surfaces: see below.
• Paper roll dispenser with touch-free operated, capacitive sensor technology, sensor distance approx. 3.5 cm. Paper length and idle time adjustable.
  Mains-operated 230 V / 50 Hz; power rating 7 Watt; mains cable on site. TÜV/GS-tested and certified.
• Designed for one paper roll with dimensions:
  Width 215 mm, outer diameter max. 180 mm, inner diameter 50 mm.
• Inspection slot to indicate fill level, residual roll function allows a reserve roll to be inserted before residual roll is completely used up.
• Waste bin equipped with removable mesh basket.
  Capacity approx. 48 l.
• Accessible through lockable doors.
• Keyed alike cylinder locks in corrosion-resistant zinc die-casting.
• Wear parts and front panels can be replaced as modules.
• Installation dimensions: 450 x 1350 x 210 mm (when fully fitted).
• Mounting: With six screws in wall opening through fixing holes in the side walls.
• Delivery includes fixing material and first fill with one paper roll.

• Weight (in kg): 25,8

Duhsivoolik 1/2"-1/2", metall 1750mm , kroom

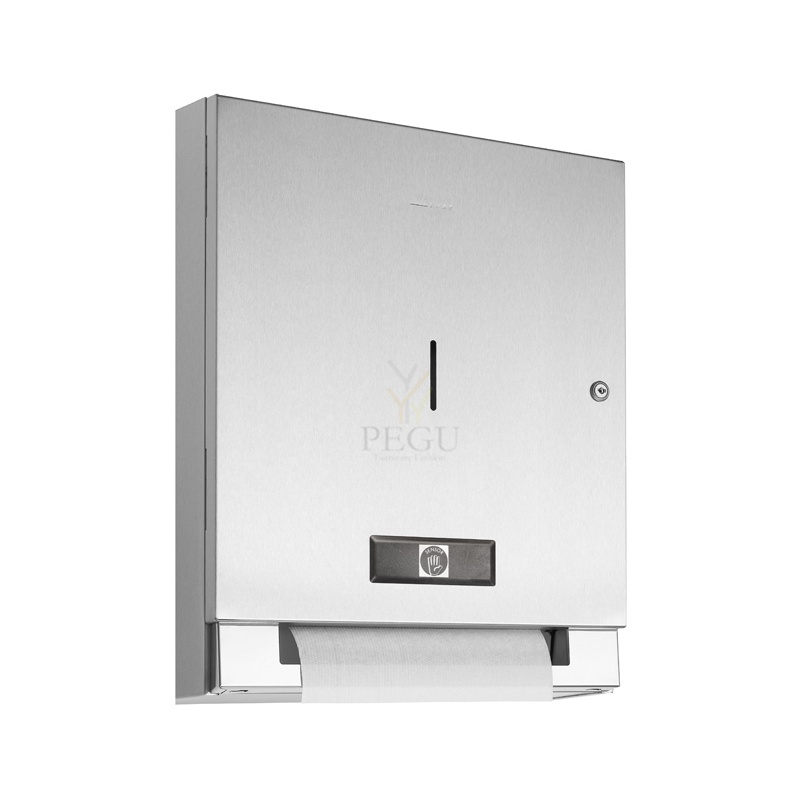

350 x 448 x 210 mm
1 paper roll

• Sensor paper roll dispenser, mains-operated, in robust, germ-reducing and easy-care stainless steel (AISI 304).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed with tapered glossy surface at the bottom.
  Further available surfaces: see below.
• With touch-free operated, capacitive sensor technology, sensor distance approx. 3.5 cm. Paper length and idle time adjustable.
  Mains-operated 230 V / 50 Hz; power rating 7 Watt; mains cable on site. TÜV/GS-tested and certified.
• Designed for one paper roll with dimensions: Width 215 mm, outer diameter max. 180 mm, inner diameter 50 mm.
• Inspection slot to indicate fill level, residual roll function allows a reserve roll to be inserted before residual roll is completely used up.
• Accessible for refilling through lockable door.
• Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
• Wear parts and front panels can be replaced as modules.
• Installation dimensions: 352 x 450 x 180 mm
• Mounting: With four screws in wall opening through fixing holes in the side walls.
• Delivery includes fixing material and first fill with one paper roll.

• Weight (in kg): 10,3

298 x 298 x 121 mm
950 ml soap bottle / 950 ml tank disinfectant / 950 ml bottle lotion

• Sensor combination consisting of a sensor liquid soap-, disinfectant- and lotion dispenser in robust, germ-reducing and easy-care stainless steel (AISI 316L).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
  Further available surfaces: see below.
• Sensor soap or lotion dispenser with EWAR® eModuletouch-free operated and non-drip soap and lotion pump.
  Designed for standard 950 ml disposable bottles of liquid soap or lotion. Also refillable with large container using the plug-in tank as an option
• Sensor disinfectant dispenser with EWAR® eModule touch-free operated disinfectant pump with 950 ml tank arranged in the middle. Designed for standard disinfectants.
• Note: Not approved for medical areas.
• Inspection slots to indicate fill level.
• Accessible for refilling through lockable, hinged housing.
• Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
• eModule battery-powered with two 1.5 V Baby/LR14 batteries.
  Power supply available as an option.
• Wear parts can be replaced as modules.
• Mounting: With four screws through key holes and one optional anti-theft hole in the back wall.
• Delivery includes fixing material, batteries and first fill with soap and lotion.

• Weight (in kg): 6,4
